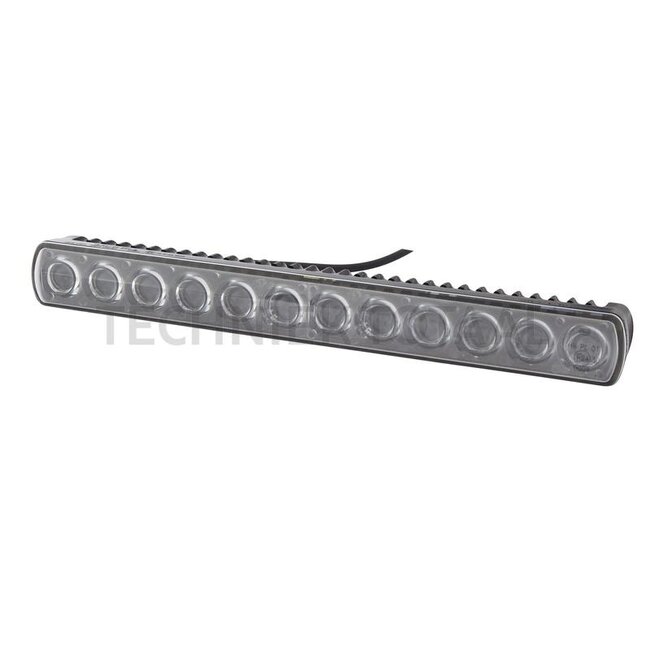

HELLA LED work light/light bar
Replaces: 1FJ 958 040-082
Technical data:
- Mounting size (mm): 57
- Bulb: LED
- Cable length (mm): 2500
- Dimensions W x H x D (mm): 408 x 40 x 67
- Housing colour: Black
- Power consumption (W): 25
- Installation location: Left/right
- Protection class: IP6K7 / IP6K9K
- Current (A): 2,9 (12 V) / 1,45 (24 V)
- Mounting type: Vertical
- Nominal voltage (V): 12 / 24
- Connection: Open cable ends
- Colour: Transparent
- Type: LED Light Bar 350
- Bulbs included: Yes
- No. of LEDs: 12
- Theoretical luminous flux (lm): -
- Light colour (K): 5000
- Number of pins: 2
- Test mark: E24 0009; ECE
- Effective luminous flux (lm): ≈ 1300
- Light aperture (mm): 345 x 45
- Voltage range (V): 9 - 33
- Operating temperature (°C): -40 / +50
- Material: Housing: plastic
- Form: Rectangular
- Additional information: • With mounting bracket • With bracket • Electromagnetic compatibility (EMC)
- Light function: Far-reaching illumination
