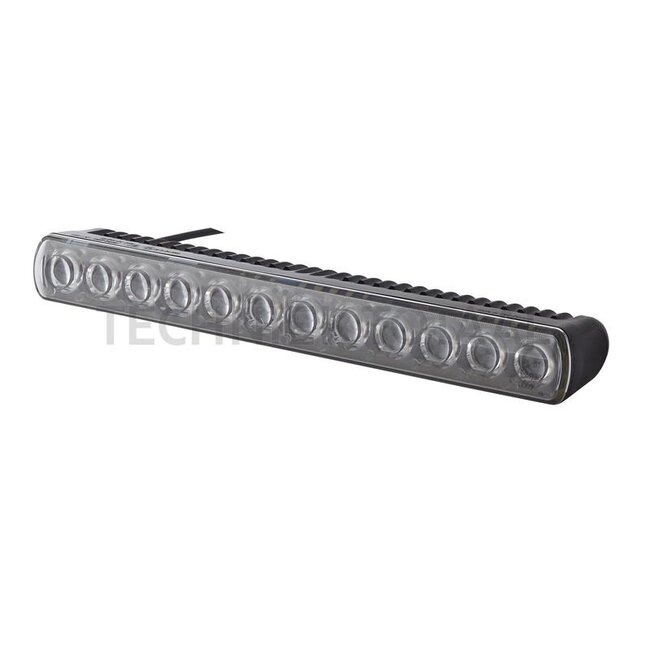

HELLA LED work light/light bar
Replaces: 1FJ 958 040-001
Technical data:
- Mounting size (mm): 56
- Test mark: E24 0008, ECE
- Operating temperature (°C): -40 / +50
- Power consumption (W): 25
- Number of pins: 2
- Material: Housing: plastic
- Type: LED Light Bar 350
- No. of LEDs: 12
- Bulbs included: Yes
- Nominal voltage (V): 12 / 24
- Housing colour: Black
- Effective luminous flux (lm): ≈ 1500
- Connection: Open cable ends
- Voltage range (V): 9 - 33
- Light colour (K): 5000
- Form: Rectangular
- Mounting type: Vertical/hanging
- Colour: Transparent

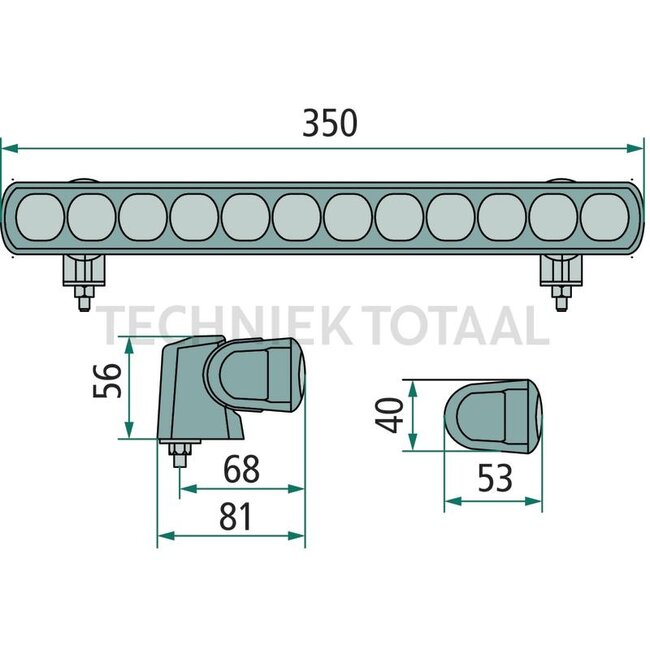

- Dimensions W x H x D (mm): 350 x 40 x 81
- Installation location: Left/right
- Current (A): 2,08 (12 V) / 1,04 (24 V)
- Cable length (mm): 2500
- Bulb: LED
- Protection class: IP6K7 / IP6K9K
- Additional information: • With bracket • With mounting bracket
- Light aperture (mm): 345 x 45
- Theoretical luminous flux (lm): -
- Light function: Far-reaching illumination
