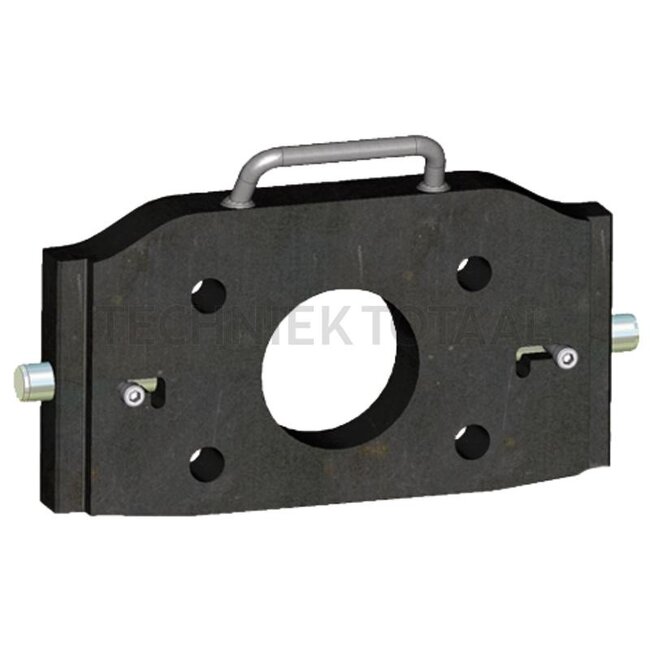

Walterscheid Adapter plate

Replaces: 8004529

Technical data:

• Description: The coupling plate is a height-adjustable sliding plate that can only be operated in hitch supports with locking rails. It is prepared for attaching flange couplings or other connecting devices with a flange. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable, forged material, suitable for a wide range of couplings that can be flange-mounted
• Hole pattern (mm): 160 x 100
• Detent pin Ø (mm): 22
• Load capacity (kg): 2800
• D-value (kN): 89,3
• Central hole (mm): 95
• Rail width (mm): 322
• Colour: Black
• Assembly notes: The vehicle part support distance (from the centre of the coupling plate to the centre of the coupling point) may be up to 222 mm.
• Hole (mm): M21
• Guide width (mm): 30

Suitable for:

Claas: Atles 915, Atles 925, Atles 926, Atles 935, Atles 936, Atles 946, Axion 920, Axion 930, Axion 940, Axion 950

Deutz-Fahr: Agrotron 230, Agrotron 260, Agrotron 230 MK3, Agrotron 260 MK3, Agrotron New 210, Agrotron New 215, Agrotron New 235, Agrotron New 265, Agrotron X710, Agrotron X720

JCB: Fastrac 8250

Lamborghini: R8.215, R8.230, R8.265, R8.270, Traction 265, Victory 230, Victory 260

Massey Ferguson: 6485 Tier 3, 6490 Tier 3, 6495 Tier 3, 6497 Tier 3, 6499 Tier 3, 8170, 8180, 8210, 8220, 8240, 8250, 8260, 8270, 8280

McCormick: ZTX 230, ZTX 260, ZTX 280

Renault: Ares 715, Ares 725, Ares 735, Ares 815, Ares 825, Ares 836, Atles 915, Atles 925, Atles 935

Same: Diamond 215, Diamond 230, Diamond 260, Diamond 265, Diamond 270
