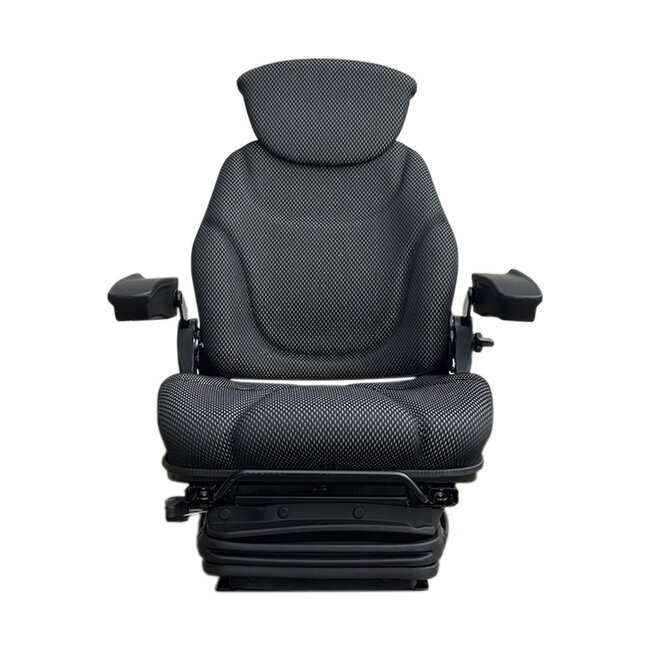

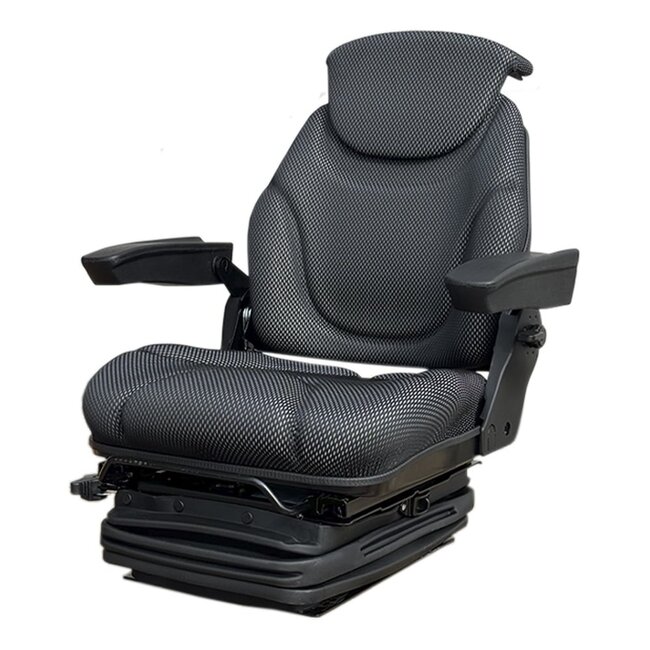

This air-suspended tractor seat is designed as a comfortable work seat with fabric upholstery and wide air suspension. The seat is equipped with an integrated 12V/24V air compressor and offers 100 mm suspension travel combined with a hydraulic shock absorber. Weight adjustment is manual from 50 to 130 kg. The seat height is continuously adjustable over 80 mm and the backrest can be adjusted 30° backward and 85° forward. In addition, the seat features horizontal damping in the longitudinal direction and mechanical lumbar support. The armrests are height-adjustable and foldable. This air-suspended comfort seat complies with applicable EU standards.

• Version: air-suspended comfort seat
• Suspension: air-suspended
• Integrated air compressor: 12V / 24V
• Upholstery type: fabric, black
• Suspension travel: 100 mm
• Suspension system: air suspension with hydraulic shock absorber
• Weight adjustment: manual, 50–130 kg
• Height adjustment: continuous, 80 mm
• Fore-and-aft adjustment (sliding base): 190 mm, lockable, 15 mm increments
• Backrest adjustment: 30° backward / 85° forward
• Horizontal suspension: longitudinal damper, 35 mm
• Lumbar support: mechanical
• Armrests: yes, height-adjustable and foldable
• Armrest length: 260 mm
• Seat width: 480 mm
• Track width: 260 mm
• Seat contact switch: optional
• Joystick console: optional
• Horizontal suspension in transverse direction: optional
• Seat belt system: optional
• Seat heating: optional
• Rotation: optional

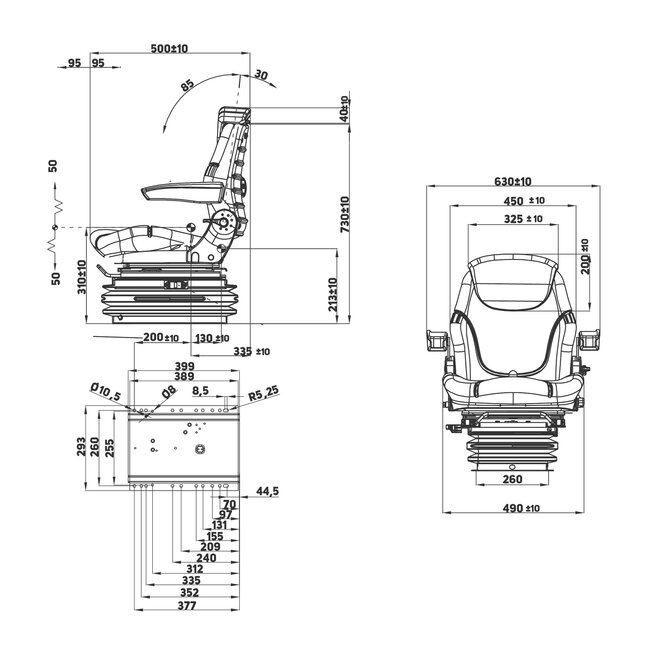

• Length: 579 mm
• Height: 685–745 mm
• Certificates: EU 1322/2014, ECE R16.06

Compatible with:

• Case IH: Serie B-Familie (743 XL, 745 XL, 844 XL, 845 XL, 856), Serie C-Familie (946, 956, 1046, 1055, 1056), Serie CS (CS 48, CS 58, CS 63, CS 68, CS 75, CS 78, CS 80, CS 85 Pro, CS 86, CS 90, CS 94, CS 95 Pro, CS 100, CS 105 Pro, CS 110, CS 120, CS 130, CS 150), Serie CVX (CVX 120, CVX 130, CVX 140, CVX 150, CVX 160, CVX 170, CVX 175, CVX 195, CVX 1135, CVX 1145, CVX 1155, CVX 1170, CVX 1190, CVX 1195), Serie CX (CX 50, CX 60, CX 70, CX 80, CX 90, CX 100), Serie D-Familie (1246, 1255, 1455), Serie Farmall (65A, 75A, 85A, 95A, 115A), Serie Magnum (225, 250, 255, 280, 310, 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250, 8910, 8920, 8930, 8940, 8950), Serie Maxxum (100, 110, 115, 120, 125, 130, 135, 140, 150, 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250), Serie MX (100–285), Serie MXM (120–190), Serie MXU (100–135), Serie Puma (115–240), Serie Puma CVX (130–230), Serie Steiger (9310–9390), Serie STX (275, 325)
