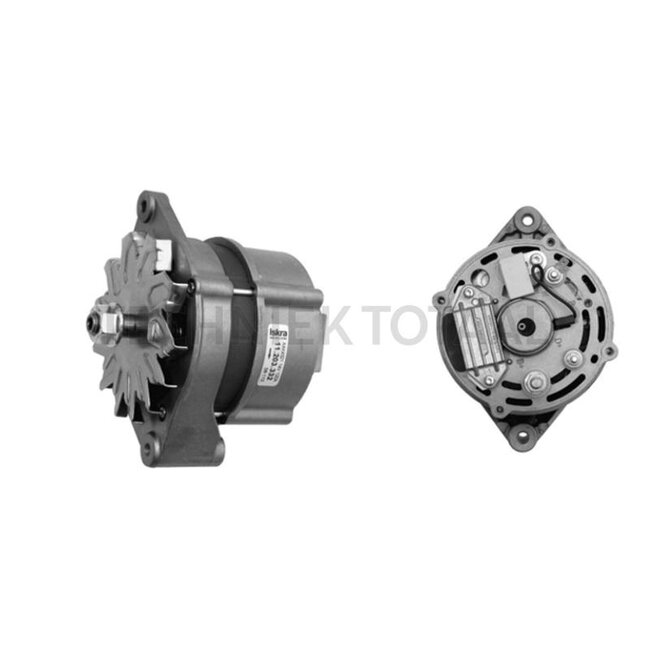

MAHLE Alternator 14 V / 120 A

Replaces: MG 313

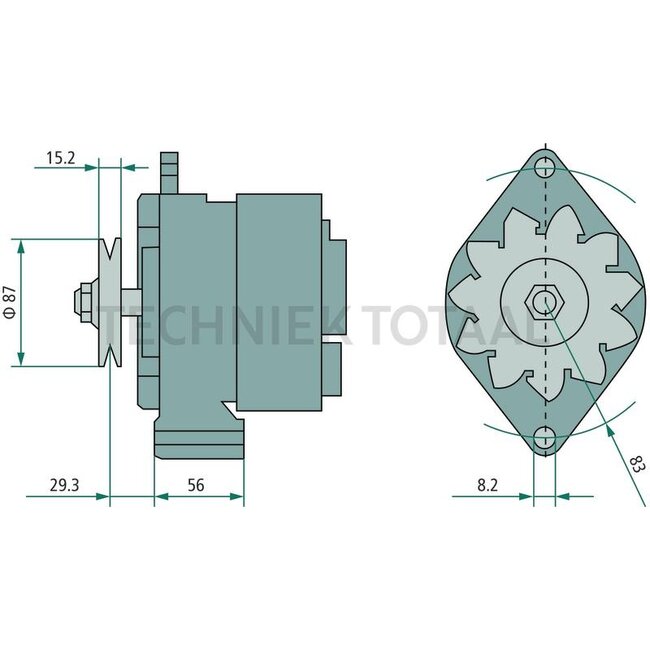

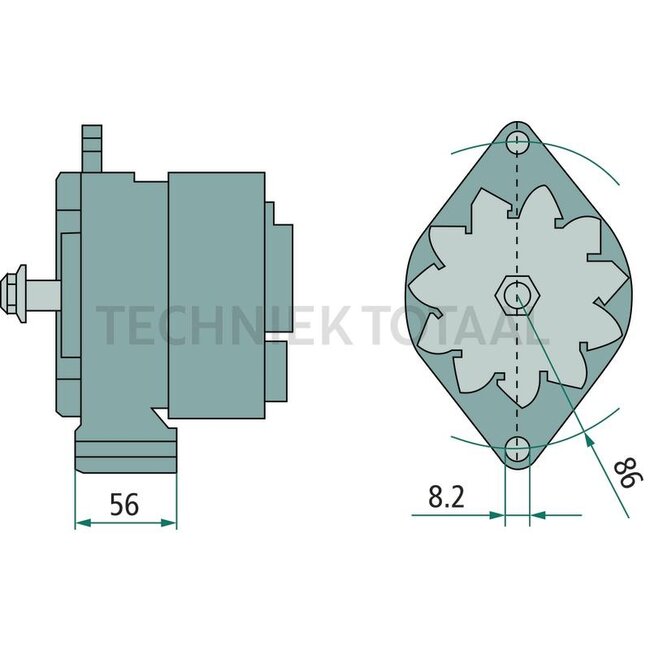

Technical data:

• Nominal voltage (V): 14
• Installation angle (°): 0
• Flange size (mm): 56,0
• Additional information: Dust-tight, with fan, with W connection
• Nominal values (V / A): 14 / 120
• Mounting hole Ø / R (mm): 8,2 / 86,0
• Charging current (A): 120
• Belt width (mm) / type: -
• Mounting L / d / R (mm): 56,0 / 8,2 / 86,0
• Form: B
• Pulley Ø (mm): -
• Direction of rotation: ↻

Suitable for:

Case IH: CS 68 (3/99-3/04), CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (1/99-1/04), CS 80 (1/06-), CS 80 Pro (10/07-), CS 85 Pro (1/08-), CS 86 (1/99-1/04), CS 90 (1/06-), CS 90 Pro (10/07-), CS 94 (1/99-1/04), CS 95 Pro (1/08-), CS 100 (1/06-), CS 100 (4/00-7/03), CS 100 (10/07-), CS 105 Pro (1/08-), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), CVX 120, CVX 130, CVX 150 (7/00-5/03), CVX 170, CVX 1135, CVX 1145, CVX 1155, CVX 1170, CVX 1190

John Deere: 1133, 1144, 1155, 1157, 1158, 1166, 1169, 1170, 1174, 1177, 1185, 1188, 820, 920, 1020, 1120, 2020, 2120, 3120, 2254, 2256, 2258, 2264, 2266, 830, 930, 1030, 1130, 1530, 1630, 1830, 2030, 2130, 3030, 3130, 1035 (nur für Spanien), 1635 (nur für Spanien), 2035 (nur für Spanien), 2135 (nur für Spanien), 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3140, 3340 (nur für Spanien), 3640, 1745F, 1845F, 2345F, 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3150, 3350, 925, 932, 935, 942, 945, 952, 955, 965, 975, 985, 1032, 1042, 1052, 1065, 1068H, 1072, 1075, 1085, 2440, 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, SE6100, SE6200, SE6300, SE6400, 6610, 6710, 6810, 6910, 6650, 6750, 6850, 6950, 7200, 7300, 7400, 7500, 7700, 7800, C 670, T550, T560, T660, T670, W540, W550, W650, W660, 2054, 2056, 2058, 2064, 2066

New Holland: TVT135, TVT145, TVT155, TVT170, TVT190

Steyr: 9080 MT, 9085 MT, 9090 MT, 9095 MT, 9100 MT, 9105 MT, 9105 (4/00-7/03), 9105 (4/96-4/00), 9115 (4/00-7/03), 9115 (4/96-4/00), 9125 (4/00-7/03), 9125 (4/96-4/00), 9145 (4/00-7/03), 9145 (4/96-4/00), 6135 CVT (5/03-), 6145 CVT (5/03-), 6155 CVT (5/03-), 6170 CVT (5/03-), 6190 CVT (5/03-), CVT 120 (5/01-), CVT 120 (7/00-5/03), CVT 130 (5/01-), CVT 130 (7/00-5/03), CVT 150 (5/01-), CVT 150 (7/00-5/03), CVT 170 (5/01-), CVT 170 (7/00-5/03), M 968 (3/99-3/04), M 975 (3/99-3/04), 9080 M, 9090 M, 9100 M, M 9078 (1/99-1/04), M 9086 (1/99-1/04), M9094 (1/99-1/04)
