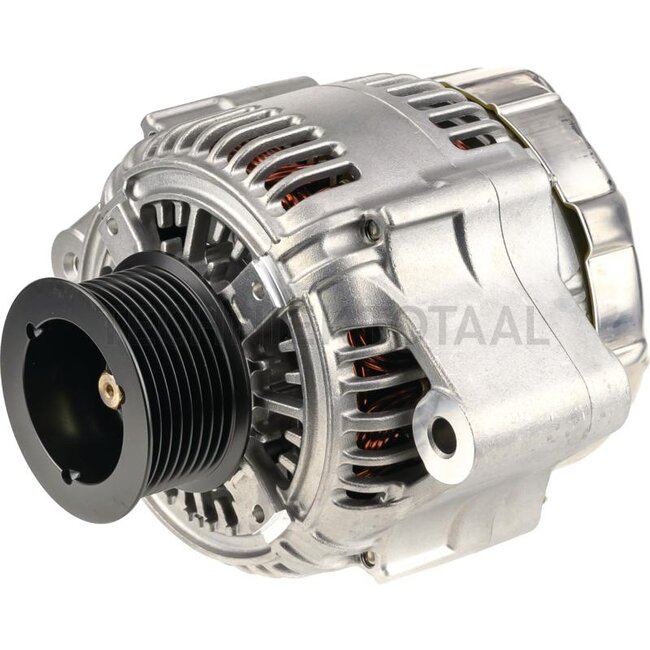

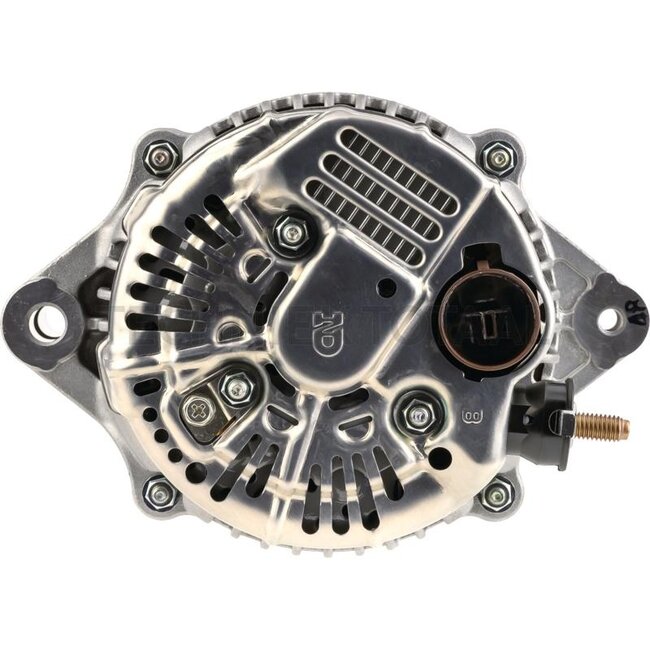

Denso Alternator 14 V / 140 A

Replaces: DAN2011

Technical data:

• Nominal voltage (V): 14
• Form: B
• Additional information: Connections: B+ (M8), PL26
• Mounting L / d / R (mm): 58,0 / 10,2 / -
• Belt width (mm) / type: PV x 8
• Nominal values (V / A): 14 / 140
• Pulley Ø (mm): 62.5
• Direction of rotation: -
• Installation angle (°): -
• Mounting hole Ø / R (mm): 10,2 / -
• Charging current (A): 140
• Belt tension hole Ø / R (mm): 10,2 / -
• Flange size (mm): 58,0
