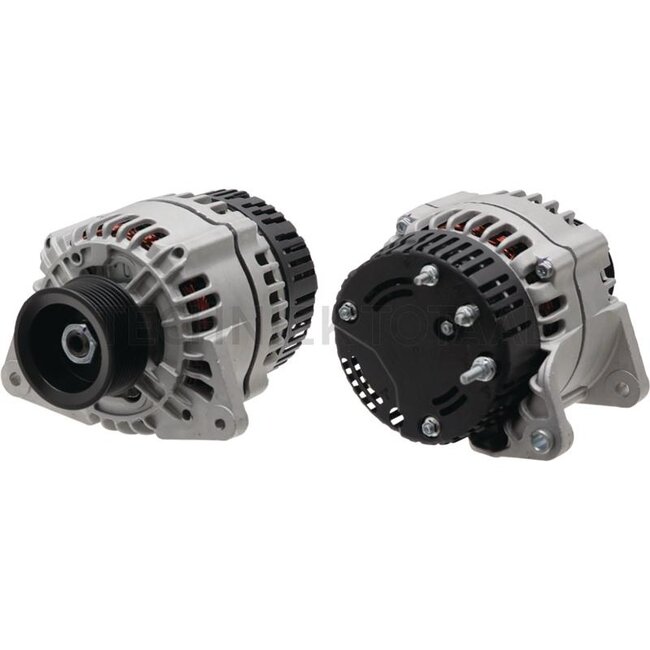

Alternator 14 V / 120 A, flange 83 mm | SGIA1020, LS12315-2, AGN901379P, 3788017M91, 82010242

Alternator 14V 120A

Compact design, internal fan

Replaces: SGIA1020, LS12315-2, AGN901379P

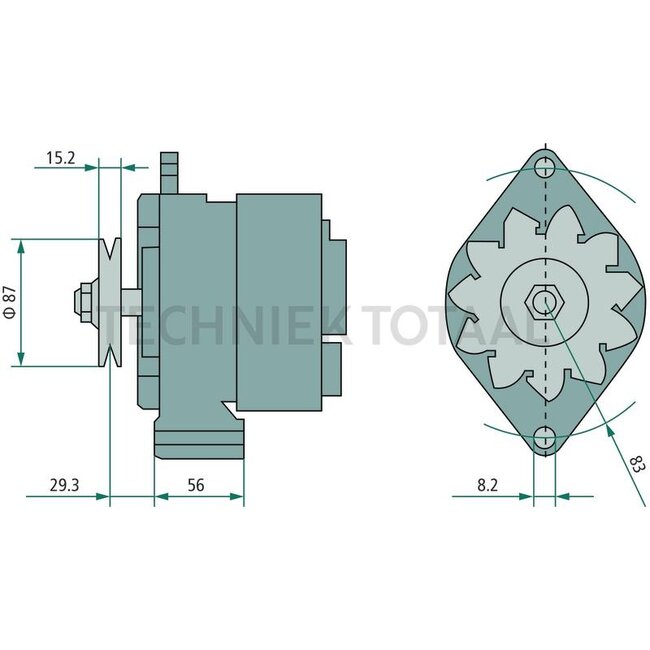

Technical data:

Flange size (mm): 83,0
Nominal values (V / A): 14 / 120
Additional information: Compact alternator, with W connection, dust-tight
Form: A
Belt width (mm) / type: PV x 8
Pulley spacing (mm): 32,0
Installation angle (°): r 60
Mounting hole Ø / R (mm): 8,5 / 86,0
Direction of rotation: ↻
Mounting L / d / R (mm): 83,0 / 8,5 / 86,0
Pulley Ø (mm): 67.0
Belt tension hole Ø / R (mm): M8 / 86,0
Charging current (A): 120
Nominal voltage (V): 14

Suitable for:

Case IH: Maxxum 100 Tier 3 (1/07-), Maxxum 110 CVX Tier 4 (7/13-), Maxxum 110 Tier 3 (1/07-), Maxxum 120 CVX Tier 4 (7/13-), Maxxum 120 Tier 3 (1/07-), Maxxum 125 Tier 3 (1/07-), Maxxum 130 CVX Tier 4 (7/13-), Maxxum 130 Tier 3 (1/07-), Maxxum 140 Tier 3 (1/07-), MXM 120, MXM 130, MXM 140, MXM 155, MXM 175, MXM 190

Ford: 8160, 8260, 8360, 8560

Massey Ferguson: 6270

New Holland: T7.170 Power Command (1/11-), T7.170 Range Command (1/11-), T7.175 (4/14-), T7.185 Power Command (1/11-), T7.185 Range Command (1/11-), T7.190 (4/14-), T7.200 Power Command (1/11-), T7.200 Range Command (1/11-), T7.210 (4/14-), TM115, TM120, TM125, TM130, TM135, TM140, TM150, TM155, TM165, TM175, TM190, TS90, TS100 (11/97-7/03), TS115 (12/98-12/02), T5.110 - AUTOCOMMAND TRACTOR - STAGE V (EMEA/APAC) - MY21 (01/21 - ), T5.110 - AUTOCOMMAND TRACTOR - STAGE V (EMEA/APAC) - MY23 (02/23 - ), T5.110 - AUTOCOMMAND TRAKTOR - STAGE V (EMEA/APAC) (05/19 - ), T5.110 - DYNAMIC COMMAND TRACTOR - STAGE V (EMEA) - MY21 (01/21 - ), T5.110 - DYNAMIC COMMAND TRACTOR - STAGE V (EMEA) (04/20 - ), T5.110 - DYNAMIC COMMAND TRACTOR - STAGE V (EMEA/APAC) - MY23 (02/23 - ), T5.110 D
