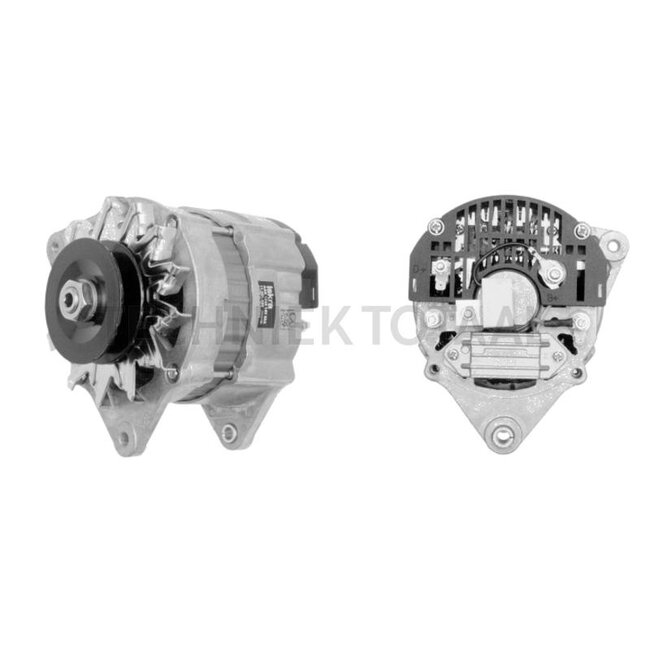

MAHLE Alternator 14 V / 65 A
Replaces: MG 283
Technical data:
- Flange size (mm): 80,0
- Belt width (mm) / type: 12,7
- Charging current (A): 65
- Direction of rotation: ↻
- Form: A
- Additional information: Dust-tight The battery temperature sensor must be connected, otherwise the alternator will not work
- Nominal values (V / A): 14 / 65
- Pulley spacing (mm): 35,3
- Mounting L / d / R (mm): 80,0 / 8,2 / 86,0
- Installation angle (°): l 60
- Nominal voltage (V): 14
- Mounting hole Ø / R (mm): 8,2 / 86,0
- Pulley Ø (mm): 75,0
Suitable for:
Ford: 6810, 7010, 7410, 7610, 7710, 7810, 445, 555, 575, 655, 345, 545
New Holland: 555, 655, 445C, 555C, 655C
