Form: B | Charging current (A): 120 | Installation angle (°): 0 | Mounting L / d / R (mm): 50,8 / 10,2 / 86,0 | Belt width (mm) / type: - | Nominal values (V / A): 14 / 120 | Pulley Ø (mm): - | Flange size (mm): 50,8 | Mounting hole Ø / R (mm): 10,2 / 86, Read more.

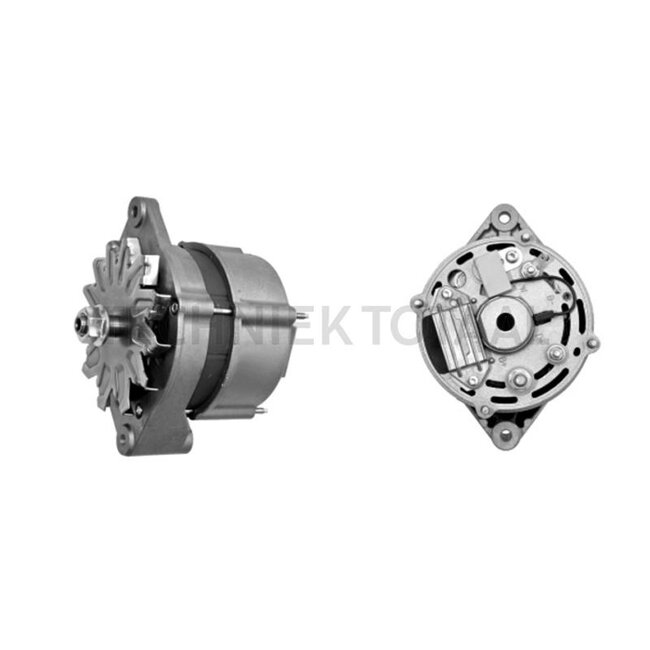

MAHLE Alternator 14 V / 120 A
Replaces: MG 477
Technical data:
Suitable for:
Case IH: CS 68 (3/99-3/04), CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (1/99-1/04), CS 86 (1/99-1/04), CS 94 (1/99-1/04), CS 100 (4/00-7/03), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), CVX 120, CVX 130, CVX 150 (7/00-5/03), CVX 170
John Deere: 1170, 1185, 2254, C 670, T550, T560, T660, T670, W540, W550, W650, W660
Laverda: 200 REV, 205 REV, 225 REV, 255 REV
Steyr: 9105 (4/00-7/03), 9105 (4/96-4/00), 9115 (4/00-7/03), 9115 (4/96-4/00), 9125 (4/00-7/03), 9125 (4/96-4/00), 9145 (4/00-7/03), 9145 (4/96-4/00), M 968 (3/99-3/04), M 975 (3/99-3/04), M 9078 (1/99-1/04), M 9086 (1/99-1/04), M9094 (1/99-1/04)
