GRANIT Angle sensor Angle measuring range: 90° - 507424A07A090B, 424A07A090B | Version: Angle measuring range: 90° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 k
€198,56
€187,38Incl. VAT
GRANIT Angle sensor Angle measuring range: 90° - 507424A07A090B, 424A07A090B | Version: Angle measuring range: 90° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 k
GRANIT Angle sensor Angle measuring range: 90° - 507424A07A090B, 424A07A090B | Version: Angle measuring range: 90° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 k
€198,56
€187,38Incl. VAT
In stock
€154,86
Excl. VAT
Version: Angle measuring range: 90° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: yes Out
Read more.
50.000+ technical products
Worldwide shipping*
30-day return policy
Rating 9.0/10 (472 reviews)
Larger quantity required?
Product description

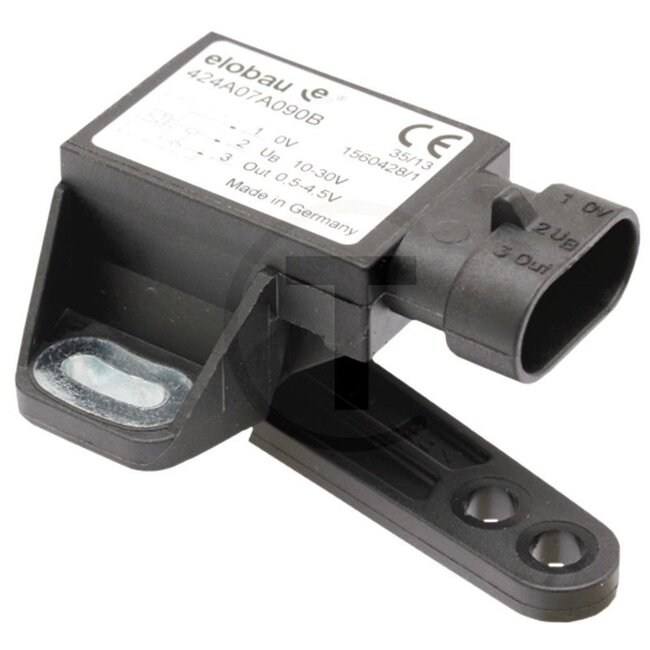

Angle sensor Angle measuring range: 90°
Version: Angle measuring range: 90° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: yes Output signal delay: 3 ms Temperature range: -40°C to +85°C Protection class: IP67 Control lever: yes Shaft: standard shaft Bearing: plain bearing Connection: AMP Superseal, 3-pin
