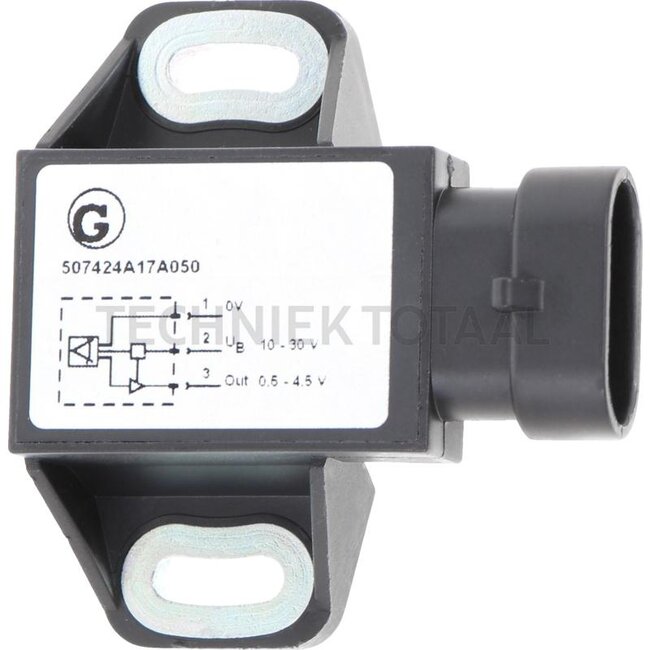

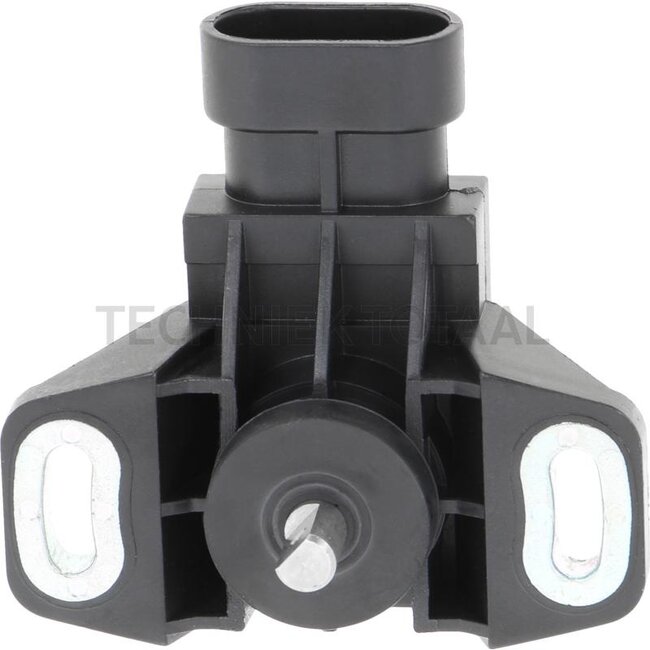

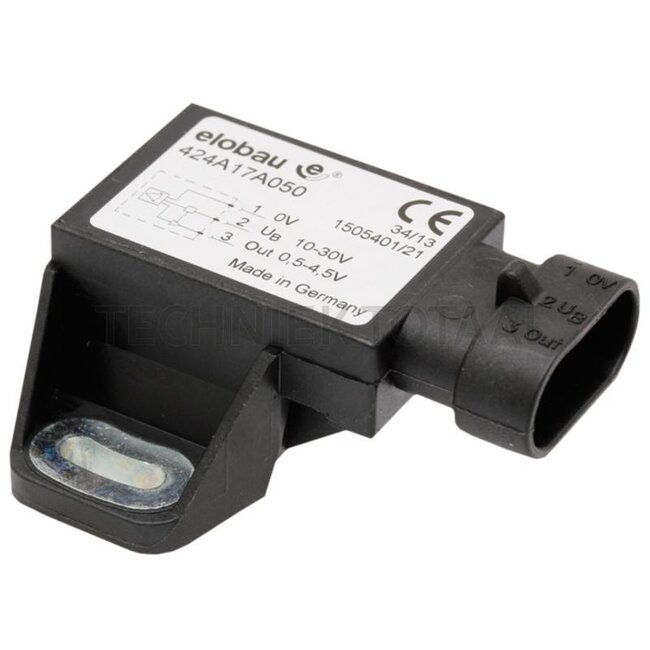

GRANIT Angle sensor 50°, 10 - 30 V DC, 0,5 - 4,5 V Massey Ferguson | 424A17A050, 4274087M1
€168,78
€152,32 Incl. 21% VAT
€125,88 Excl. VAT
In stock
Version: Angle measuring range: 50° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: yes Output si Read more.
Version: Angle measuring range: 50° Resolution: 0.1° Operating voltage: 10 V DC to 30 V DC Output signal: 0.5 V to 4.5 V Power consumption: 12 V -> 10 mA Load resistance: > 20 kΩ Central position: typically 2.5 V Reverse polarity protection: yes Output signal delay: 3 ms Temperature range: -40°C to +85°C Protection class: IP67 Control lever: no Shaft: standard shaft Bearing: ball bearing Connection: AMP Superseal, 3-pin
