Home / Brands / Walterscheid / Ball attachment ball 80, 140 x 100 mm, thickness 65 mm, 97,1 kN | 8004709

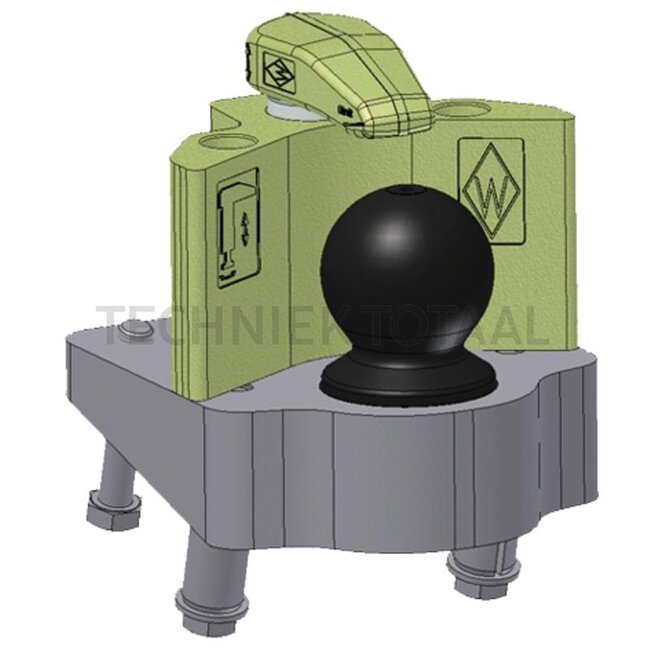

Walterscheid Ball attachment ball 80, 140 x 100 mm, thickness 65 mm, 97,1 kN | 8004709

-21%

Walterscheid Ball attachment ball 80, 140 x 100 mm, thickness 65 mm, 97,1 kN | 8004709

Name: Walterscheid Ball attachment ball 80, 140 x 100 mm, thickness 65 mm, 97,1 kN | 8004709
Brand: Walterscheid
SKU: 770KBAW15
Price: 1603.19 EUR

€2.027,79

€1.603,19 Incl. 21% VAT

€1.324,95 Excl. VAT

Delivery time on request

Thickness (mm): 65 | Lock: ball 80 | Assembly notes: Suitable for connection to ball hitches 80 according to ISO 24347. The fixing bolts M16 ISO4014 (DIN 931) grade 10.9 should be selected depending on the bar thickness according to Table 1. The 80 mm dia Read more.

Found in category:

Tractor & vehicle› Trailer couplings› K80 ball

Worldwide shipping*
Customer rating 9,3/10
30-day return policy
98,000+ technical products

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Walterscheid Ball attachment

Replaces: 8004709

Technical data:

Thickness (mm): 65
Lock: ball 80
Assembly notes: Suitable for connection to ball hitches 80 according to ISO 24347. The fixing bolts M16 ISO4014 (DIN 931) grade 10.9 should be selected depending on the bar thickness according to Table 1. The 80 mm diameter ball can be replaced (by authorised workshops) up to 2 times.
Hole spacing (mm): 140 x 100
D-value (kN): 97,1
Description: The arrester and hold-down device are made of forged materials. Tool-free adjustment is possible with our hold-down device. This model is suitable for the Walterscheid attachment system.
Colour: Black
