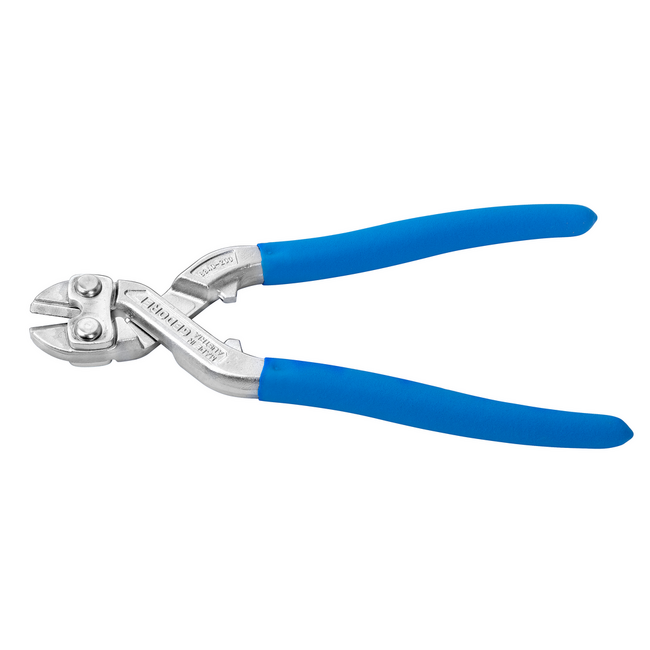

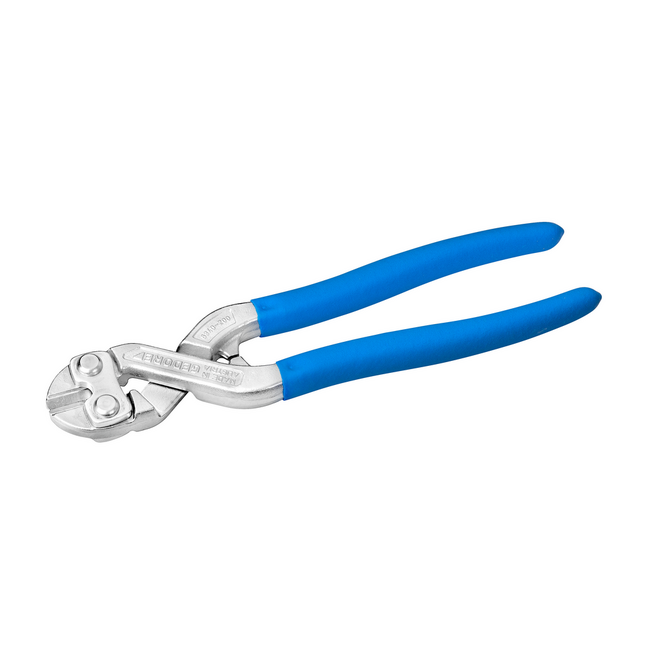

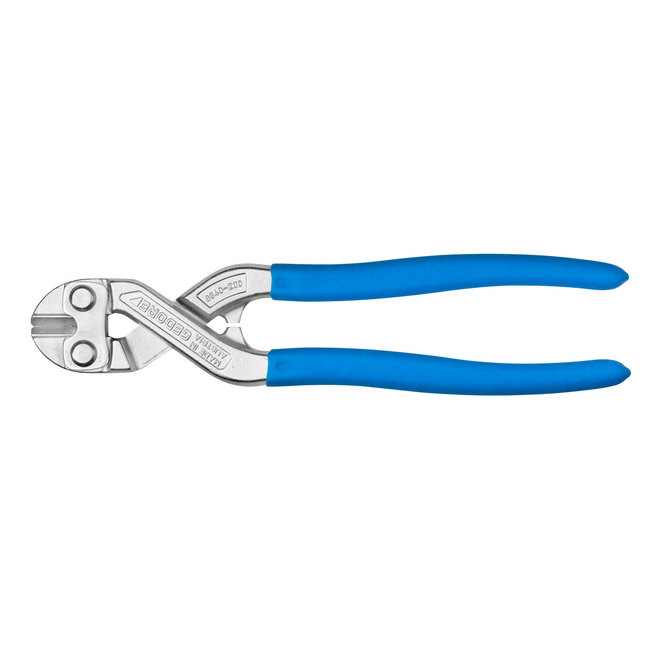

Compact 200 mm bolt cutter with an extra pre-cutting edge near the joint, cutting soft wire up to 6 mm and piano wire up to 3.8 mm with little effort.

• Compact power bolt cutter with a particularly effective cutting performance
• Optimum lever action requires less effort
• Wear-free rotating/thrust block bolt to reduce sliding friction when cutting
• Cutting edges additionally inductively hardened (63 - 65 HRC)
• Double-sided milling with additional cutting edge, in the area close to the joint, guarantees best leverage for large wire diameters
• The additional cutting edge serves as a pre-cutter for thick bolts and notches them very deeply
• In the second step, the main cutting edge cuts through the bolt completely
• Precision cutting edges for soft wire up to Ø 6.0 mm, hard wire up to Ø 5.5 mm and piano wire up to Ø 3.8 mm
• Version TC = chrome-plated, with blue dipped handles

Technical data

• Item number: 8340 Z-200 TC
• EAN: 4010886975817
• Total length: 210 mm
• Total width: 50 mm
• Total height: 18 mm
• Weight: 0.36 kg
• Material: Heat-treated steel
• Surface: chrome-plated
• Handle design: dip-insulated
• Cutting edge length: 16 mm
• Cutting values: Piano wire: 3.8 mm Hard wire: 5 mm / 4 AWG Medium hard wire: 6 mm / 3 AWG Soft wire: 6 mm / 3 AWG
• Hardness of cutting edge: 63-65 HRC
• Blade shape: with facet
• Handle colour: blue
• Thickness of point: 4 mm
• With cutting edge: yes
• Hardening process: Induction hardened
• Bevel: with
