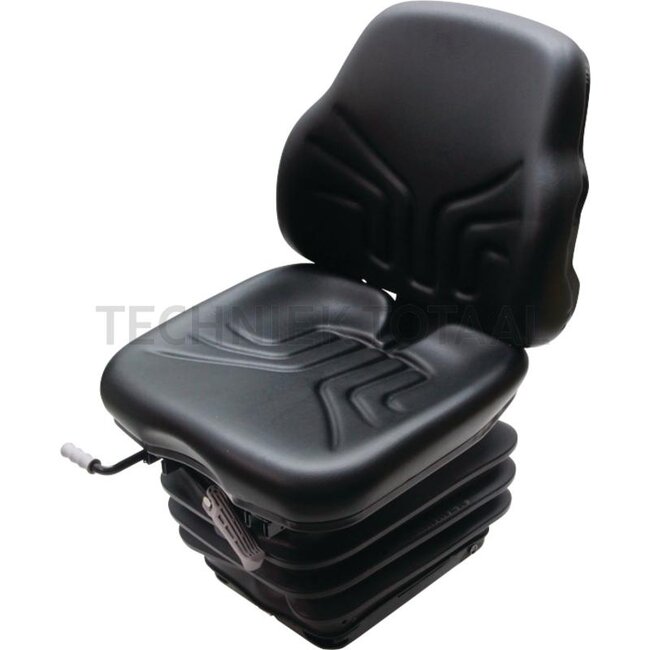

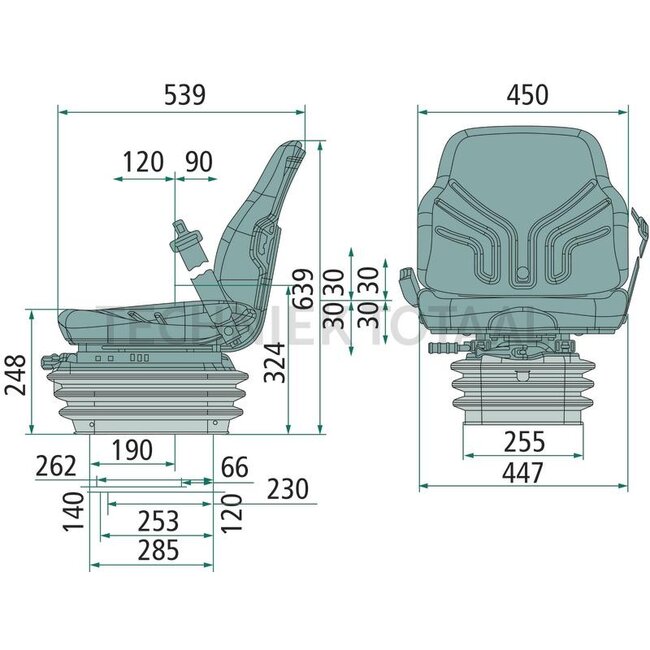

The Seat Compacto Basic XM MSG283/520 has mechanical suspension and is upholstered in PVC, with a seat width of 450 mm, a length of 539 mm and a height of 639 mm. The seat has a suspension travel of 60 mm and a track gauge of 225 mm. A seat contact switch is present and the restraint system is optional. The seat is equipped with mechanical scissors-type suspension with a horizontal tension spring assembly, height adjustment of 60 mm, weight adjustment range of 50 to 130 kg, longitudinal adjustment and a height limiter. The two-piece seat upper part made of imitation leather has climate control channels.
| Article number | 2401341911 |
|---|---|
| Weight | 30 kg |
| Suspension | Mechanical |
| Upholstery type | PVC |
| Seat contact switch | Yes |
| Track gauge | 225 mm |
| Seat width | 450 mm |
| Restraint system | Optional |
| Length | 539 mm |
| Height | 639 mm |
| Seat type | MSG283/520 |
| Suspension travel | 60 mm |
| Seat cushion width | 450 mm |
| Technical data | • Comfort seat with mechanical scissors-type suspension • Height adjustment 60 mm (mechanical) • Weight adjustment range of 50 - 130 kg • Longitudinal adjustment • Height limiter |
| Version | The Compacto Basic XM is equipped with mechanical scissors-type suspension with a horizontal tension spring assembly. The system offers a suspension travel of 60 mm. The combined weight and height adjustment is operated by the knob mounted at the front. An additional height limiter also enables use in very low cabs. The ergonomically designed two-piece seat upper part made of imitation leather and with climate control channels enables fatigue-free work. |
| Gauge | Up to 225 |
