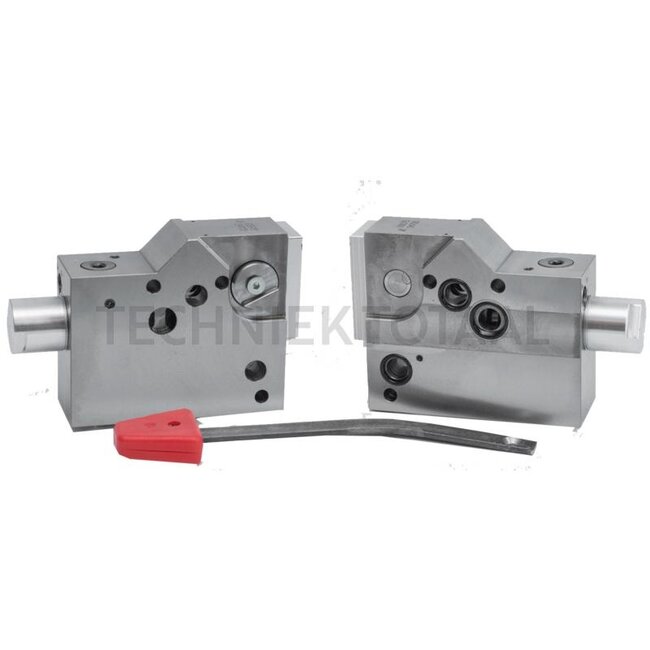

This control valve has been specially developed for Deutz tractors with SD60 hydraulics. Thanks to the high output up to four pieces can be flanged directly. As the hole pattern is identical to Deutz, this valve can also be mixed with Deutz SD-60 valves. Read more.
Control unit, can be switched between single- and double-acting, with float position with 3x detent (lift, lower, float position) and limit stop (with lever).
To fit as: Deutz 2506, 3006, 4006, 4506, 5006, 5206, 5506, 6006, 6206, 6806, 7006, 7206, 7506, 8006, 9006, 10006, 13006, 2807, 3607, 4007, 4507, 4807, 5207, 6007, 6207, 6507, 6807, 6907, 7007, 7807 until 1984, DX 85, 90, 110, 120, 140 until conversion to the large glass door
Technical data:
Description:

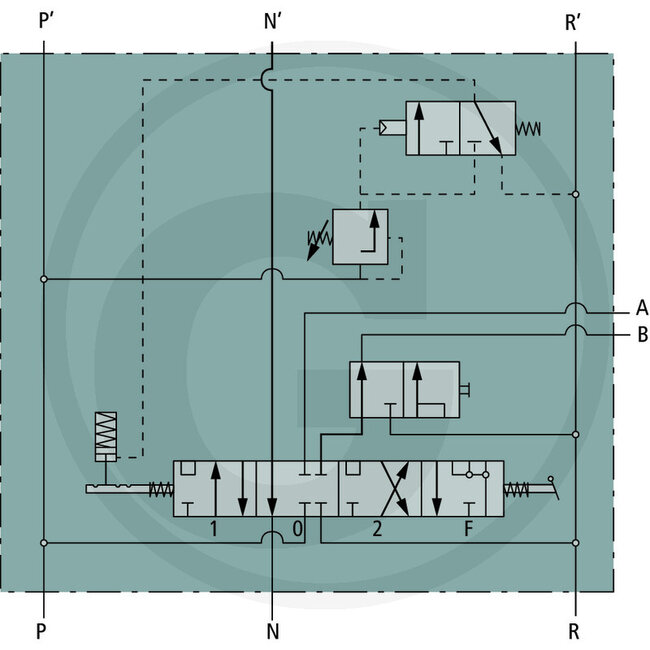

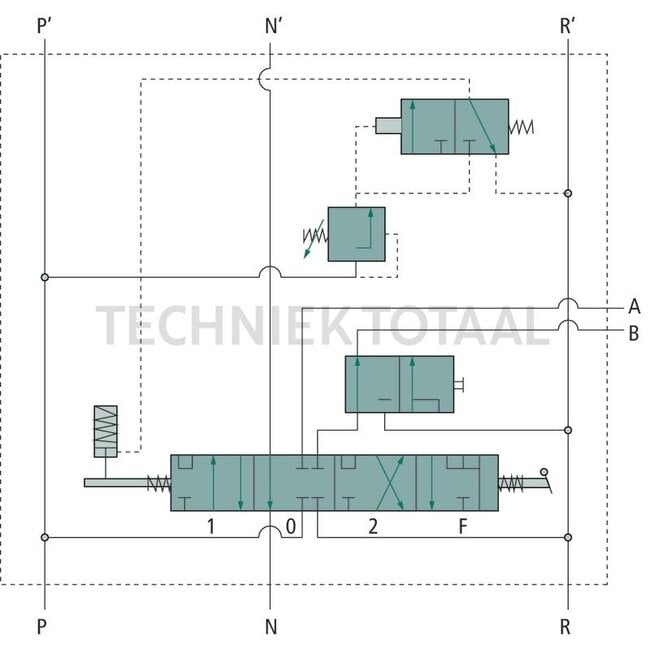

This control valve has been specially developed for Deutz tractors with SD60 hydraulics. Thanks to the high output up to four pieces can be flanged directly. As the hole pattern is identical to Deutz, this valve can also be mixed with Deutz SD-60 valves. The aforementioned control valve is a four-position valve, and can be switched via handwheel from double-acting to single-acting and vice versa. It is a gate-sealed control valve with neutral fine control that allows very low fit leakage, even at the highest pressure. The device has a latched safety limit switch in the lifting position. When switching via the lowering position, the latched float position is reached. This can be returned by hand to the neutral position at any time.
To fit as:
