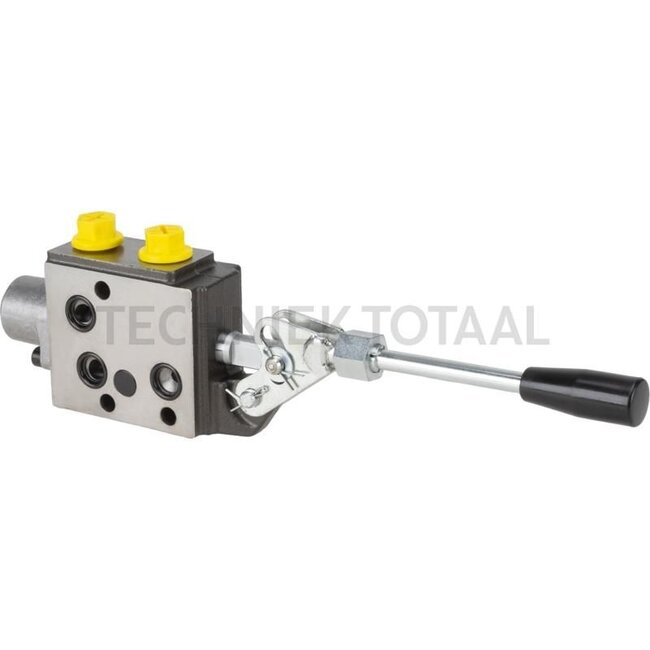

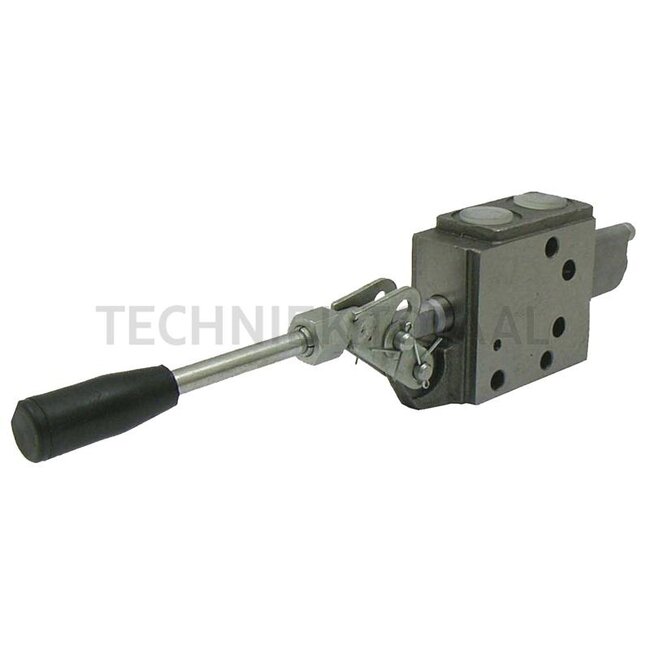

Control unit da without float position for Bosch SB 1 hydraulic system

Technical data: Max. operating pressure: 210 bar
Nominal flow rate: max. 40 l/min.
Tightening torque: 30 Nm
Connections: M18 x 1.5
Dimensions: 124 x 40 x 75 mm

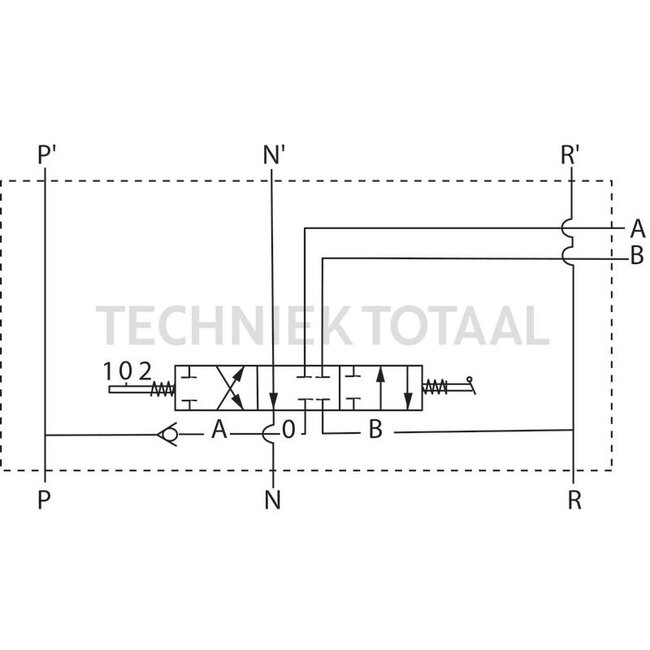

Description: This auxiliary control unit is a 5/3-way valve that is manually operated to control cylinders and hydraulic motors. This auxiliary control unit is a three-position device that can be used for double-acting lifting cylinders. It has gate-sealed consumer connections A and B. This means that extremely low internal leakage is permitted with high loads.

Passend voor:

Case IH: Serie A-Familie, 353, 383, 423, 433, 440, 453, 533, 540, 633, 640, 733, 740, 833, 840, 940 (1/90-12/92), Serie B-Familie, 523, 553, 554, 644, 654, 743, 744, 844, 844 S, Serie C-Familie, 955, Serie D-Linie, 323, D 320, D 322, D 324, D 326, D 430, D 432, D 436, D 439, D 440
