Steering valve ew blocked 220 bar, 30 l/min, system SB1 | 19117

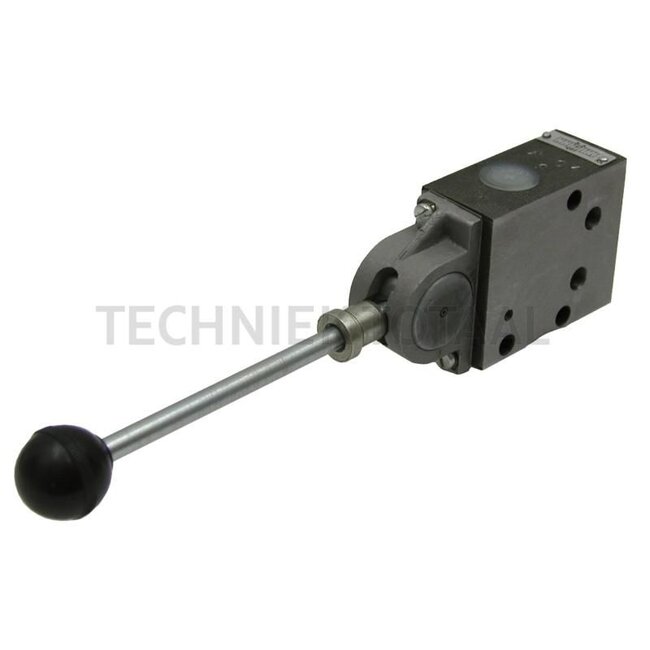

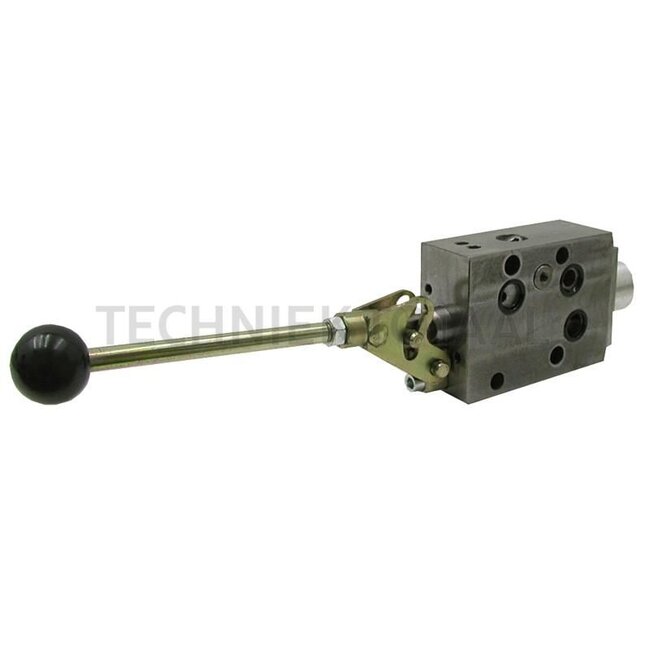

Control unit sa, 1x detent

Technical data: Max. operating pressure: 220 bar
Nominal flow rate: max. 30 l/min.
Tightening torque: 30 Nm
Connections: M18 x 1.5
Dimensions: 110 x 70 x 40 mm

Description: This auxiliary control unit is a 5/4-way valve that is manually operated to control cylinders and hydraulic motors. This auxiliary control unit is a three-position device that can be used for single-acting lifting cylinders. It has gate-sealed consumer connections A and B. This means that extremely low internal leakage is permitted with high loads. The lowering position can be used as a latched float position.

Menke no.: 70608

Passend voor:

Case IH: 19117, Serie A-Familie, 353, 383, 423, 433, 440, 453, 533, 540, 633, 640, 733, 740, 833, 840, 940 (1/90-12/92), Serie B-Familie, 523, 553, 554, 644, 654, 743, 744, 844, 844 S, Serie C-Familie, 955, Serie D-Linie, 323, D 320, D 322, D 324, D 326, D 430, D 432, D 436, D 439, D 440

Fendt: 19117, Serie Farmer 200, Farmer 250 S (Typ 295), Farmer 260 S (Typ 296), Farmer 260 V (Typ 206), Farmer 270 V (Typ 207), Farmer 280 P (Typ 248), Farmer 280 V (Typ 208)
