Corner work light with H3 bulb, flood beam, 55 W and 12 V. The housing is plastic, the diffusing lens is glass, and the version has a patterned diffusing lens. It is square in form and measures 103 x 103 x 66 mm (W x H x D). It is transparent in colour, has an AMP plug, a cable length of 180 mm and protection class IP5K4K. It is halogen, uses 4-point mounting with bolts, and bulbs are included. Fits tractors from Case IH, Fendt and Steyr.
Reference numbers:1-34-672-400, 47106801, G916901020010, 1GA 996 020-001
CS 100 (4/00-7/03), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00), Serie CS
Favorit 916 (Typ 916), Favorit 918, Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926), Fendt 916 (Typ 916), Fendt 918, Fendt 920 (Typ 920), Fendt 924 (Typ 924), Fendt 926 (Typ 926), Fendt 930 (Typ 930), Serie Favorit 900, Serie Fendt 900
9105 (4/00-7/03), 9105 (4/96-4/00), 9115 (4/00-7/03), 9115 (4/96-4/00), 9125 (4/00-7/03), 9125 (4/96-4/00), 9145 (4/00-7/03), 9145 (4/96-4/00), Serie 9100
| Article number | 4551GA 996020001 |
|---|---|
| EAN | 9002920090995 |
| Weight | 180 g |
| Bulb | H3 |
| Colour | Transparent |
| Connection | AMP plug |
| Width | 80 mm |
| Form | Square |
| Height | 66 mm |
| Length | 103 mm |
| Hole spacing | 80 mm |
| Housing | plastic |
| Diffusing lens | glass |

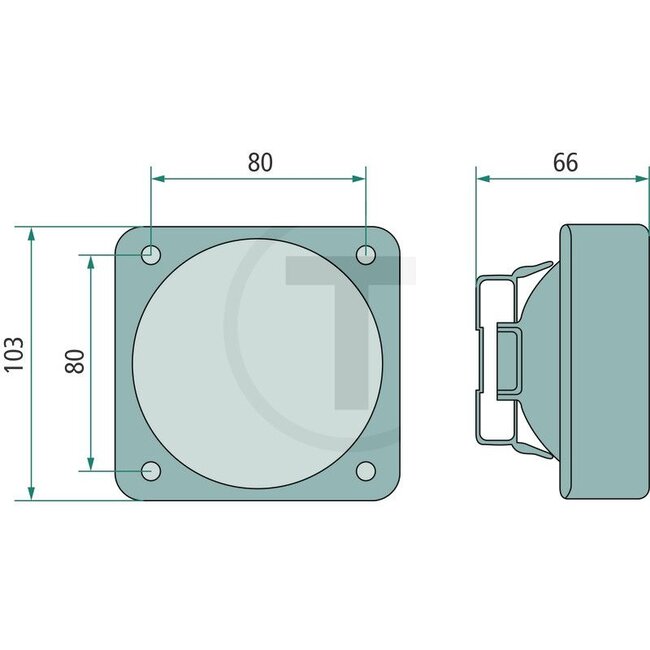

| Dimensions W x H x D | 103 x 103 x 66 mm |
| Fixing | 4-point mounting |
| Protection class | IP5K4K |
| Nominal voltage | 12 V |

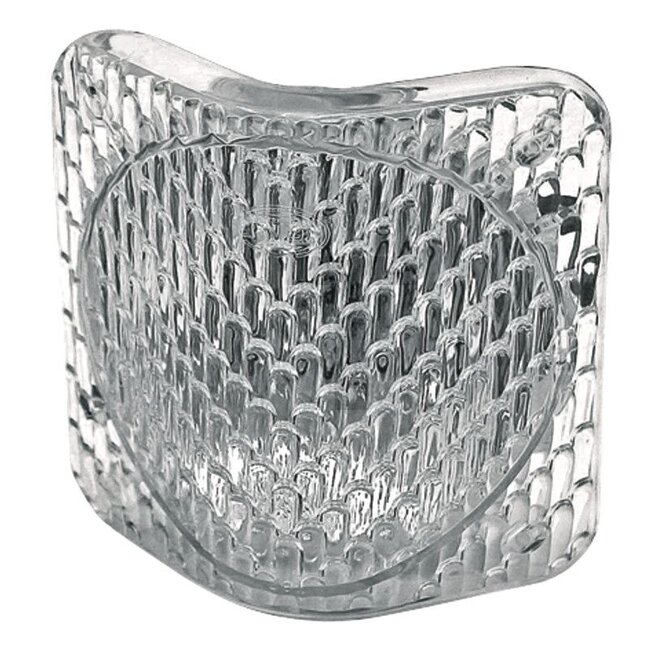

| Version | Patterned diffusing lens |
| Cable length | 180 mm |
| Power consumption | 55 W |
| Type | Halogen |
| Light function | Close-range illumination |
| Additional information | • With bolts |
| Bulbs included | Yes |
| Mounting type | Flush mounting, screw connection |
