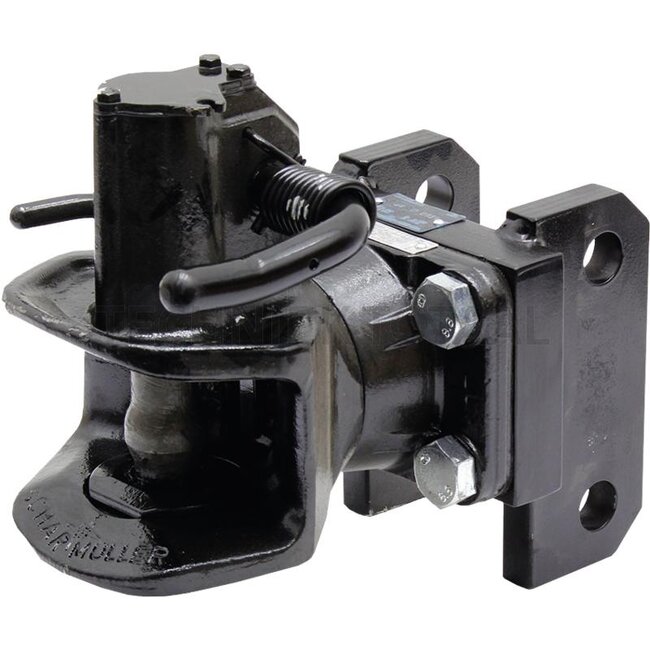

Scharmüller Coupling complete Type 1120

Slide width: 138 mm

Replaces: 05.5141.021-A02

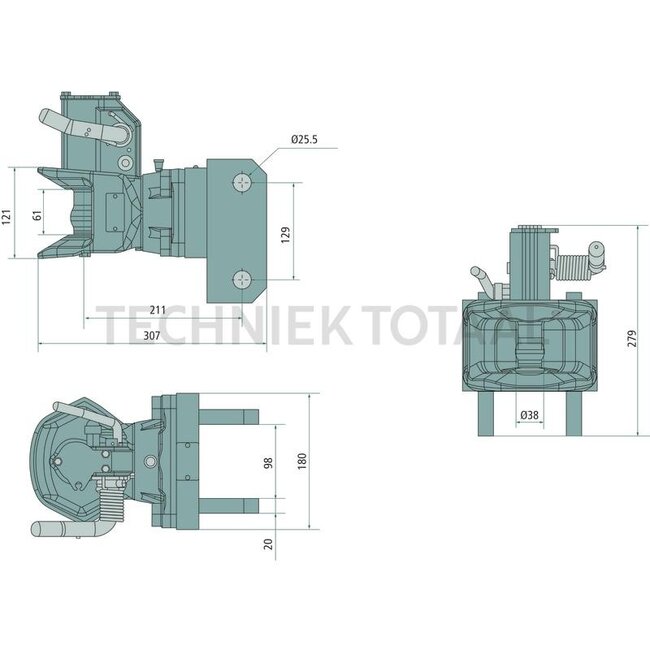

Technical data:

• Hole (mm): M20
• Overhang (mm): 211
• Thread: M20
• Lock: Automatic
• Internal width (mm): 98
• Colour: Black
• Hole spacing (mm): 129
• D-value (kN): 31,1
• Locking pin Ø (mm): 25
• Version: Absteckbar mit Konsole
• Drawbar eye: DIN 11026, 74054 (ISO 8755) = 40 mm
• Category: Zugmäuler
• Load capacity (kg): 2000
• Connecting pin (mm): 38

Suitable for:

Deutz-Fahr: AgroCompact 3.30, AgroCompact 3.50, AgroCompact 3.70, AgroCompact 3.90, AgroPrima 4.31, AgroPrima 4.51, AgroPrima 4.56, AgroPrima 6.06, AgroPrima 6.16, AgroStar 4.61, AgroStar 4.68, AgroStar 4.71, AgroStar 4.78, AgroStar 6.08, AgroStar 6.11, AgroStar 6.28, AgroStar 6.38, AgroXtra 3.57, AgroXtra 4.07, AgroXtra 4.17, AgroXtra 4.47, AgroXtra 4.57, AgroXtra 6.07, AgroXtra 6.17, DX 80, DX 85, DX 86, DX 90, DX 92, DX 110, DX 120, DX 140, DX 145, DX 160, DX 3.10, DX 3.30, DX 3.50, DX 3.60, DX 3.65, DX 3.70, DX 3.75, DX 3.80, DX 3.90, DX 4.10, DX 4.17, DX 4.30, DX 4.50, DX 4.70, DX 6.05, DX 6.10, DX 6.30, DX 6.50
