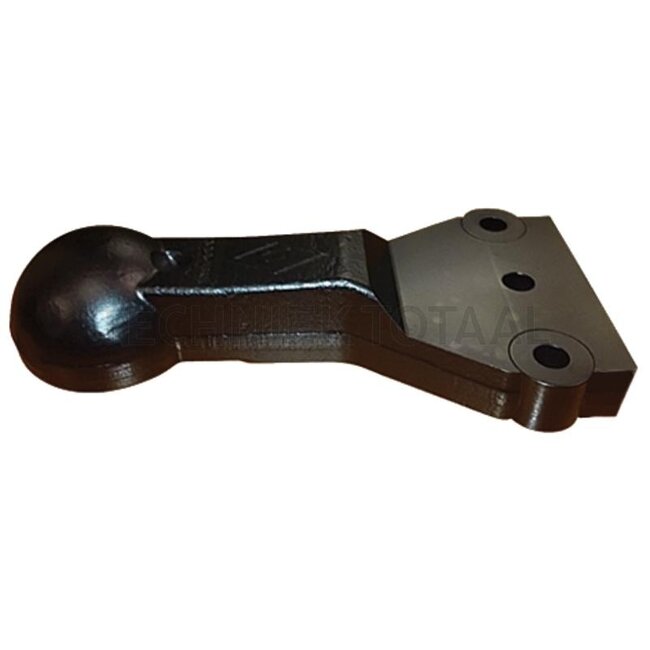

Name: Walterscheid Drawbar eye ball 80, 280 mm, flange 75 x 75 mm, 3-hole M21 | 8004979
Brand: Walterscheid
SKU: 770ZKK80-150
Price: 1062.10 EUR

Dear visitor!

Welcome to our site. Today is Sunday, a day of rest in the Christian religion. Therefore, we have chosen not to work today, and our webshop is closed. Of course, you are warmly welcome again tomorrow.

Have a nice Sunday and best regards,
Team Techniek Totaal

EUR

My account

Wishlist

60.000+ technical products

Worldwide shipping*

30-day return policy

Customer rating 9.3/10

9.3

Home / Tags / nov-02-producten / Drawbar eye ball 80, 280 mm, flange 75 x 75 mm, 3-hole M21 | 8004979

Walterscheid Drawbar eye ball 80, 280 mm, flange 75 x 75 mm, 3-hole M21 | 8004979

-21%

Walterscheid Drawbar eye ball 80, 280 mm, flange 75 x 75 mm, 3-hole M21 | 8004979

€1.343,44

€1.062,10 Incl. 21% VAT

€877,77 Excl. VAT

Delivery time on request

Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers. Product advantages: forged designed for the highest loads optimum clear Read more.

Found in category:

Tractor & vehicle› Trailer couplings› Drawbar & drawbar eyes

60.000+ technical products
Worldwide shipping*
30-day return policy
Customer rating 9.3/10

Larger quantity required?

Any questions about this product?

Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Walterscheid Drawbar eye

Replaces: 8004979

Technical data:

Description: This product is a spherical cap suitable for connection with a hitch ball D: 80 mm (ISO 24347). The areas of application include use on agricultural or forestry trailers. Product advantages: forged designed for the highest loads optimum clearance for angular movement of up to 36° grooves on the inside ensure optimum distribution of lubricating grease
Hole (mm): M21
Thickness (mm): 40
Length of overhang (mm): 280
D-value (kN): 57,2 / 60,4 / 62,7
Flange: 3-hole
Colour: black
Hole pattern (mm): 75 x 75
No. of holes: 3
Load capacity (kg): 2000 / 1500 / 1000
Assembly notes: Spherical cap according to ISO 24347, straight
Lock: ball 80
