Drawbar eye weld-in Ø 40 mm, solid shaft 50 x 50 mm, 300 mm | B47201013, 8002257, 30000745
9,4688 reviews
(0)
-9%
Drawbar eye weld-in Ø 40 mm, solid shaft 50 x 50 mm, 300 mm | B47201013, 8002257, 30000745
9,4688 reviews
0 reviews

Drawbar eye weld-in Ø 40 mm, solid shaft 50 x 50 mm, 300 mm | B47201013, 8002257, 30000745

€91,92
€83,65 Incl. 21% VAT
€69,13 Excl. VAT
In stock

Eye Ø (mm): 40 | Dc-value (kN): 50 | Shaft cross section W x H (mm): 50 x 50 | Description: The ring and shaft dimensions of the drawbar eye comply with DIN 74054 (ISO 8755). The areas of application include use on agricultural or forestry trailers. Advan Read more.

Found in category:
Tractor & vehicle› Trailer couplings› Drawbar & drawbar eyes

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

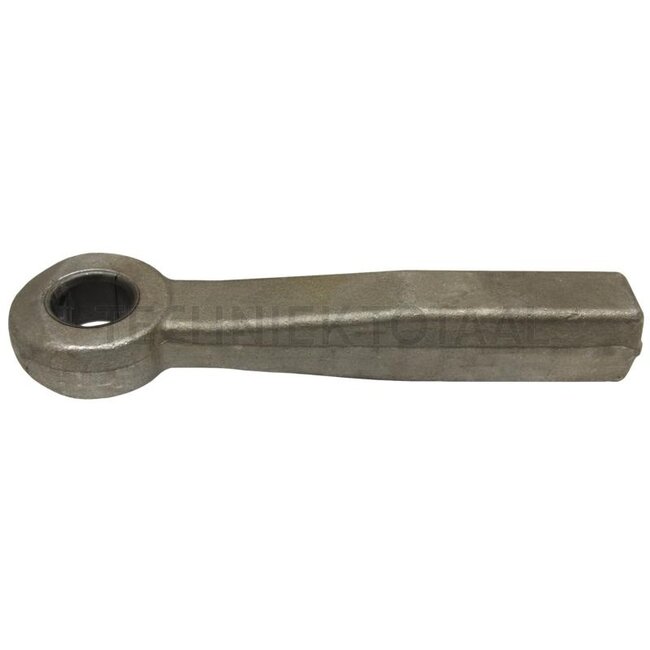

GRANIT Drawbar eye

Eye Ø 40 mm

Replaces: B47201013, 8002257, 30000745

Technical data:

  • Eye Ø (mm): 40
  • Dc-value (kN): 50
  • Shaft cross section W x H (mm): 50 x 50
  • Description: The ring and shaft dimensions of the drawbar eye comply with DIN 74054 (ISO 8755). The areas of application include use on agricultural or forestry trailers. Advantages: made of forged high-strength material
  • Total length (mm): 350
  • Load capacity (kg): 1000 up to 25 km/h 700 over 25 km/h
  • Version: Weld-in
  • V-value (kN): 14
  • D-value (kN): 65
  • Permissible total weight (kg): 7000
  • Approval: M 2938
  • Shaft: Solid shaft
  • Length (mm): 300

Further information

Article number
22084001
SKU
22084001
