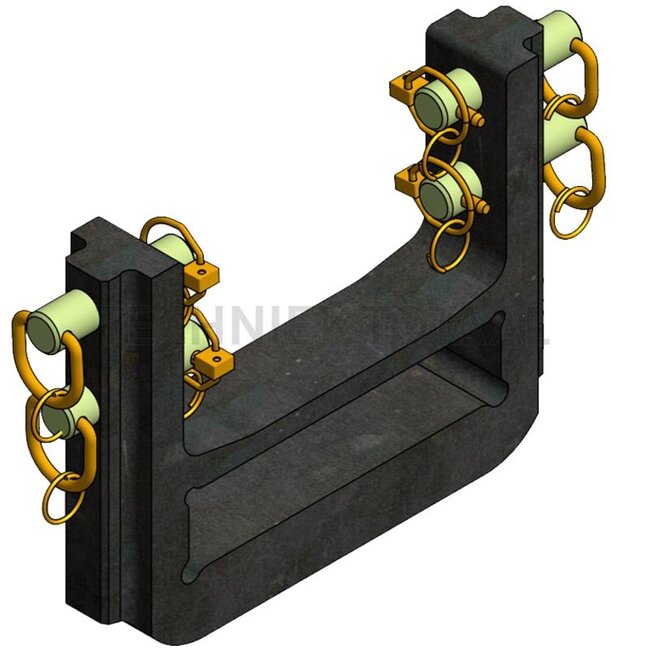

Walterscheid Drawbar support
For 330 mm rail
Replaces: 8005130

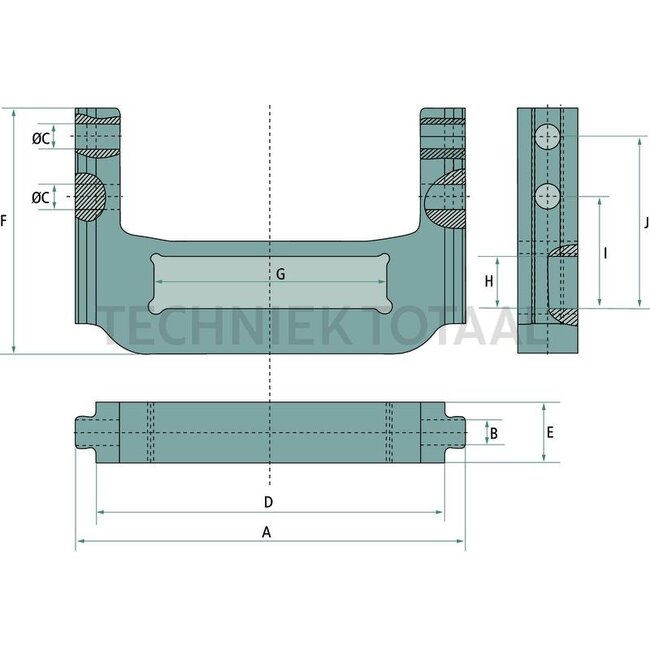

Technical data:
- E (mm): 75
- D-value (kN): 92
- J (mm): 180
- I (mm): 120
- F (mm): 250
- Assembly notes: Prepared for attaching drawbars, ball coupling bars, Piton bars or comparable connection equipment.
- G (mm): 232
- Colour: Fendt grey
- Included in delivery: Includes 1x drawbar support 770ZP4305E and 4x locking pin 770AB8329.
- D (mm): 290
- A (mm): 329
- C (mm): 25
- Description: The drawbar supports are height-adjustable sliding plates that can only be operated in hitch supports with locking rails. They are prepared for attaching connection equipment such as drawbars, ball coupling bars or Piton bars. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: height-adjustable
- H (mm): 52
- Load capacity (kg): 3500
- B (mm): 32
Suitable for:
Fendt: Favorit 916 (Typ 916), Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926)
