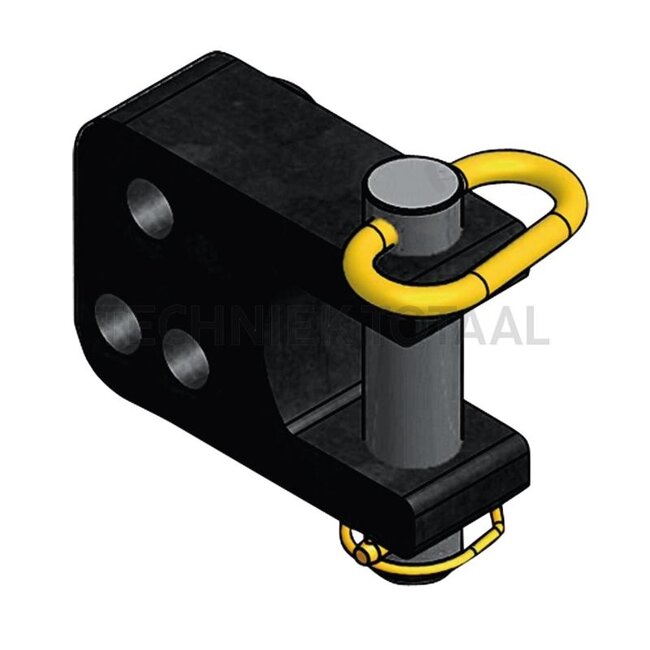

Walterscheid Forced steering
For use with steering rods guided at an angle from above or below.
Replaces: 8004668
Technical data:
- Colour: Chrome 6-free galvanised
- Lock: Manual, cylindrical hitch bolt
- Included in delivery: Includes 1x forced steering clevis, 1x standard bolt 770NB25145KPL, 1x linch pin and 2x hexagon head bolt M20 x 80. Fixing elements and intermediate plates are not included and must be ordered at the same time if required.
- Assembly notes: Both ends
- Description: Forced steering components are used to transfer steering forces between the towing vehicle and agricultural and forestry trailers. The central element for connection to the trailer steering rod is a 25 mm bolt. A spherical plain bearing 25 in accordance with DIN ISO 26402 is mounted as a counterpart on the steering cylinder piston rods of the forced steering systems. Advantages: suitable for Walterscheid Easy Fit Steering System
- Dimensions (mm): Bolt Ø for spherical plain bearing: 25.5, hole spacing: 50.3 - hole for 15° forward tilt
