GRAMMER Forklift seat Primo L Plus air suspended 12 V, 520 mm, PVC | 1550942
GRAMMER 9,4688 reviews
(0)
-5%
GRAMMER Forklift seat Primo L Plus air suspended 12 V, 520 mm, PVC | 1550942
GRAMMER 9,4688 reviews
0 reviews

GRAMMER Forklift seat Primo L Plus air suspended 12 V, 520 mm, PVC | 1550942

€1.331,00
€1.264,45 Incl. 21% VAT
€1.045,00 Excl. VAT
Delivery time on request

Track gauge (mm): 328 | Rückenverlängerung: Optional | Seat heater: Optional | Restraint system: Yes | Length (mm): 693 | Suspension: Air suspension | Armrest: Optional | Seat type: MSG75G/2731 | To fit: Forklifts | Version: The 12V pneumatic suspension w Read more.

Found in category:
Tractor & vehicle› Seats and accessories› Forklift seat

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

GRAMMER Primo L Plus

MSG75G/2731

Replaces: 1550942

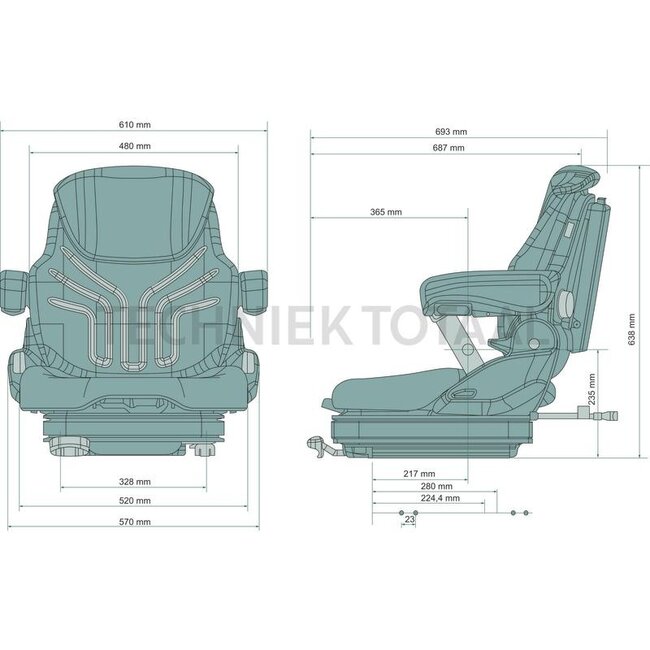

Technical data:

  • Track gauge (mm): 328
  • Rückenverlängerung: Optional
  • Seat heater: Optional
  • Restraint system: Yes
  • Length (mm): 693
  • Suspension: Air suspension
  • Armrest: Optional
  • Seat type: MSG75G/2731
  • To fit: Forklifts
  • Version: The 12V pneumatic suspension with reduced suspension travel of 80 mm enables efficient vibration reduction even in the smallest cabs. The driver's weight can be set within the range 45 kg - 170 kg using an ergonomically positioned button, while a sight glass with pointer helps the driver find the optimum setting. Low-profile air suspension with a seat cushion width of 520 mm. The seat is equipped with comfort cushions. An MFA adaptor plate for 27xx upper parts is also integrated into the seat as standard, e.g. for Linde, Still. An adaptor kit can also be ordered for the seat, which includes the previous connection points of the S5xx OT, e.g. Jungheinrich. The longitudinal adjustment of 210 mm provides sufficient space for any body size. The backrest with tilt adjustment and integrated lumbar support provides comfort and prevents damage to the spine.
  • Width (mm): 570
  • Upholstery type: PVC
  • Lordosenstütze: Mechanical
  • Height (mm): 638
  • On-board voltage (V): 12
  • Fore/aft isolator: Optional
  • Seat contact switch: Yes
  • Seat width (mm): 520
