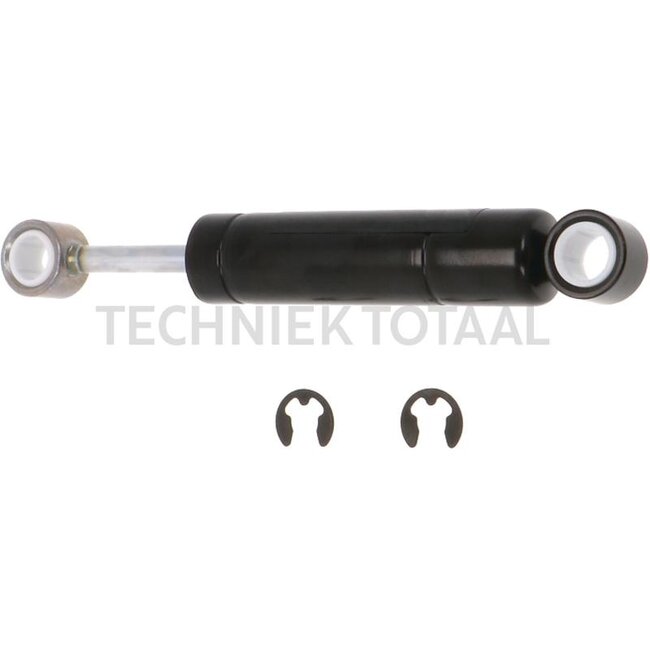

GRAMMER Shock absorber

Replaces: 1081800

Technical data:

• Sitzoberteil: 511, 521, 522, 531, 721, 731
• Seat type: Primo, Primo EL Plus, Primo Evolution, Primo L, Primo M, Primo Professional M, Primo Professional S, Primo XL, Primo XL Plus, Primo XM, Primo XXL, Primo XXM
• Length min./max. (mm): 125 - 170
• Housing Ø (mm): 24
• To fit: MSG 65, MSG 75
• Eye Ø (mm): 12

Suitable for:

Jungheinrich: DFG 3s 06/2017 - 09/2020, DFG 4s 06.2017 - 09.2020, DFG 5s 06/2017 - 09/2020, DFG 316 - 320 03.2016 - 09.2021, DFG 425-435 05/2016 - 09/2021, DFG 540 04.2016 - 07.2016, DFG 540-S50 06/2016 - 09/2020, DFG 660 11/2012 - 05/2016, EFG 213 02/2016 - 10/2021, EFG 213-220 09/2021, EFG 316-320 02/2013 - 10/2021, EFG 316-320 ab 09/2021, EFG 425-430 04/2012 - 12/2012, EFG 425-430, S30 06/2014 - 04/2024, EFG 425-430/ S30 ab 06/2014, EFG 425kMP 11/2004 - 01/2008, EKX 513-515 05/2007 - 02/2016, ET 214-216 2021 ab 02/2022, ETM (V) 214, 216 ab 09/2011, ETV 110, 112 11/2005 - 06/2014, ETV 110, 112 ab 05/2014, ETV 114, 116 07/2011 - 01/2018, ETV 114, 116 11/2005 - 12/2011, ETV 118n, 120n 01/2014 - 01/2018, ETV 216i 2021 ab 02/2022, ETV 216i ab 03/2018, EZS 350 09.2016 - 06.2024, TFG 3s 06/2017 - 09/2020, TFG 4s 06/2017 - 09/2020, TFG 316-320 03/2016 - 09/2021, TFG 316s 07/2004 - 08/2009, TFG 425-435 05/2016 - 09/2021, TFG 430 07/2004 - 09/2007, TFG 430df 01/2015 - 07/2016, TFG 435df 01/2015 - 07/2016, TFG 435s 09/2014 - 09/2017, TFG 540 07/2004 - 06/2012, TFG 540-S50 06/2016 - 09/2020, TFG 545 07/2004 - 06/2012, TFG 550 07/2004 - 06/2012

Linde: E12/14/15/16/18/20 (386-01) 03/2006 - 03/2014, E12/14/15/16/18/20 (386-02) 02/2014 ->, E14/16/18/20 (1251-01), E16C/E16CH/E16P/E16PH/E20PH (1275-01), E20/25/30/35 (387-01) 11/2010 ->, E20/25/30/35 (1252-01), E25/E25S/E25SH/E30S/E30SH/E35SH (1276-01), E35/40/45/50 (388-01) 07/2011 - 05/2024, E60/70/80 (1279-01), H14/16/18/20 (391-01) 10/2006 ->, H14/16/18/20 (391-02) 06/2021 ->, H20/25 (392-01) 02/2002 - 12/2012, H20/25 (392-02) 01/2013 - 07/2020, H20/25/30/35 (1202-01) 01/2020 ->, H25/30/35 (393-01) 11/2002 - 12/2012, H25/30/35 (393-02) 01/2013 - 07/2020, R10/12/14/16/20/25 (1120-01) 10/2012 ->, X20/25/30/35 (1252-01), X35/40/45/50/E35/40/45/50 (1254-01)

Toyota: Diverse
