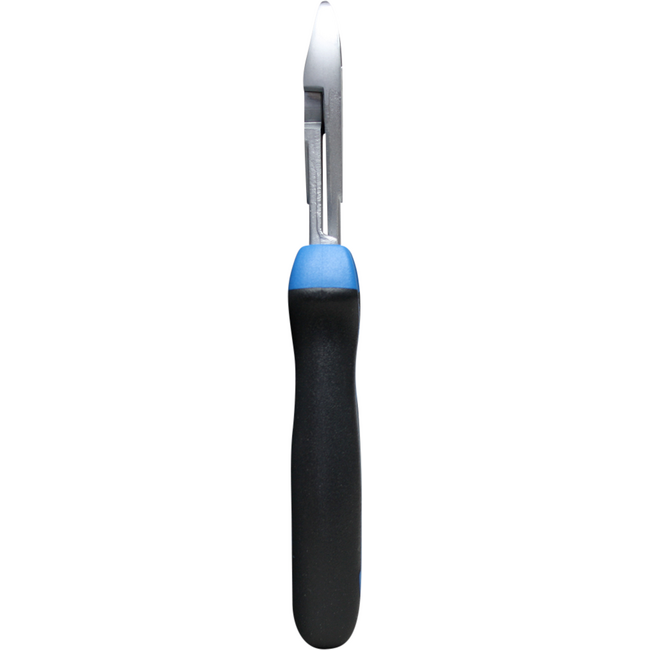

Heavy-duty 160 mm diagonal cutters with high leverage and an offset joint, cutting piano wire up to 2 mm and hard wire up to 2.5 mm with less effort.

• Acc. to DIN ISO 5749
• Good lever action for easy cutting
• GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
• Induction hardened cutting edges (63 - 65 HRC) enable consistent cutting performance over a long period of time
• Highest cutting performance with less effort due to the optimum interaction of cutting geometry, eccentric rivet bearing and ergonomic handle design
• Version JC = chrome-plated, with 2-component grip covers

Technical data

• Item number: 8316-160 JC
• EAN: 4010886674451
• Total length: 160 mm
• Total width: 55 mm
• Total height: 21 mm
• Weight: 0.225 kg
• Material: Heat-treated steel
• Width of head 1: 24.5 mm
• Surface: chrome-plated
• Head height 1: 19 mm
• Standard: DIN ISO 5749
• Handle design: 2K
• Cutting edge length: 19 mm
• Cutting values: Piano wire: 2 mm / 12 AWG Hard wire: 2.5 mm / 10 AWG Medium hard wire: 3.4 mm / 8 AWG
• Hardness of cutting edge: 63-65 HRC
• Joint types: applied joint
• Blade shape: with facet
• Head Thickness T1: 10 mm
• Handle colour: blue
• Hardening process: Induction hardened
• Bevel: with
