Walterscheid Hitch complete
Reinforced version
Replaces: 8005285

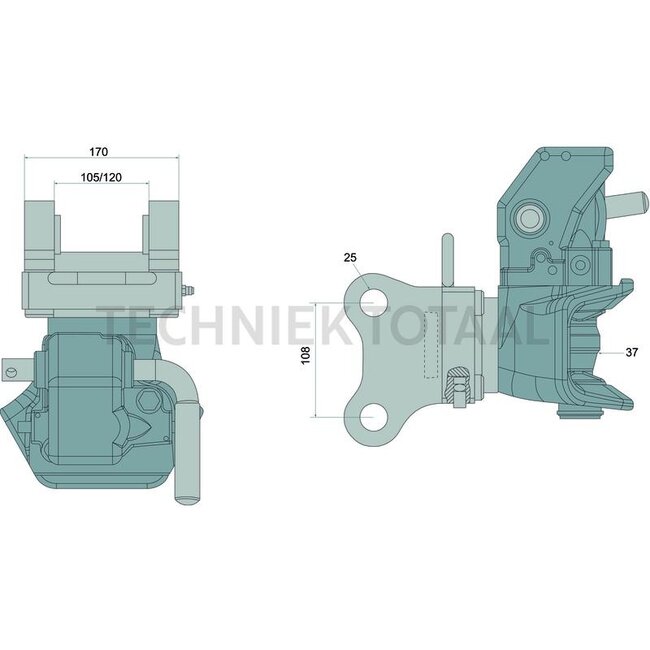

Technical data:
- Connecting pin (mm): 37

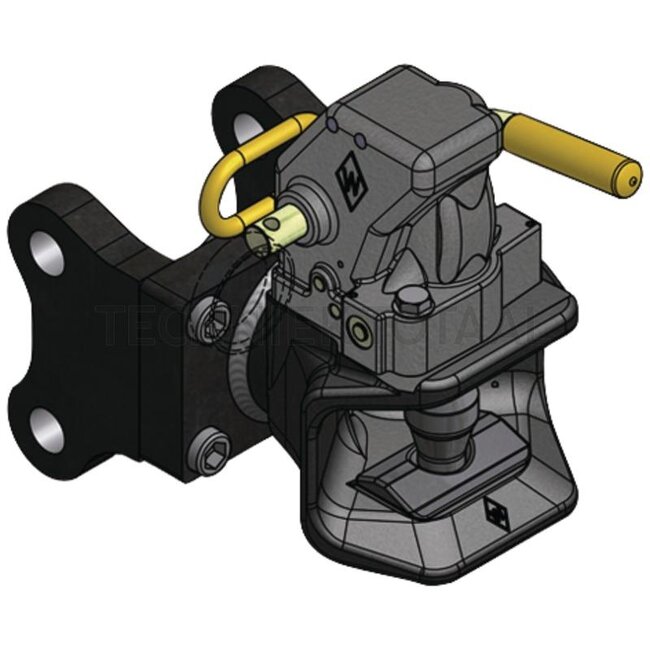

- Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. The hitch is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 37 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: made of forged material, hitch bolt can be freely rotated 360 degrees
- Internal width (mm): 105/120
- Load capacity (t): 2
- Colour: Black
- Included in delivery: Includes 1x hitch 770KU2000/750NB. Locking pins 770AB950 are not included and must be ordered separately if required.
- Locking pin Ø (mm): 25
- D-value (kN): 60
- Drawbar eye: DIN 11026, 74054 (ISO 8755) = 40 mm
- Hole spacing (mm): 108
- Lock: Automatic, spherical hitch bolt
- Width (mm): 170
- Load capacity (kg): 2000
- Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 9678 (ISO 5692-1). If necessary, appropriate washers must be used to position the hitch. The hitch is suitable for two different mounting situations. Designed by default for mounts on vehicles with a spacing of 120 mm. By swapping the right and left bearing plates during assembly, it can also be used for mounts with a spacing of 105 mm.
Suitable for:
Case IH: 644, 743, 743 XL, 745 S, 745 XL, 844 S, 844 XL, 845, 845 XL, 856 XL, 955 XL, 956 XL, 1055 XL, 1056 XL
