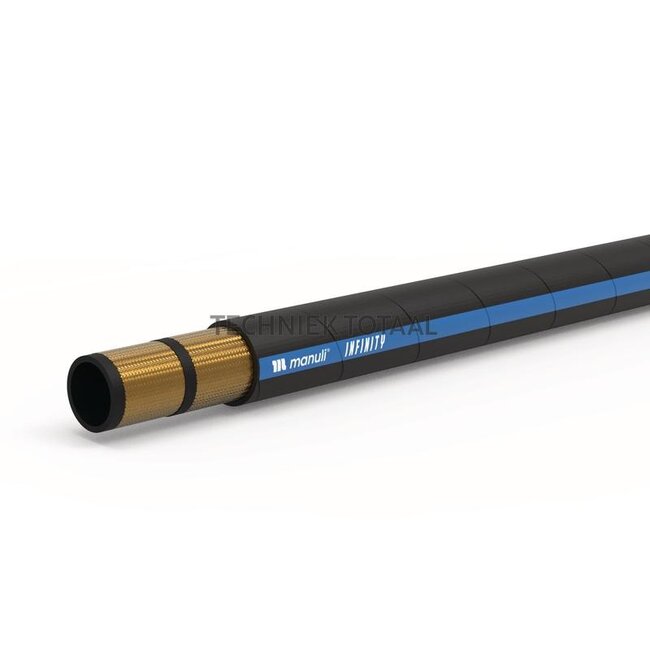

Manuli Hydraulic hose 2SC Infinity DN 06 (1/4"), 450 bar

MANULI hydraulic hose

Replaces: H01164006MBC9

Technical data:

• Type testing: MSHA; CU-TR; FRAS; B
• Bending radius (mm): 45
• Nominal width: DN 6 - 1/4"
• Press fitting (skive): 815M00120-04
• Description: 2 SC, EN857
• Burst pressure (bar): 1800
• Hose type: INFINITY
• Version: 2 steel wire braids
• Comparison no.: H01164006MBC9
• Weight (g/m): 275
• Press fitting (non-skive): 815M03400-04
• Operating pressure max. (bar): 450
• Outer Ø (mm): 13.1
