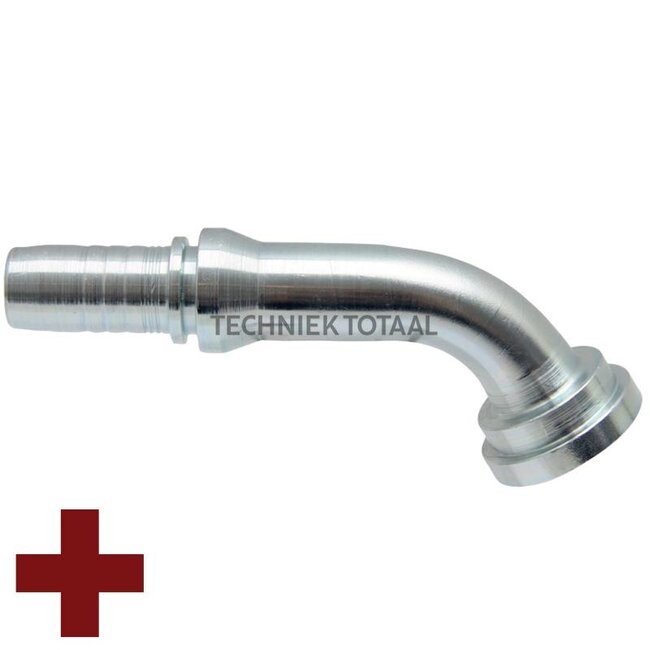

Manuli Swage fitting Spiralfit CAT SAE flange 1", 60°, DN 19

Swage fitting SPIRALFIT

Replaces: M83961-12-16

Technical data:

• S (mm): 14.3
• D (inches): 1"
• Nominal width: DN 19 - 3/4"
• E (mm): 48
• Description: SAE flange, heavy, 60°
• Series: 9000 PSI
• D (mm): 47.7
• A (mm): 107
• Type formula: SFS 60°
• Flange: 1"
• B (mm): 19.5
• Comparison no.: M83961-12-16
