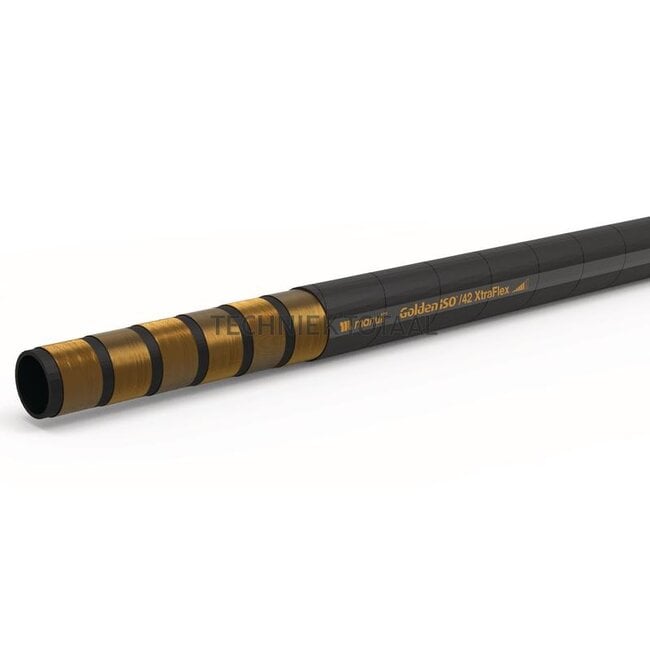

Manuli Hydraulic hose R15 Goldeniso/42 Xtraflex DN 06 (1/4"), 420 bar

MANULI hydraulic hose

Replaces: H10097006MBC9

Technical data:

• Hose type: GOLDENISO
• Nominal width: DN 6 - 1/4"
• Press fitting (skive): 815M00120-04
• Comparison no.: H10097006MBC9
• Burst pressure (bar): 1680
• Bending radius (mm): 45
• Weight (g/m): 284
• Version: 4 steel wire spiral inserts
• Type testing: CU-TR; MSHA; FRAS; B; ABS; BV; LR; RINA; DNV-GL(MED);DNV-GL; MA
• Outer Ø (mm): 13.1
• Operating pressure max. (bar): 420
• Description: R15
