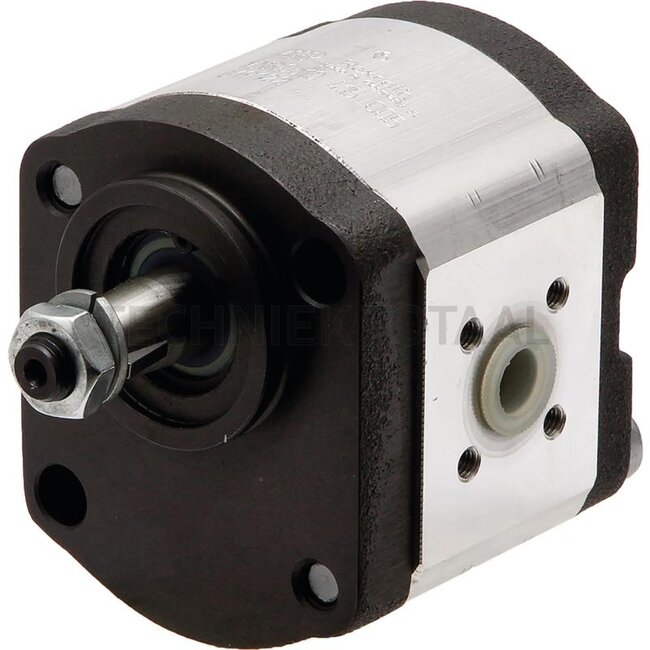

Bosch/Rexroth Hydraulic pump

Clockwise rotating

Replaces: G139860011011, 0510410003, R918C00312

Technical data:

• Output volume (cc/rev): 8
• Min. speed (1/min.): 500
• Line connection pressure side: Ø 35 mm, 4-hole, M6
• Capacity Q (cc/rev): 8
• Bosch no.: 0510415005
• Line connection suction side: Ø 40 mm, 4-hole, M6
• Operating pressure max. (bar): 250
• Adaptor plate hole pattern (mm): 60 x 60 (2 x)
• Max. speed (1/min.): 4000
• Direction of rotation: Right
• Seal material: NBR
• Drive shaft: Taper 1:5, Ø 17 x 17
• Fitting Ø (mm): 50

Suitable for:

Fendt: Favorit 3
