Walterscheid Hydraulic top link cat. 4/45, 594 - 777 mm, stroke 183 mm | 1205131
€3.125,22
€3.055,49 Incl. 21% VAT
€2.525,20 Excl. VAT
Delivery time on request
Stroke (mm): 183 | Description: Product advantages: Suitable for absorbing high tensile and compressive forces All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Val Read more.
Description: <b>Product advantages:</b> Suitable for absorbing high tensile and compressive forces All components can be replaced separately Large range of replacement parts Versatile as different clevises can be attached Long service life Valve block protected with a special reinforced bracket

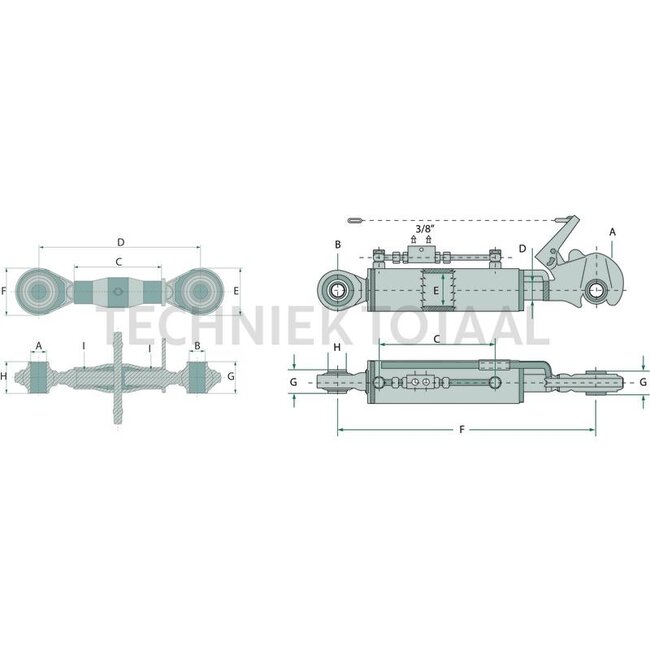

B cat.: 4 / 45
Max. power kW (PS): 294 (400)

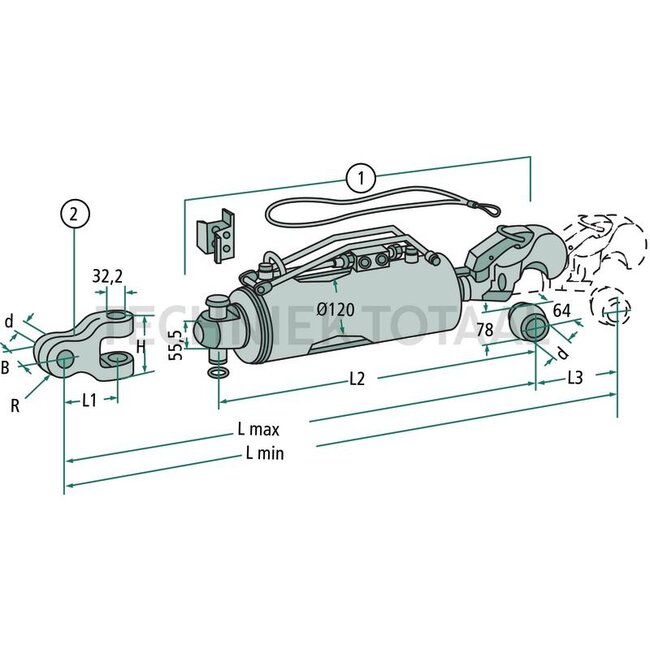

Cylinder Ø inner E (mm): 120
Type: Tail hook/clevis joint
L2 (mm): 594
Tensile force (t): 18,6

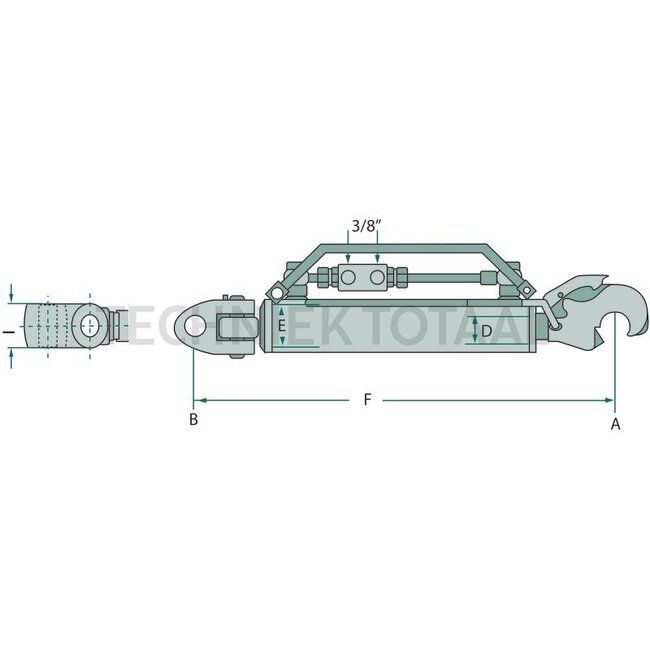

F (mm): 594 / 777
Top link type: hydraulic
A cat.: 4 / 45
Assembly notes: The Walterscheid Cat. 4 hydraulic top link is only suitable for tractors with up to max. 294 kW (400 PS) engine power.
Check valve: Top

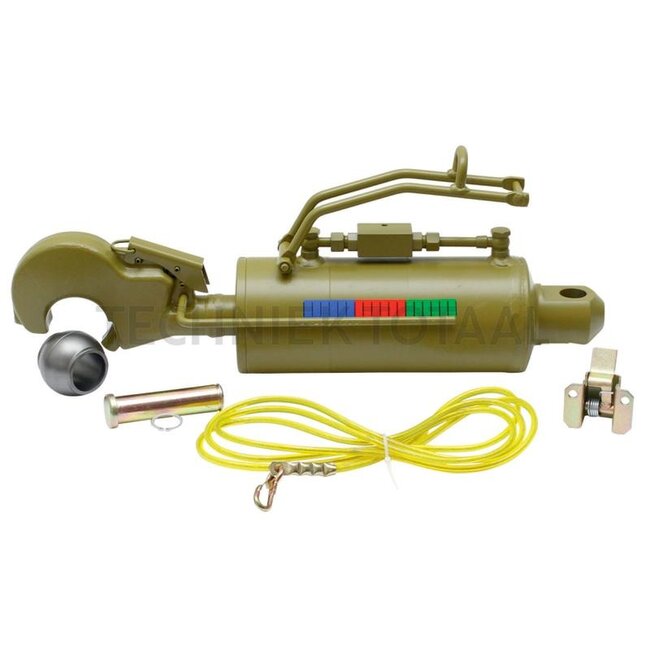

Included in delivery: 1 x hydraulic top link C-120 Cat.4 1 x bolt KPL139 (part number: 395206440) 1 x bracket Cat.2/3 (part number: 395308347) 1 x operating cable (part number: 395307612) 1 x ball sleeve Cat.4HD (part number: 395204783) 1 x marking sticker (part number: 395309530) (Already attached to the cylinder) <b>PLEASE NOTE:</b> hose set and clevis head not included.
