GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100
Menu
EUR
GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100
GRANIT 9,3675 reviews
(0)
-15%
GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100
-15%
GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100
GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100
GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100
GRANIT 9,3675 reviews
0 reviews

GRANIT Hydraulic top link Eco-Line cat. 2/2, 510 - 698 mm, stroke 188 mm | 20010100

€307,00
€260,95 Incl. 21% VAT
€215,66 Excl. VAT
In stock

Type: Tail hook/ball joint Read more.

Found in category:
Tractor & vehicle› Three-point linkage parts› Top links› Hydraulic top links

Larger quantity required?



Product description

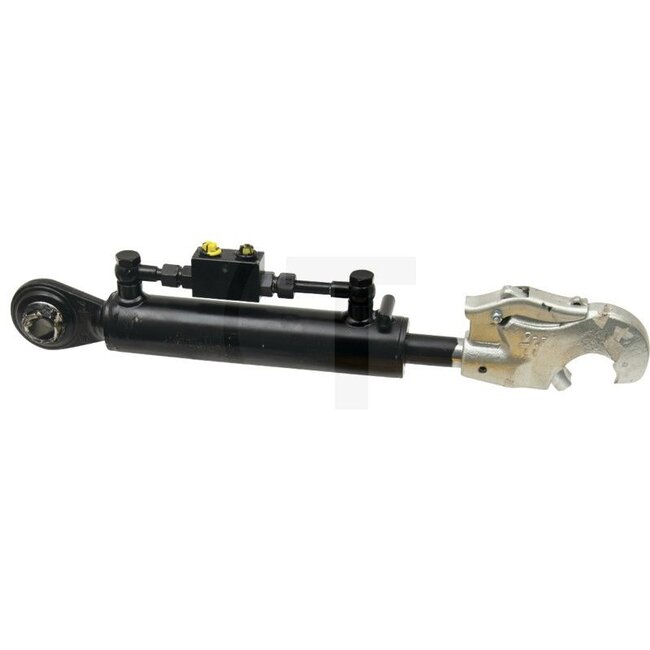

Hydraulic top link tail hook cat. 2 | 525 - 713 mm | Eco-Line

Type: Tail hook/ball joint

Further information

Article number
20010100
EAN Code
4059139176885
SKU
20010100
Top link type
hydraulic
Type
Tail hook/ball joint

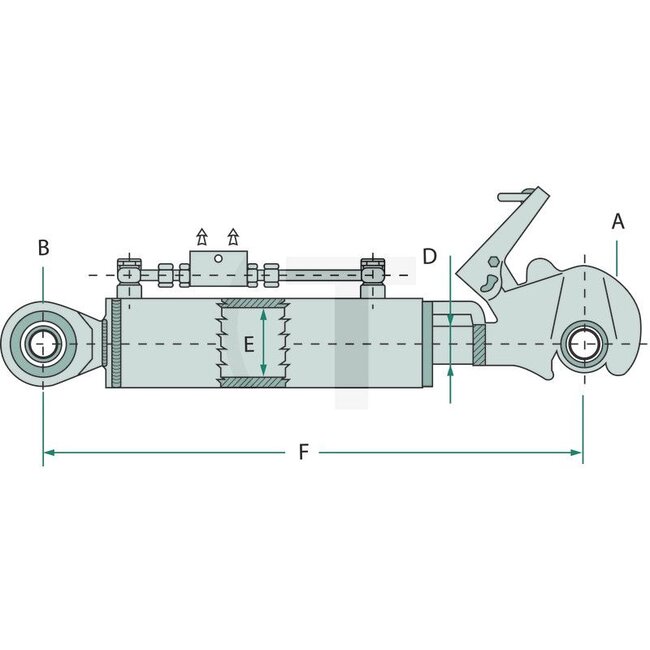

A cat.
2 / 25,4
B cat.
2 / 25,4
F (mm)
525 / 713
Stroke (mm)
188
Piston rod Ø D (mm)
30
Cylinder Ø inner E (mm)
50
Lifting force (t)
3
Tensile force (t)
2
Check valve
top
Screw-in thread
3/8"
