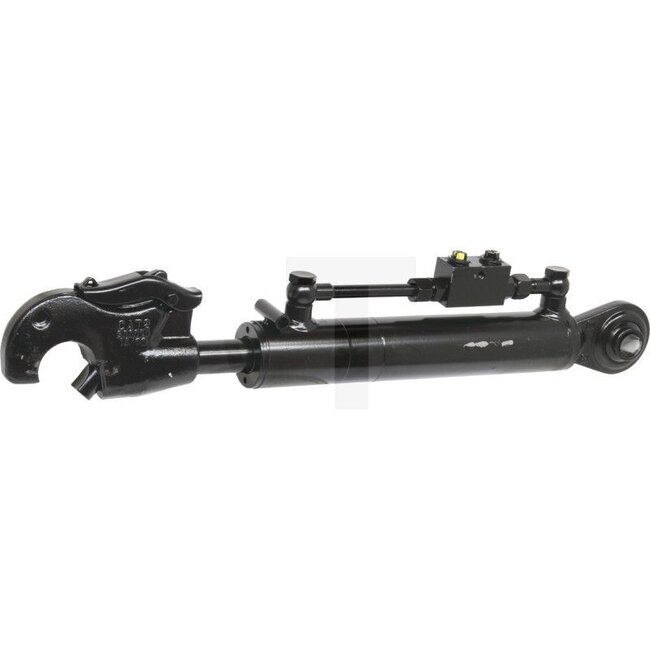

GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm | 20010101
GRANIT 9,4688 reviews
(0)
-10%
GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm | 20010101
-10%
GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm | 20010101
GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm | 20010101
GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm | 20010101
GRANIT 9,4688 reviews
0 reviews

GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm | 20010101

€335,35
€303,40 Incl. 21% VAT
€250,74 Excl. VAT
In stock

Type: Tail hook/ball joint Read more.

Found in category:
Tractor & vehicle› Three-point linkage parts› Top links› Hydraulic top links

Larger quantity required?



Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Product description

Hydraulic top link tail hook cat. 2 | 575 - 813 mm | Eco-Line

Type: Tail hook/ball joint

Further information

Article number
20010101
EAN Code
4059139176892
SKU
20010101
Top link type
hydraulic
Type
Tail hook/ball joint

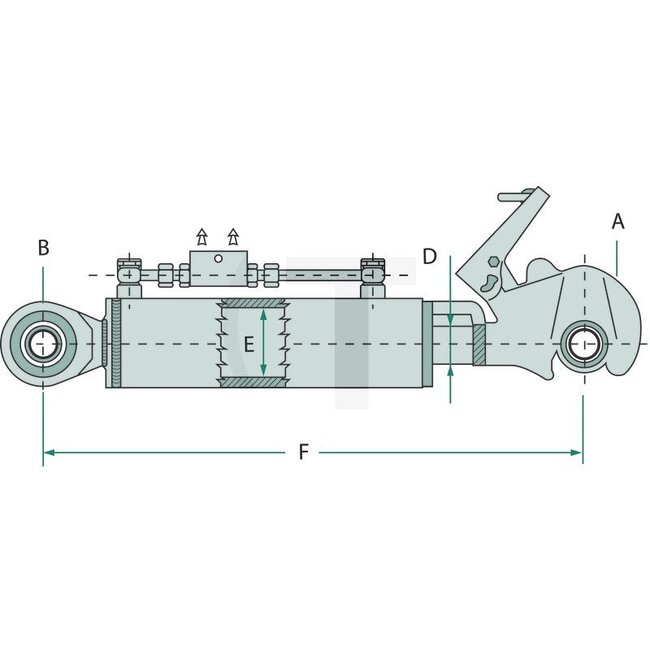

A cat.
2 / 25,4
B cat.
2 / 25,4
F (mm)
575 / 813
Stroke (mm)
238
Piston rod Ø D (mm)
30
Cylinder Ø inner E (mm)
50
Lifting force (t)
3
Tensile force (t)
2
Check valve
top
Screw-in thread
3/8"

Reviews

Related products

27082026 (13466) ab-1-merk-oud5 (5833) tt-2025 (5913)
Any questions about this product?
Or do you need any help ordering? Feel free to get in touch with our support department at [email protected]. We're happy to help!

Recently viewed

GRANIT Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm
10%
GRANIT
Hydraulic top link Eco-Line cat. 2/2, 560 - 798 mm, stroke 238 mm
Type: Tail hook/ball joint
€335,35 €277,15 €303,40 €250,74

GRANIT Hydraulic top link cat. 3/3, 747 - 1047 mm, stroke 300 mm, Ø 80 mm
10%
GRANIT
Hydraulic top link cat. 3/3, 747 - 1047 mm, stroke 300 mm, Ø 80 mm
A cat.: 3 / 32. B cat.: 3 / 32. F: 747 / 1047 mm. Piston rod Ø D: 40 mm. Cylinde...
€666,41 €550,75 €602,90 €498,26

GRANIT Hydraulic top link cat. 2, 368 - 463 mm, stroke 95 mm, Ø 50 mm
10%
GRANIT
Hydraulic top link cat. 2, 368 - 463 mm, stroke 95 mm, Ø 50 mm
A cat.: 2 / 25,4. B cat.: 2 / 25,4. F: 368 / 463 mm. Piston rod Ø D: 30 mm. Cyli...
€429,18 €354,69 €388,30 €320,91

Hydraulic top link cat. 1, 352 - 447 mm, stroke 95 mm
5%
Hydraulic top link cat. 1, 352 - 447 mm, stroke 95 mm
A cat.: 1 / 19. B cat.: 1 / 19. F: 352 / 447 mm. Piston rod Ø D: 30 mm. Cylinder...
€538,62 €445,14 €511,65 €422,85


Further information

Article number
20010101
EAN Code
4059139176892
SKU
20010101
Top link type
hydraulic
Type
Tail hook/ball joint
A cat.
2 / 25,4
B cat.
2 / 25,4
F (mm)
575 / 813
Stroke (mm)
238
Piston rod Ø D (mm)
30
Cylinder Ø inner E (mm)
50
Lifting force (t)
3
Tensile force (t)
2
Check valve
top
Screw-in thread
3/8"
