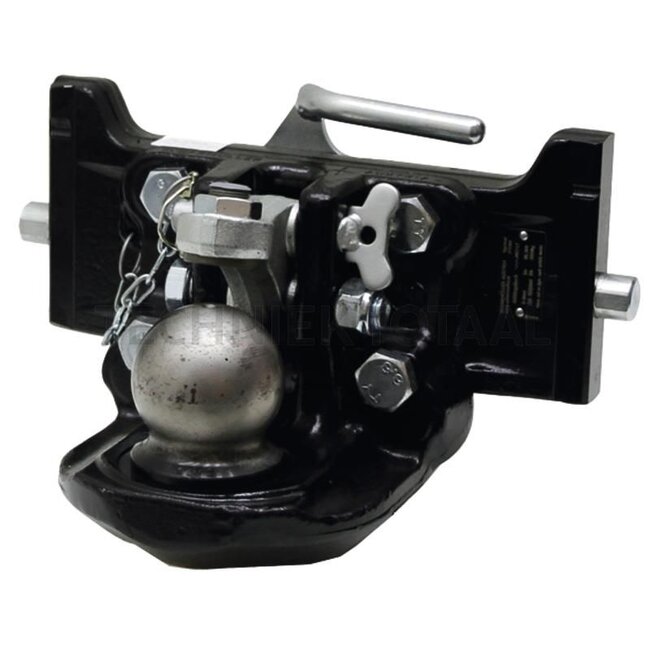

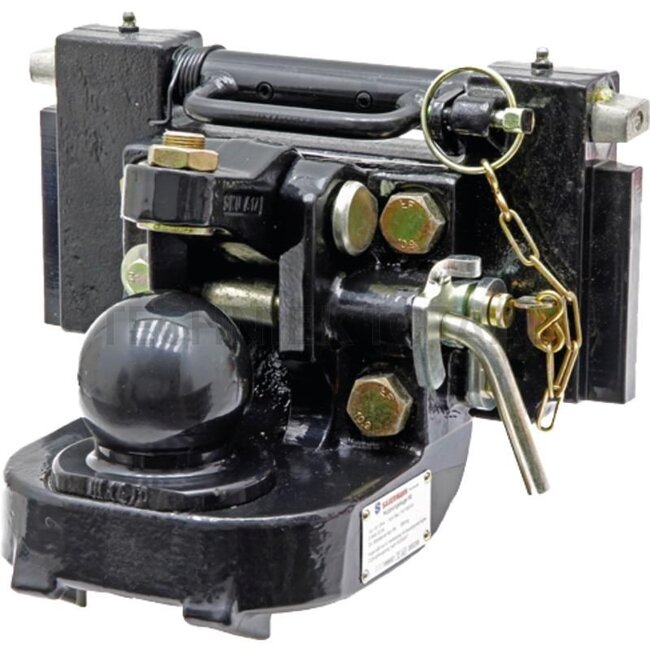

This Scharmüller K80 drawbar with manual locking has a rail width of 322 mm, a 22 mm diameter detent pin and a guide width of 30 mm. The load capacity is 3000 kg and the D-value 89,3 kN. The plate height is 150 mm, the overhang 155 mm and the hole M20, with a hole pattern of 140 x 80 mm. The product is black and height adjustable with a handle. It is an inner part and fits tractors from Claas, Massey Ferguson and McCormick.
Reference numbers:7.6322.42-A02, 07.6322.42-A02
Arion 510, Arion 520, Arion 530, Arion 540, Arion 610, Atles 915, Atles 925, Atles 926, Atles 935, Atles 936, Atles 946, Axion 920, Axion 930, Axion 940, Axion 950, Serie Arion, Serie Atles, Serie Axion
6445, 6455, 6460, 6465, 6470, 6475, 6480, 6497, 6613 Dyna 6, 6614 Dyna 6, 6615 Dyna 6, 6616 Dyna 6, 6713S, 6714S, 6715S, 6716S, 6718S, 7615 Dyna 6, 7616 Dyna 6, 7618 Dyna 6, 7715/S, 7716/S, 7718/S, 8170, 8180, 8210, 8220, 8240, 8250, 8260, 8270, 8280, Serie 6400, Serie 6600, Serie 6700S, Serie 7600, Serie 7700/S, Serie 8100, Serie 8200
ZTX 230, ZTX 260, ZTX 280, Serie ZTX
| Article number | 77707632242 |
|---|---|
| Weight | 32 kg |
| Rail width | 322 mm |
| Detent pin Ø | 22 mm |
| Guide width | 30 mm |
| Load capacity | 3000 kg |
| D-value | 89,3 kN |
| Plate height | 150 mm |
| Colour | Black |
| Overhang | 155 mm |
| Description | Height adjustable with handle |
| Hole (mm) | M20 |
| Hole pattern | 140 x 80 mm |
| Lock | K80 manual |
