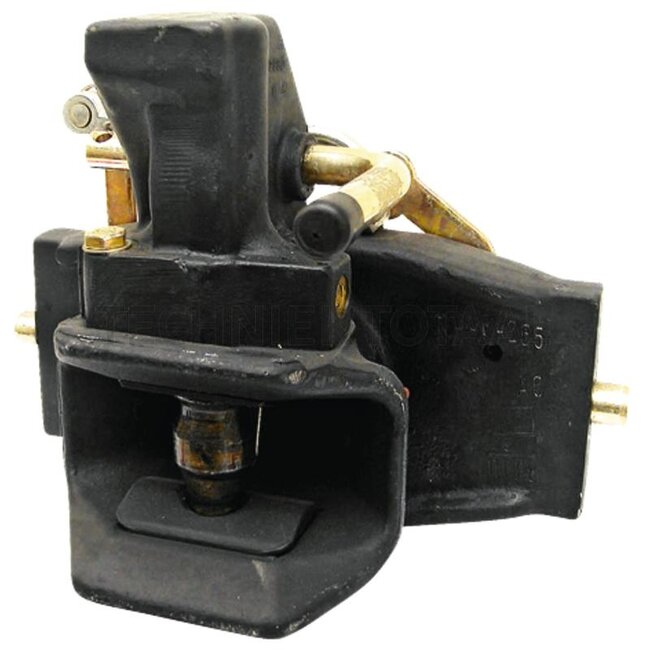

Walterscheid Inner part

Replaces: 8004191

Technical data:

• Load capacity (kg): 2000
• Description: This product is an automatic trailer hitch. The jaw dimensions and area of application comply with DIN 11028, RREG 2009/144/EC, VO (EU) 2015/208, UN ECE R147 and class c40. The hitch is designed with a lever trigger system, i.e. the coupling process is triggered by moving a drawbar eye into the jaw and pressing back the trigger lever. The hitch is normally closed and locked. This version has a spherical hitch bolt (D: 37 mm) and can be pivoted 360°. The torque required for this purpose is 100 to 150 Nm. The automatic trailer hitch is only offered as a height-adjustable inner part and can only be operated in hitch supports with quick height adjustment. The areas of application include use on agricultural or forestry vehicles, self-propelled work machines and trailers. Advantages: quick height adjustment, made of forged material, hitch bolt can be freely rotated 360 degrees
• Guide width (mm): 30
• Colour: Black
• D-value (kN): 120,5
• Lock: Automatic, spherical hitch bolt
• Rail width (mm): 322
• Assembly notes: Suitable for drawbar eyes according to DIN 11026 (ISO 5692-2)/DIN 11043/DIN 74054 (ISO 8755)/DIN 9678 (ISO 5692-1).
• Detent pin Ø (mm): 22
• Connecting pin (mm): 37

Suitable for:

Case IH: MX 180 Magnum, MX 200 Magnum, MX 220 Magnum, MX 240 Magnum, MX 270 Magnum

Claas: Atles 915, Atles 925, Atles 926, Atles 935, Atles 936, Atles 946, Axion 920, Axion 930, Axion 940, Axion 950

Deutz-Fahr: Agrotron 230, Agrotron 260, Agrotron 230 MK3, Agrotron 260 MK3, Agrotron New 210, Agrotron New 215, Agrotron New 235, Agrotron New 265, Agrotron X710, Agrotron X720

JCB: Fastrac 8250

Lamborghini: R8.215, R8.230, R8.265, R8.270, Traction 265, Victory 230, Victory 260

Massey Ferguson: 6485 Tier 3, 6490 Tier 3, 6495 Tier 3, 6497 Tier 3, 6499 Tier 3, 8170, 8180, 8210, 8220, 8240, 8250, 8260, 8270, 8280

McCormick: ZTX 230, ZTX 260, ZTX 280

Renault: Ares 715, Ares 725, Ares 735, Ares 815, Ares 825, Ares 836, Atles 915, Atles 925, Atles 935

Same: Diamond 215, Diamond 230, Diamond 260, Diamond 265, Diamond 270
