Product description

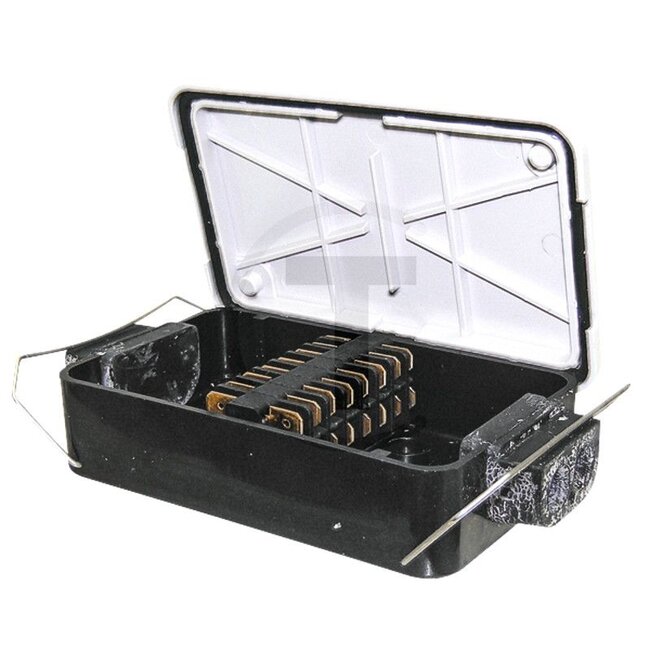

Junction box

Version: 16 blade connections
Number of connections: 32
Mounting: Blade connection
Connection system: 16 x 2
inputs/outputs: 6
Inlet Ø (mm): 2 x 10 + 1 x 3, outlet Ø (mm): 2 x 10 + 1 x 3
Bore: 2, bore Ø (mm): 4
Housing type: Housing with plastic cover
Protection type: IP6K
Material: Plastic, length x height x width (mm): 120 x 36 x 87

Connection: 16 x 2

Hole Ø (mm): 4

Width (mm): 120

Height (mm): 36

Material: Plastic

Plug width (mm): 6,3

Housing: With plastic cover

Depth (mm): 87

Protection class: IP 6K

Number of pins: 16

Additional information: • Number of connections: 32
• Number of inlets/outlets: 6
• Inlet Ø 1 (mm): 10
• Inlet Ø 2 (mm): 10
• Inlet Ø 3 (mm): 3
• Outlet Ø 1 (mm): 10
• Outlet Ø 2 (mm): 10
• Outlet Ø 3 (mm): 3
• Number of holes: 2
• Spacing of the fixing holes (mm): 30

Mounting type: Blade terminal connection
