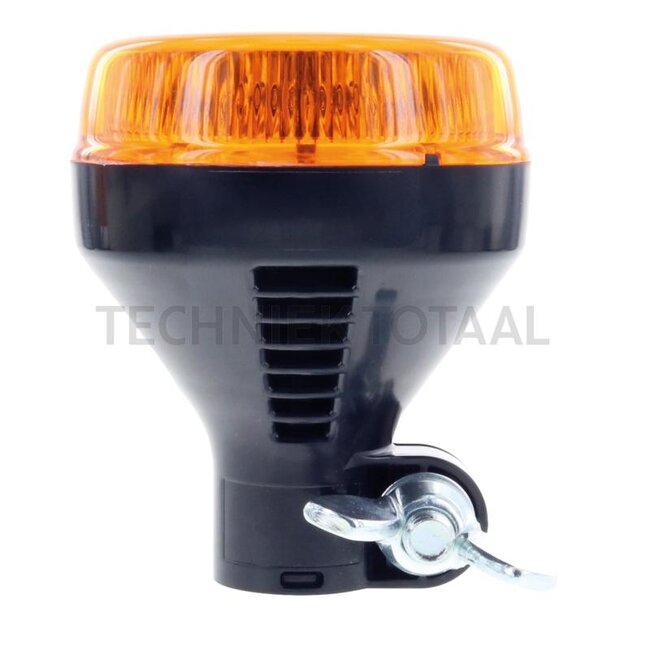

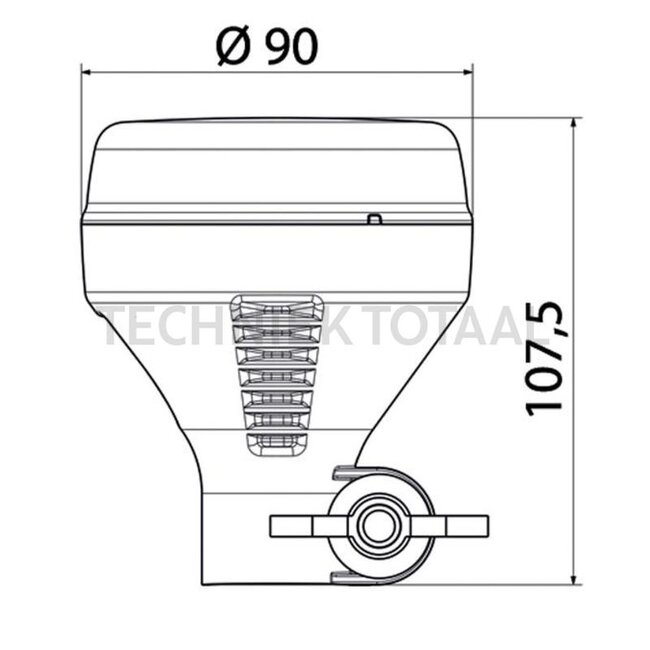

The Vignal LED flashing light ATLASSINO has a diameter of 90 mm and a height of 107,5 mm, with a black polycarbonate housing. The light is yellow / orange, the light function is double flash, and the form is compact. The nominal voltage is 10 - 30 V, power consumption 16W and 7W, and the temperature range -40°C / +80°C. The protection class is IP6K9K, and it is protected against reverse polarity. Fixing via pipe socket mounting (DIN 14620), connection ISO DIN 14620B; LED bulbs are included.
| Article number | 19419702 |
|---|---|
| Weight | 340 g |
| Colour | yellow / orange |
| Bulbs included | yes |
| Form | compact |
| Power consumption | 16W, 7W |
| Height | 107,5 mm |
| Housing colour | black |
| Protection class | IP6K9K |
| EMC | CISPR25 Klasse 5, ECE R10 |
| Bulb | LED |
| Test mark | ECE R65, R10 SEA, EMC |
| Light function | Double flash light |
| Nominal voltage | 10 - 30 V |
| Additional information | Protected against reverse polarity |
| Connection | ISO DIN 14620B |
| Material | Polycarbonate |
| Fixing | Pipe socket mounting (DIN 14620) |
| Diameter | 90 mm |
| Temperature range | -40°C / +80°C |
