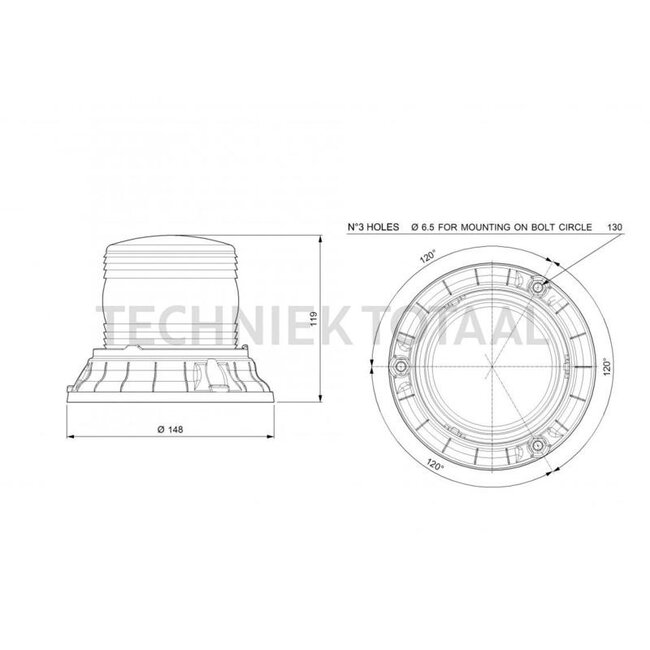

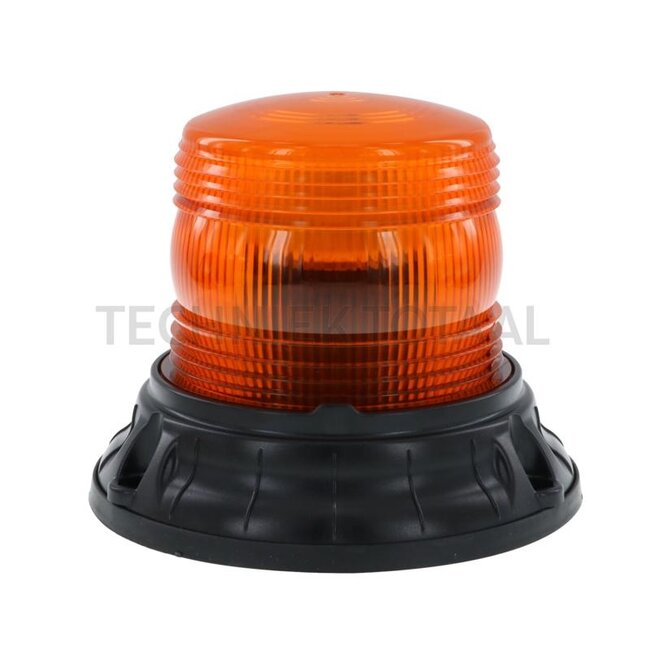

Vignal LED rotating beacon with a diameter of 148 mm and a height of 119 mm, featuring a polycarbonate housing in black and a yellow/orange lens. The bulb is an LED with double flash light and is supplied with the bulb included. Mounting is done with 3 bolts. The nominal voltage is 10 - 110 V, the power consumption 1.5 W at 12 V, 3.6 W at 24 V and 12 W at 80 V. The cable length is 0.2 m, the temperature range -40°C to +65°C, the protection class IP6K9K, and it is protected against reverse polarity. Test mark ECE R10. Suitable for Linde and Still.
X35/40/45/50/E35/40/45/50 (1254-01)
RX60 25-35 (6301-6309, 6316-6320), RX60 35-50 (6331-6337), RX70 20-35 (7381-7384, 7389, 7390), RX70 20-35 (7385-7388, 7391, 7392), RX70 20-35 (7394-7399), RX70 20-35 (7400-7405)
| Article number | 19417177 |
|---|---|
| Weight | 360 g |
| Additional information | Protected against reverse polarity |
| Connection | Cable lead |
| Height | 119 mm |
| Diameter | 148 mm |
| Fixing | 3 screws |
| Power consumption | 1,5W à 12V - 3,6W à 24V - 12W à 80V |
| Cable length | 0,2 m |
| Temperature range | -40°C / +65°C |
| Protection class | IP6K9K |
| Nominal voltage | 10 - 110 V |
| Housing colour | black |
| Bulbs included | yes |
| Bulb | LED |
| Material | Polycarbonate |
| Colour | yellow / orange |
| Schwingungsfestigkeit | ISO16750-3 Lebensdauer: > 20.000 Stunden |
| Test mark | ECE R10 |
| Light function | Double flash light |
