GRANIT LED main headlight
Technical data:
- EMC: CISPR 25 class 3
- Light function: Dipped beam
- Theoretical luminous flux (lm): 2380
- Current (A): [email protected] [email protected]
- Power (watts): 17
- Voltage range (V): 10 - 30
- Cable length (mm): 145
- Light colour (K): 6.000
- Bulbs included: Yes
- Form: Round
- Test mark: ECE R10, R149, CE, UKCA, RoHS
- Nominal voltage (V): 12 / 24
- Additional information: 5400 lm
- Protection class: IP6K9K
- Depth (mm): 76
- Housing material: Aluminium
- No. of LEDs: 6
- Connection: H11 connector

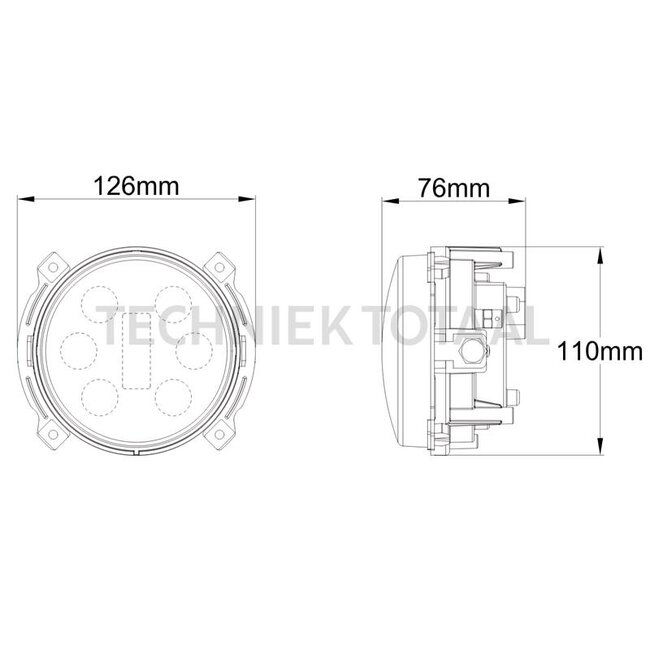

- Dimensions W x H x D (mm): 126 x 110 x 76
- Effective luminous flux (lm): 1600
- Bulb: LED
Suitable for:
Valtra-Valmet: T133, T153, T163, T173, T183, T193, T203, T213
