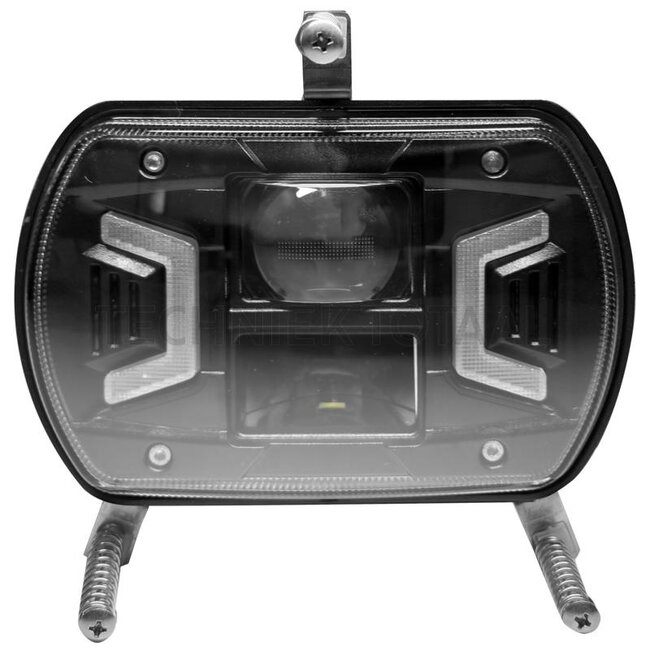

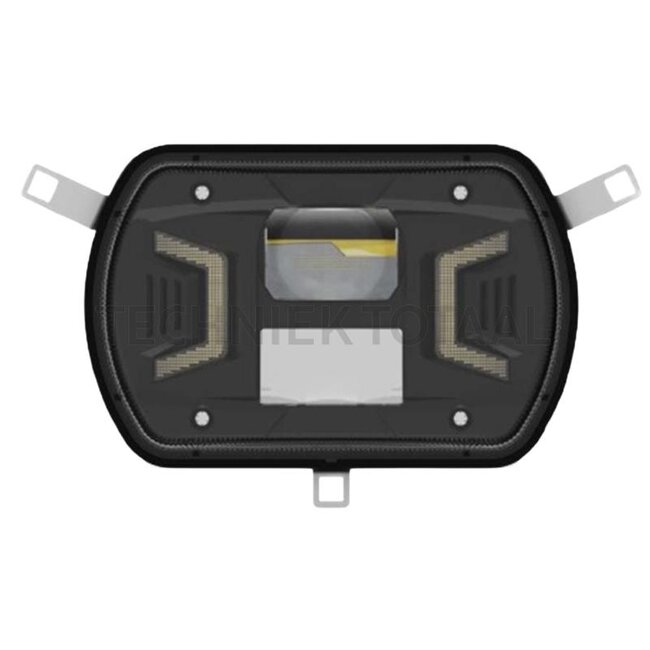

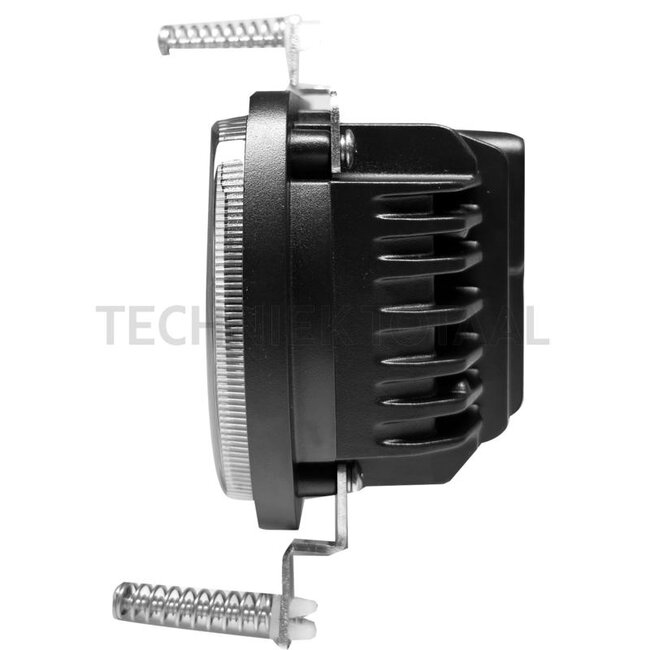

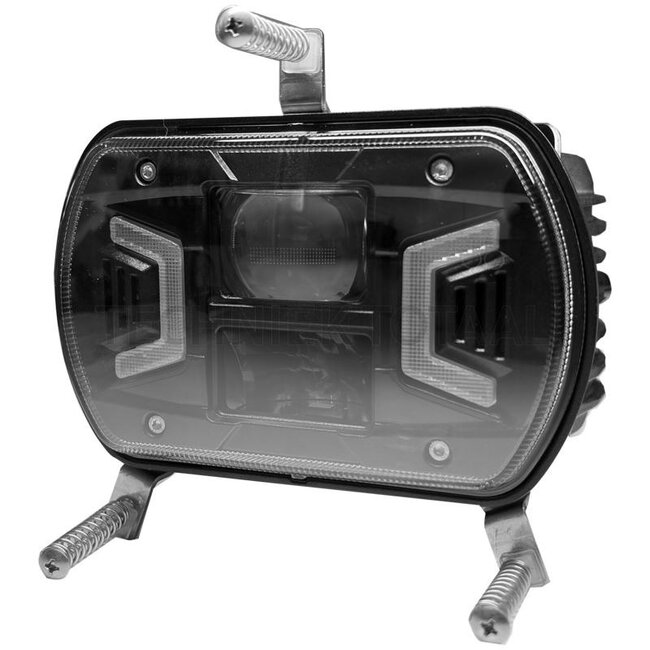

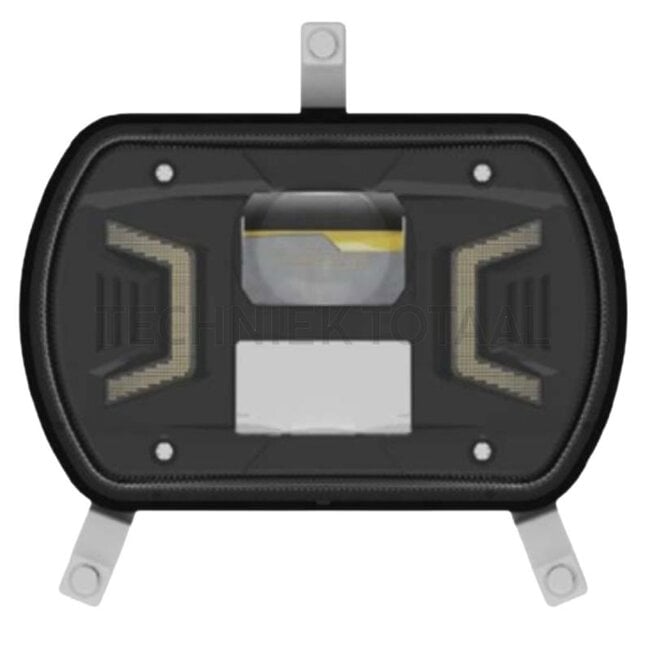

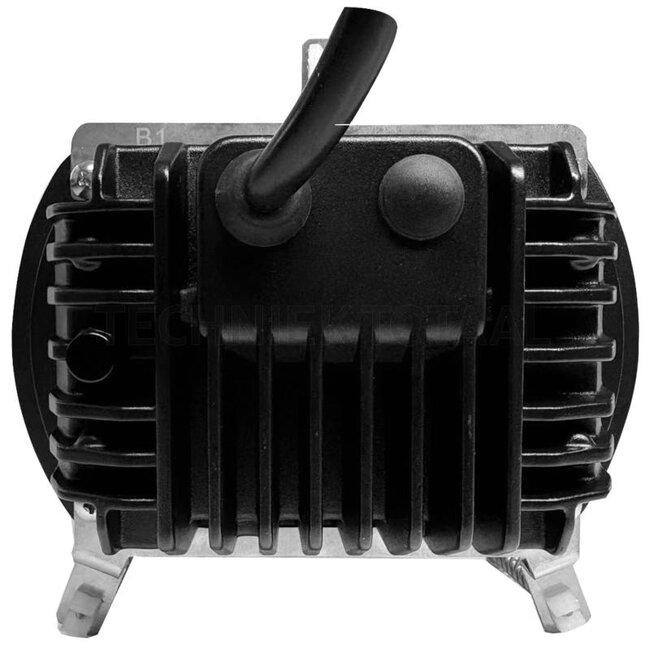

GRANIT LED main headlight
Technical data:
- Power consumption (W): Abblendlicht: 25W (25W x 1 LED) Fernlicht: 50W (25W x 2 LED) Positionslicht: 9W (0.5W x 18 LED)
- Bulb: LED

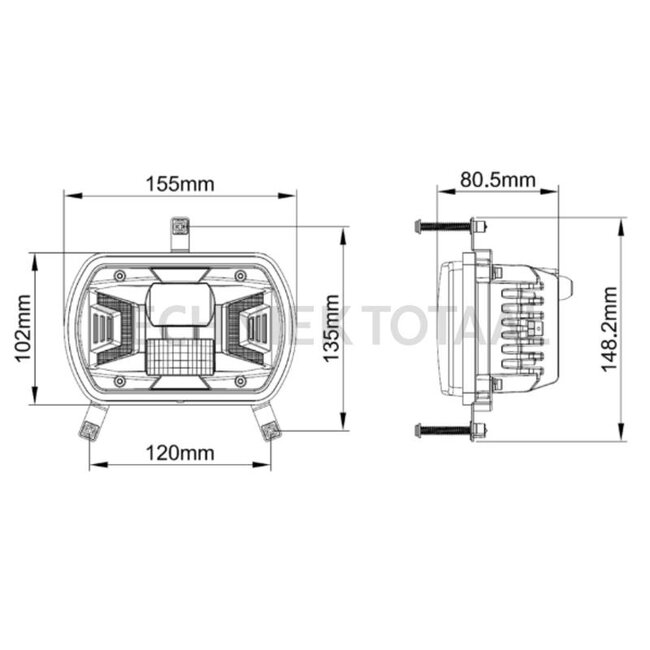

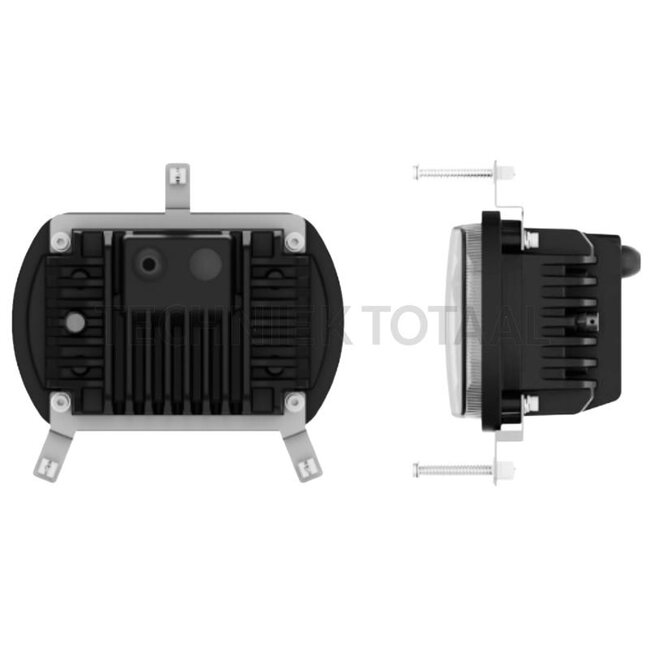

- Installation location: Two installation options
- Light function: Full beam, dipped beam, position light
- Bulbs included: Yes
- Connection: H4, wired
- Voltage range (V): 10 - 30

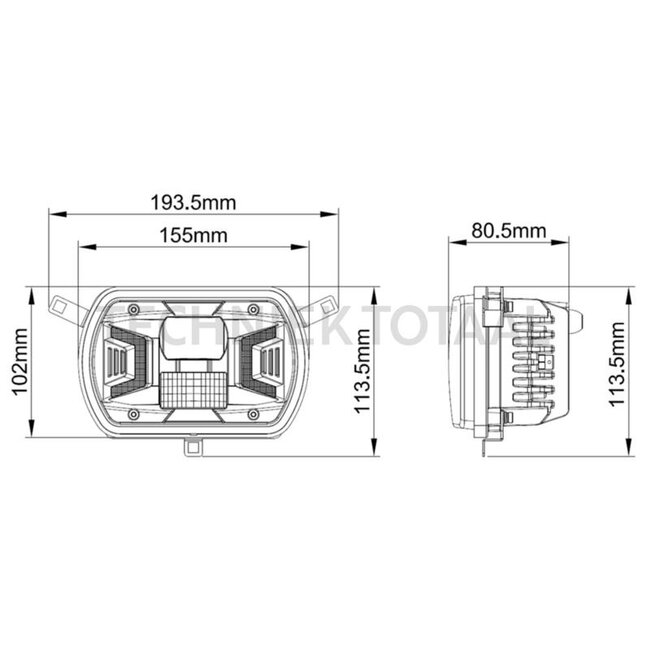

- Dimensions W x H x D (mm): 155 x 102 x 80,5
- Operating temperature (°C): -40°C / +80°C
- Test mark: UKCA, RoHS, CE, ECE R10, R148, R149
- Form: Rectangular
- Additional information: Theoretical/effective luminous flux: Dipped beam: 2000/1400 lm Full beam: 4500/3000 lm [email protected] [email protected] [email protected] [email protected]
- EMC: CISPR 25 class 3
- Light colour (K): 6.000
- Colour: Black
- Protection class: IP69K
- Nominal voltage (V): 12 / 24

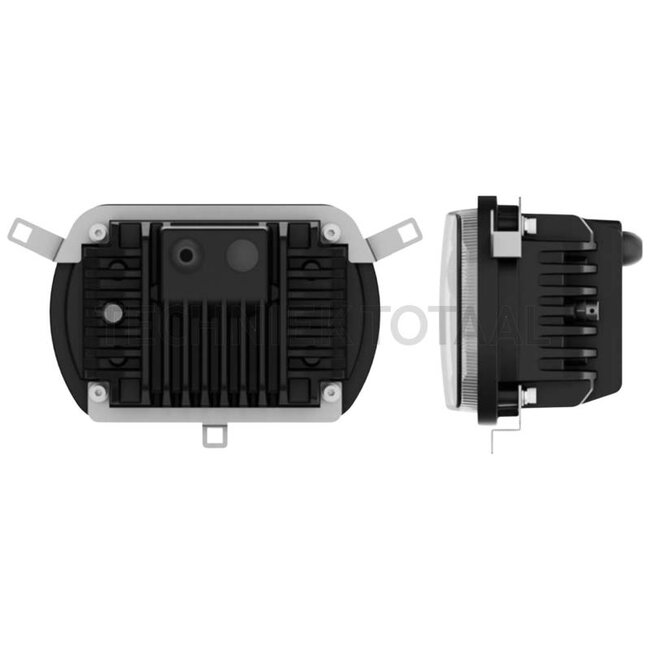

- Housing material: Aluminium
- Material: Polycarbonate
Suitable for:
New Holland: TD60, TD70, TD80, TD90, TD95, TN55, TN65, TN70, TN75, TT50 (3/09-12/15), TT55 (1/03-12/15), TT65 (3/09-12/15), TT75 (1/08-12/15)
