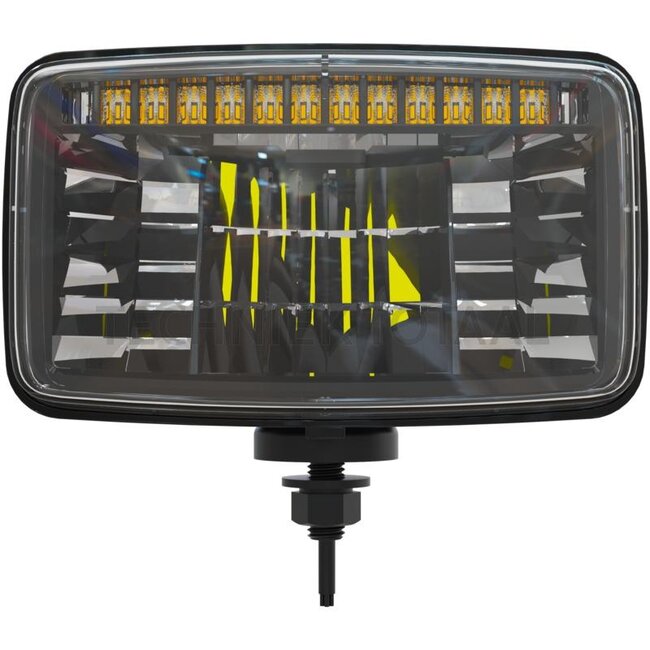

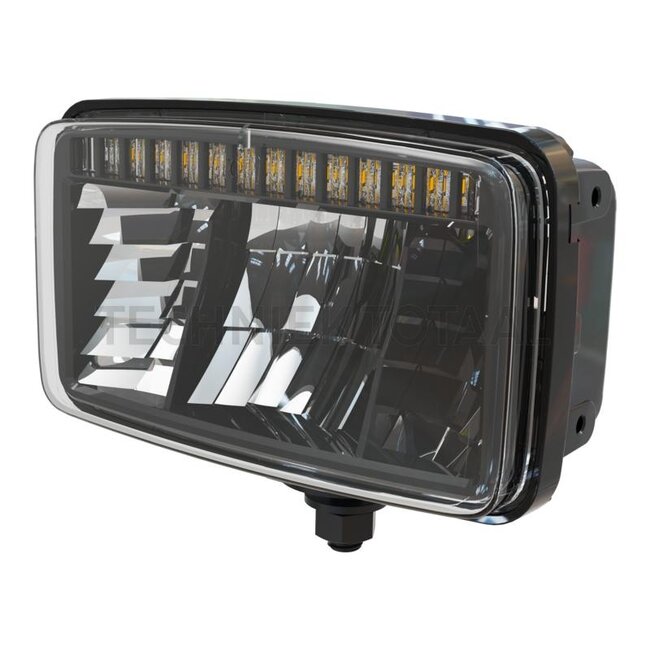

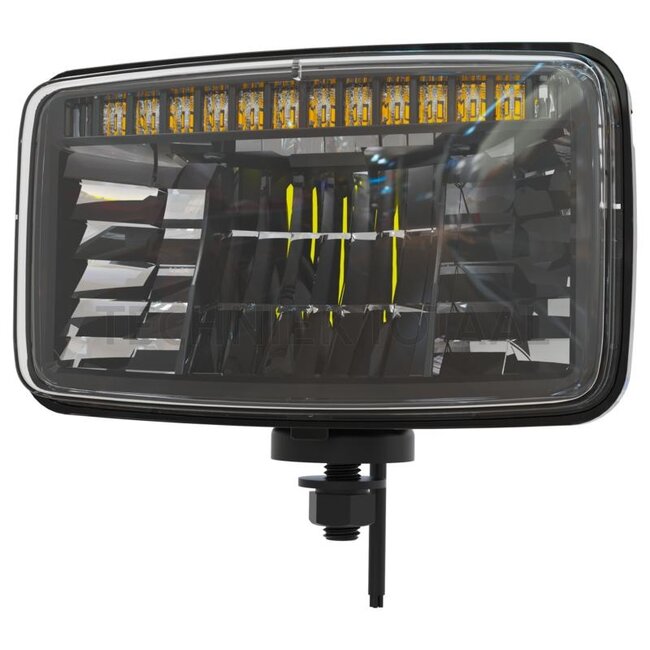

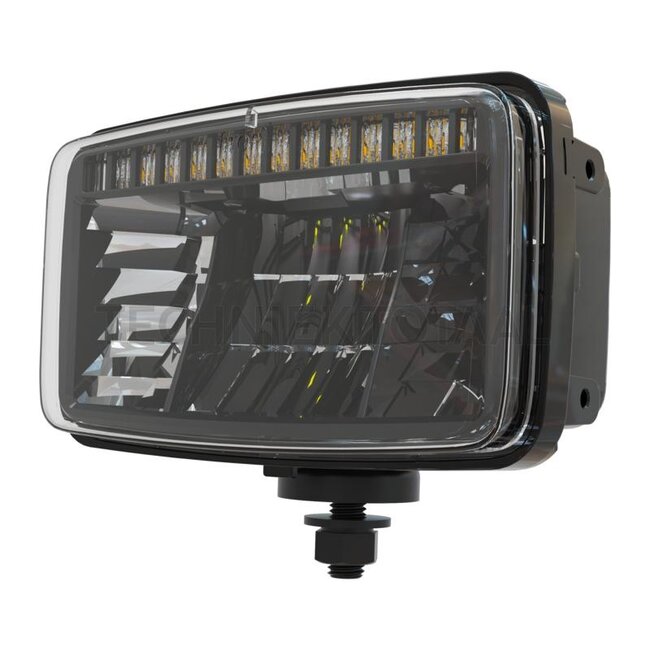

GRANIT LED main headlight

Technical data:

• Form: Rectangular
• Protection class: IP6K9K / IP67
• Test mark: ECE R10, R148, R149, CE UKCA, ROHS
• Light colour (K): 5.700 - 6.500
• Housing colour: Black
• Operating temperature (°C): -40 / +50°C
• Additional information: Theoretical luminous flux: Dipped beam: 2400 lm + full beam: 2250 lm Effective luminous flux: Dipped beam: 1400 lm + full beam: 1200 lm Current: Dipped beam: 1.83 A Full beam: 1.67 A
• Housing material: Aluminium
• Power consumption (W): Abblendlicht: 22 W Fernlicht: 20 W Tagfahrlicht: 6 W Standlicht: 3 W
• Cable length (mm): 400
• Bulb: LED
• Nominal voltage (V): 12 / 24
• Voltage range (V): 10 - 30

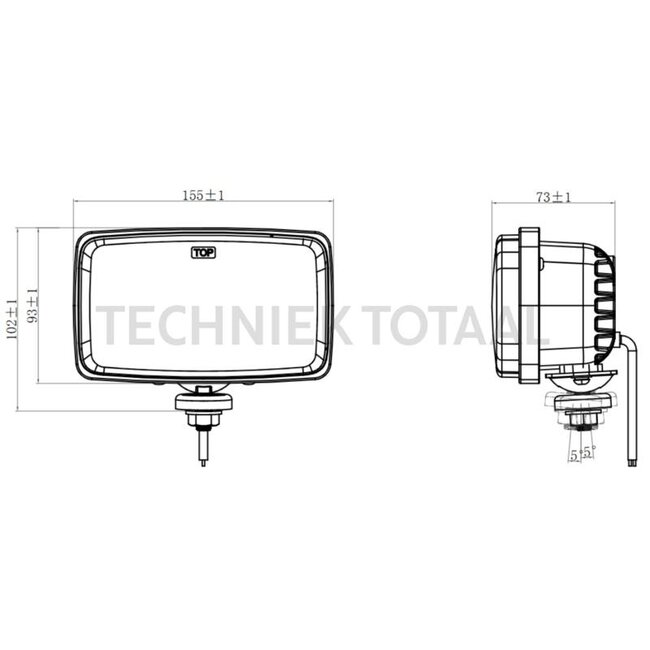

• Dimensions W x H x D (mm): 155 x 102 x 73
• Light function: Dipped beam, full beam, daytime running light, side light
• Connection: H4
• Bulbs included: Yes
• EMC: CISPR 25 class 3

Suitable for:

Challenger: MT 525B AutoPower VI, MT 525B AutoPower VI Tier 3, MT 525B Techstar CVT, MT 525B Techstar CVT Tier 3, MT 545B Techstar CVT, MT 635B, MT 645B, MT 655B, MT 665B

Massey Ferguson: 5410, 5410 Tier 3, 5420 Tier 3, 5425, 5425 Tier 3, 5430 Tier 3, 5435, 5435 Tier 3, 5440 Tier 3, 5445, 5445 Tier 3, 5450 Tier 3, 5455, 5455 Tier 3, 5460, 5460 Tier 3, 5460 Tier 3 Sisu Motor, 5465, 5465 Tier 3 Perkins Motor, 5465 Tier 3 Sisu Motor, 5470, 5470 Tier 3, 5475 Tier 3 Perkins Motor, 5475 Tier 3 Sisu Motor, 5480 Tier 3, 6445, 6445 Tier 3, 6455, 6455 Tier 3, 6460, 6460 Tier 3, 6465, 6465 Tier 3 Perkins Motor, 6465 Tier 3 Sisu Motor, 6470, 6470 Tier 3, 6475, 6475 Tier 3 Perkins Motor, 6475 Tier 3 Sisu Motor, 6480, 6480 Tier 3 Perkins Motor, 6480 Tier 3 Sisu Motor, 6485, 6485 Tier 3, 6490, 6490 Tier 3, 6495, 6495 Tier 3, 6497, 6497 Tier 3, 6499 Tier 3, 7465, 7465 Tier 3 Perkins Motor, 7465 Tier 3 Sisu Motor, 7475, 7475 Tier 3 Perkins Motor, 7475 Tier 3 Sisu Motor, 7480, 7480 Tier 3 Perkins Motor, 7480 Tier 3 Sisu Motor, 7485, 7485 Tier 3 Dyna VT, 7490, 7490 Tier 3 Dyna VT, 7495, 7495 Tier 3 Dyna VT, 7497 Tier 3, 7499 Tier 3, 8450 Tier 3, 8450 Tier2, 8460 Tier 3, 8460 Tier2, 8470 Tier 3, 8470 Tier2, 8480 Tier 3, 8480 Tier2
