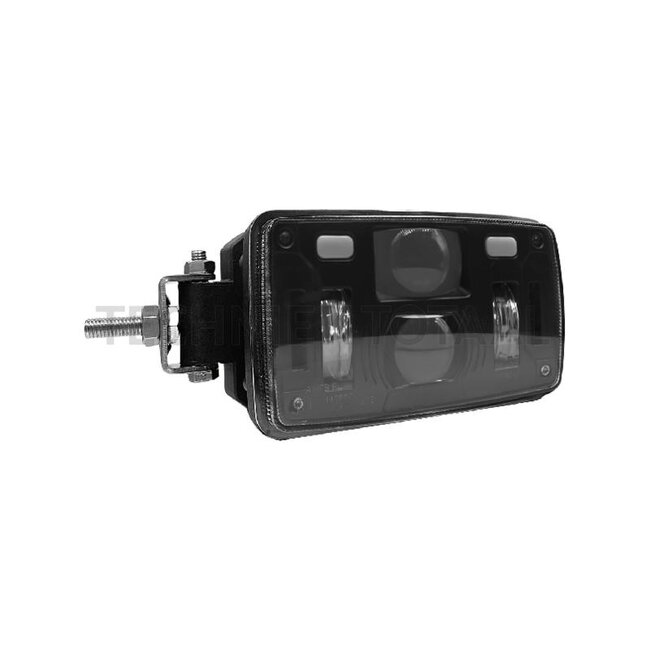

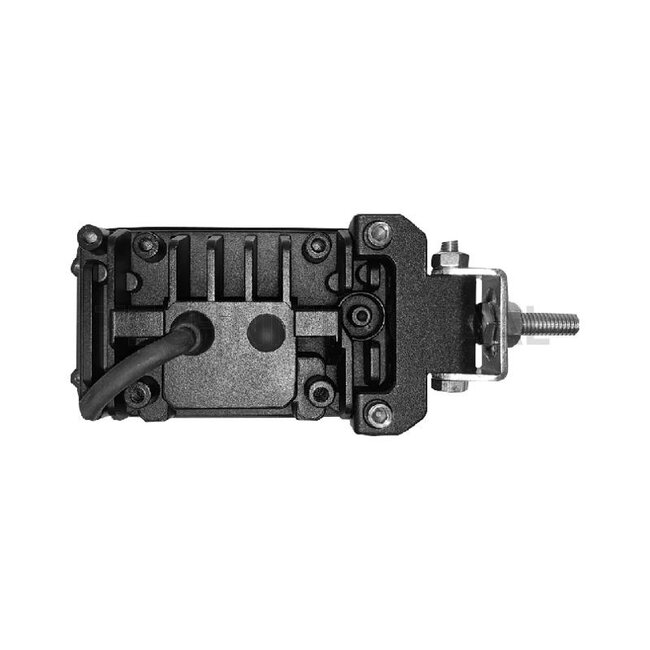

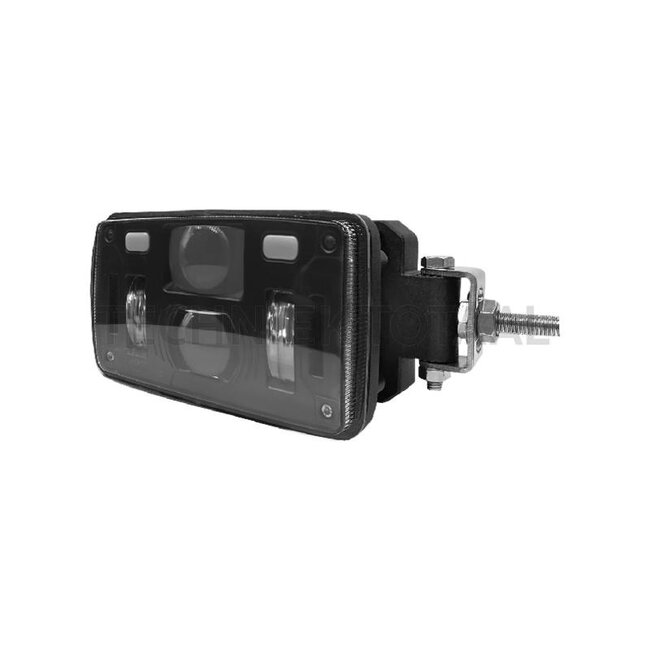

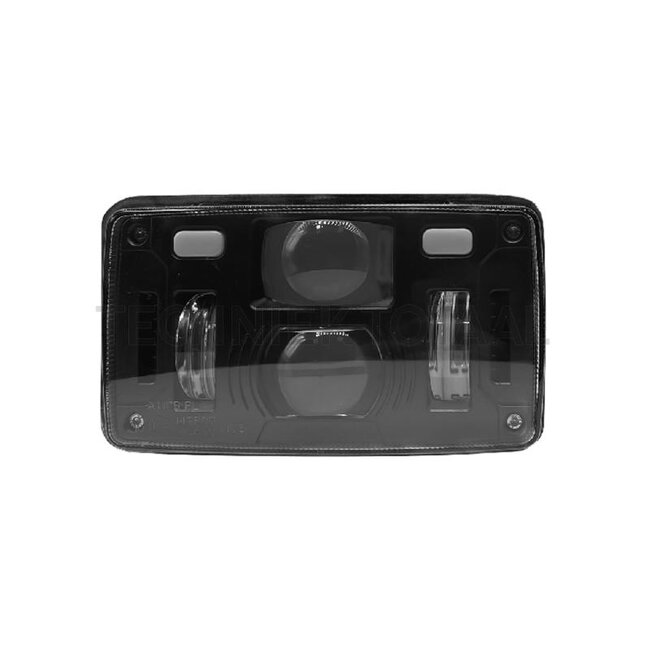

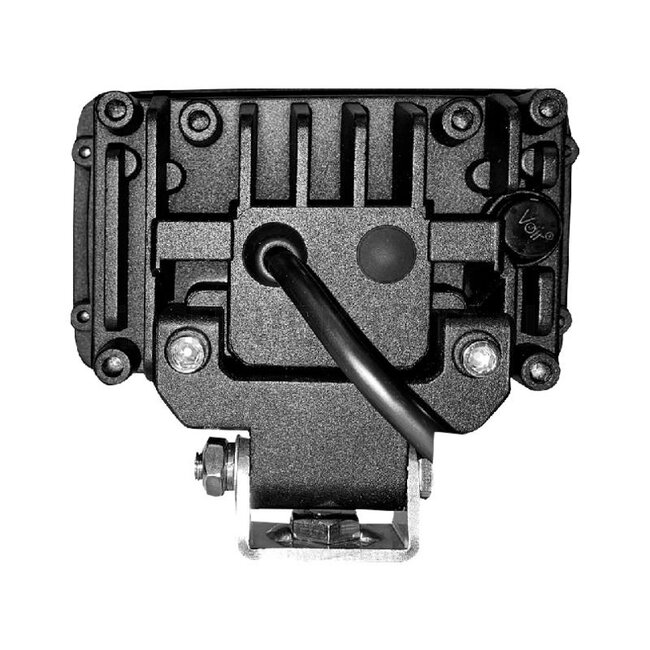

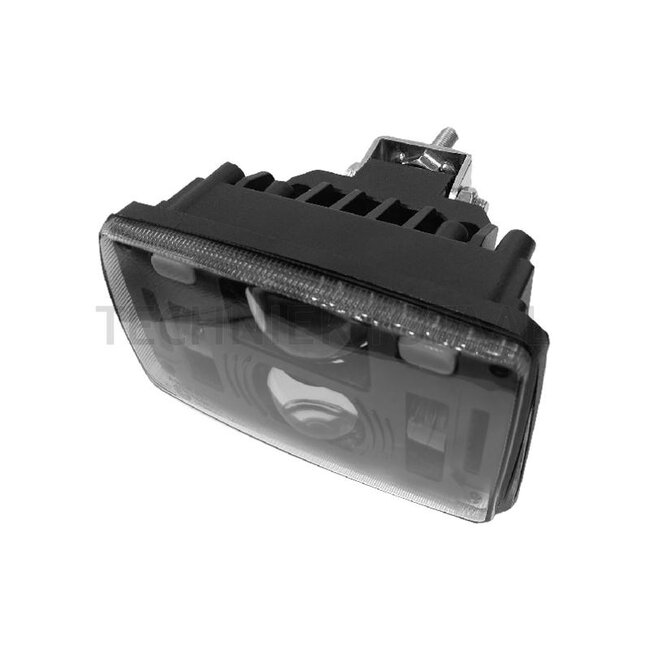

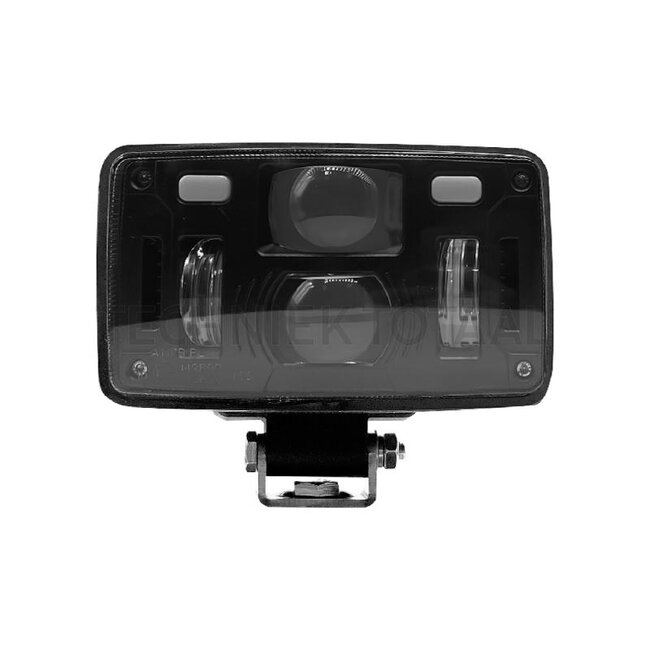

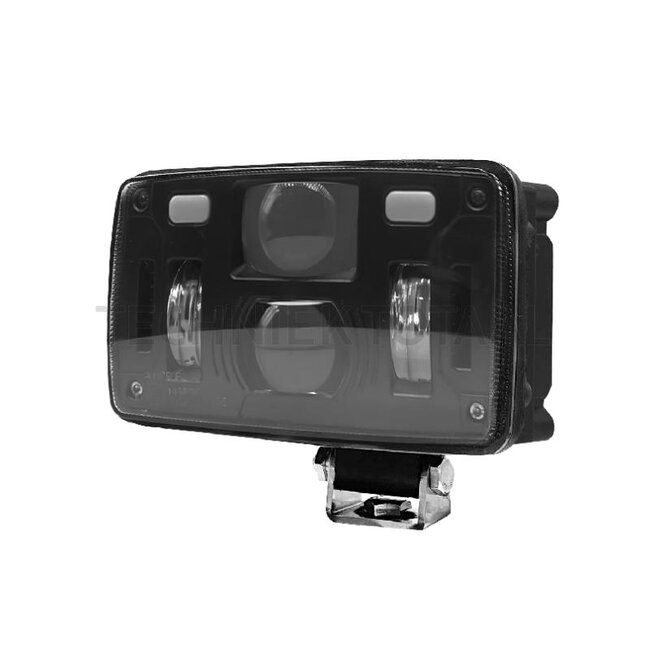

GRANIT LED main headlight

Technical data:

• Depth (mm): 82
• EMC: CISPR 25 class 3

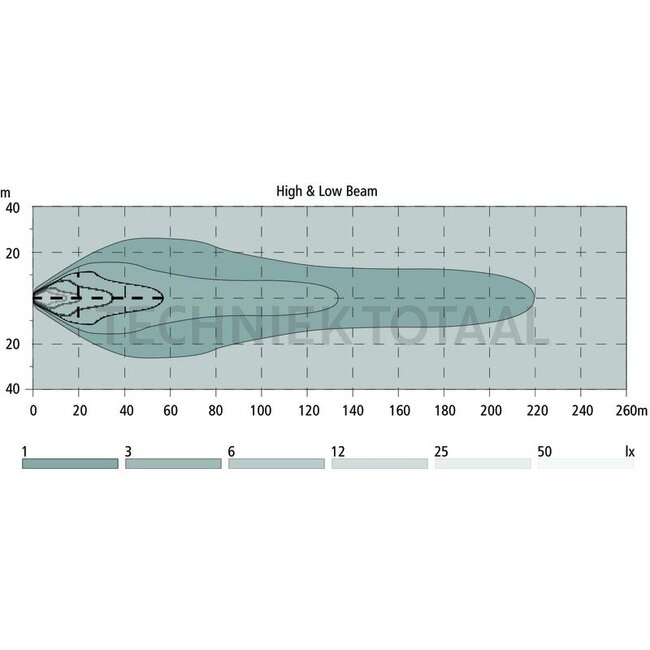

• Light function: Full beam/dipped beam/position light
• Cable length (m): 0.18
• No. of LEDs: 9
• Housing material: Aluminium
• Additional information: Theoretical luminous flux: 4000 lm Effective luminous flux: 2500 lm
• Light colour (K): 6000
• Mounting size (mm): 122
• Height (mm): 92
• Fixing: U-bolt
• Protection class: IP69K
• Test mark: ECE R10, CE, UKCA
• Power consumption (W): 55
• Connection: H4
• Voltage range (V): 10 - 30

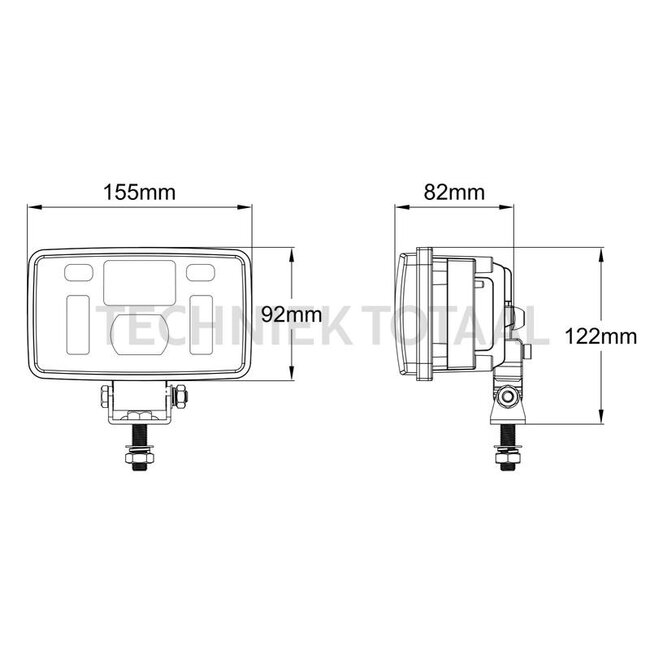

• Dimensions W x H x D (mm): 155 x 92 x 82
• Bulbs included: Yes
• Bulb: LED
• Nominal voltage (V): 12 / 24
• Operating temperature (°C): -40 / +50°C
• Form: Rectangular
• Plug: H4
• Width (mm): 155

Suitable for:

John Deere: 5070M, 5075M, 5080M, 5085M, 5090M, 5100M, 5115M, 5080R, 5080RN, 5090R, 5090RN, 5100R, 5100RN, 6090MC, 5620, 5720, 5820, 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, SE6100, SE6200, SE6300, SE6400, 6110, 6210, 6310, 6410, 6510, 6610, 6810, 6910, 6910S, SE6010, SE6110, SE6210, SE6310, SE6410, SE6510, SE6610, 6215 (PC4367), 6715, 6120, 6120 (PC4356), 6220, 6320, 6320 (PC4357), 6420, 6420 (PC4357), 6420S, 6520, 6620, 6820, 6920, 6920S, SE6020, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620, 6130, 6430, 6530, 6534, 6630, 6830, 6930, 7130, 7230
