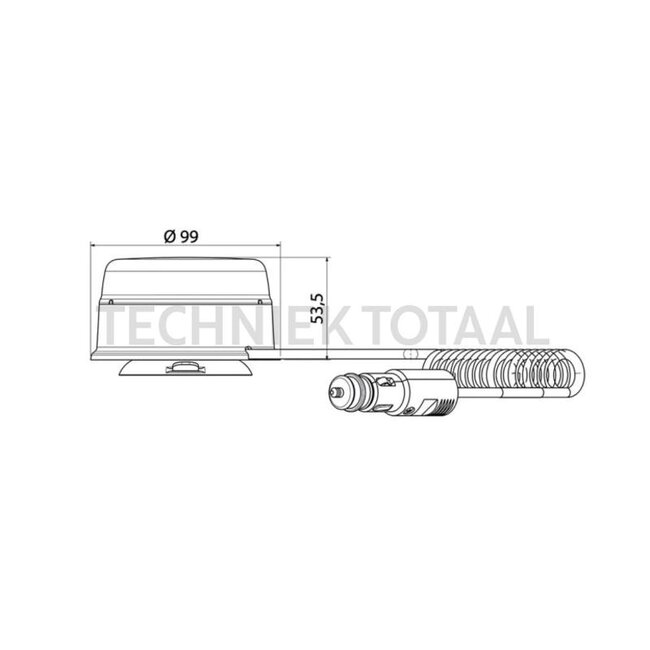

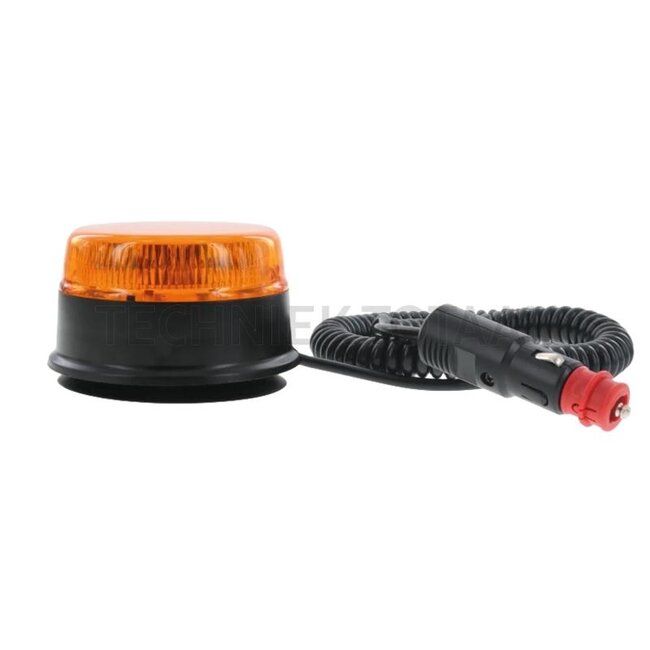

The LED rotating beacon ATLASSINO from Vignal has a diameter of 99 mm and a height of 53,5 mm. The colour is yellow/orange with a black polycarbonate housing. It is magnetically fixed and connects via the cigarette lighter, with a nominal voltage of 10 - 30 V. The light function is double flash, the bulb is LED and the protection class is IP6K9K. The temperature range is -40°C to +80°C. The product is protected against reverse polarity and complies with ECE R65, R10 SAE and EMC.
| Article number | 18425037 |
|---|---|
| Weight | 460 g |
| Fixing | magnetic |
| EMC | CISPR25 Class 5, ECE R10 |
| Housing colour | black |
| Bulbs included | yes |
| Type | Magnetic base, suction cup with spiral cable for cigarette lighter socket |
| Material | Polycarbonate |
| Protection class | IP6K9K |
| Light function | Double flashing light |
| Colour | yellow / orange |
| Diameter | 99 mm |
| Form | compact |
| Height | 53,5 mm |
| Bulb | LED |
| Test mark | ECE R65, R10 SAE, EMC |
| Temperature range | -40°C / +80°C |
| Additional information | Protected against reverse polarity |
| Power consumption | 16W, 7W |
| Connection | Cigarette lighter |
| Nominal voltage | 10 - 30 V |
