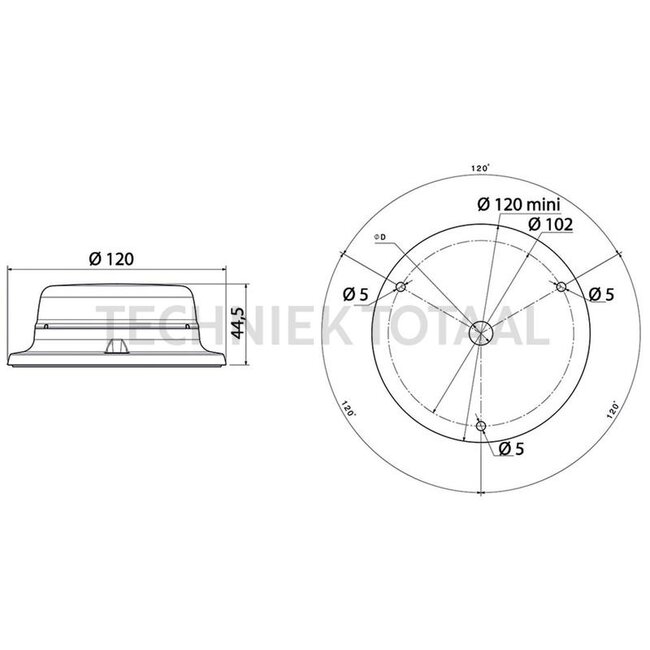

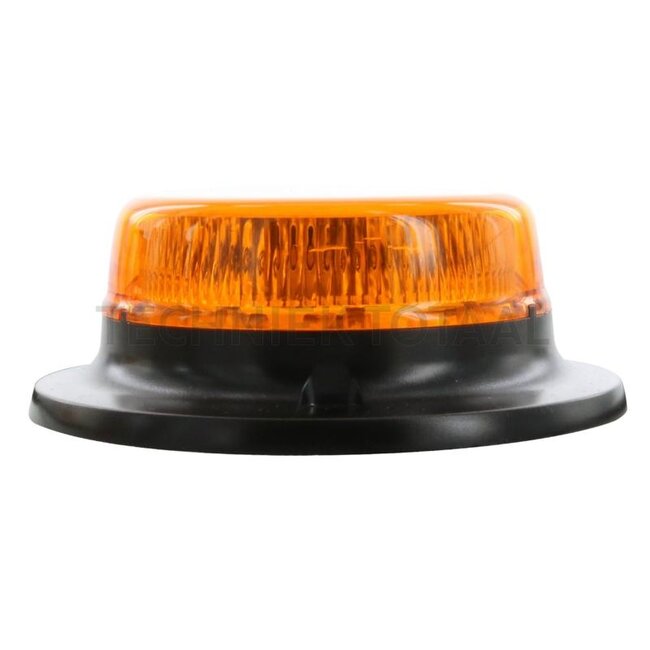

ATLASSINO LED flashing light by Vignal in orange, with a diameter of 120 mm and a height of 44,5 mm. The nominal voltage is 10 - 30 V. The housing is black and made of polycarbonate. The bulb is an LED and is included. The light has a double flash function and a cable connection with a side cable outlet and 3 screws for fixing. Power consumption is 16W and 7W. The light is protected against reverse polarity and has protection class IP6K9K. The temperature range is -40°C to +80°C. Test marks: ECE R65, R10, SEA, EMC.
| Article number | 18534889 |
|---|---|
| Weight | 260 g |
| Colour | yellow / orange |
| Diameter | 120 mm |
| Bulb | LED |
| Connection type | side cable outlet |
| Height | 44,5 mm |
| Temperature range | -40°C / +80°C |
| Material | Polycarbonate |
| EMC | CISPR25 Class 5, ECE R10 |
| Protection class | IP6K9K |
| Fixing | 3 screws |
| Power consumption | 16W, 7W |
| Test mark | ECE R65, R10, SEA, EMC |
| Housing colour | black |
| Nominal voltage | 10 - 30 V |
| Form | compact |
| Additional information | Protected against reverse polarity |
| Bulbs included | yes |
| Connection | cable strand |
| Light function | Double flash light |
