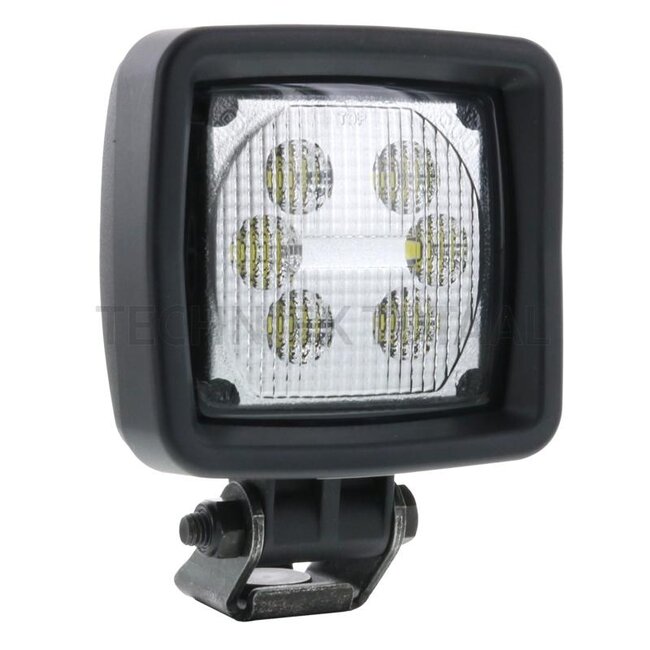

LED work light from Vignal with a power of 29 watts and a luminous flux of 2.000 lm, suitable for 12 / 24 V. The light has an eckig form, a light colour of 6.000 K and a Flutlicht light function. The housing is aluminium and the dimensions are 102 x 97 x 63 mm. It is rated IP68 and IP69K, has an operating temperature of -40°C / +85°C and bulbs are included. Mounting is zum Anschrauben, with a DT 2-pin connection plug. Test marks: ISO 13766, ISO 14982 and ISO 12985.
| Article number | 19187595 |
|---|---|
| Weight | 660 g |
| Voltage range | 10 - 30 V |
| Light colour | 6.000 K |
| Form | rectangular |
| Bulbs included | yes |

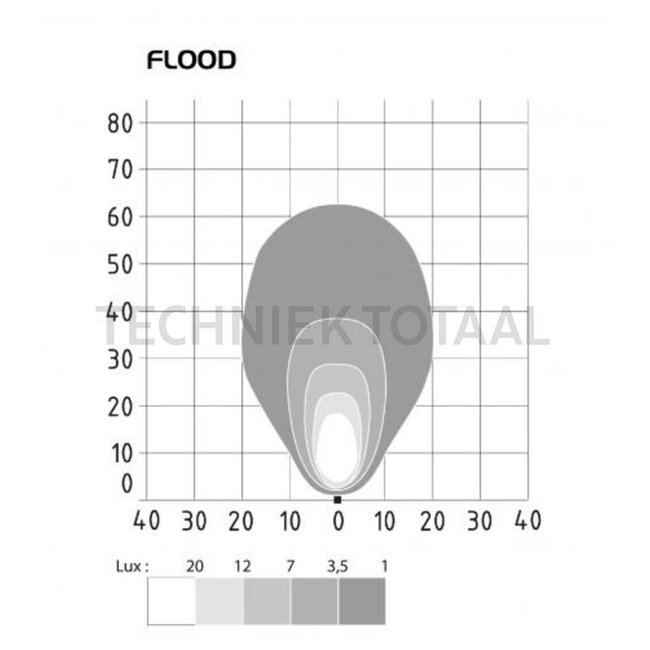

| Light function | Floodlight |
| Material | Tempered glass |
| Test mark | ISO 13766 - ISO 14982 - ISO 12985 |
| Protection class | IP68, IP69K |
| Nominal voltage | 12 / 24 V |
| Housing material | Aluminium |

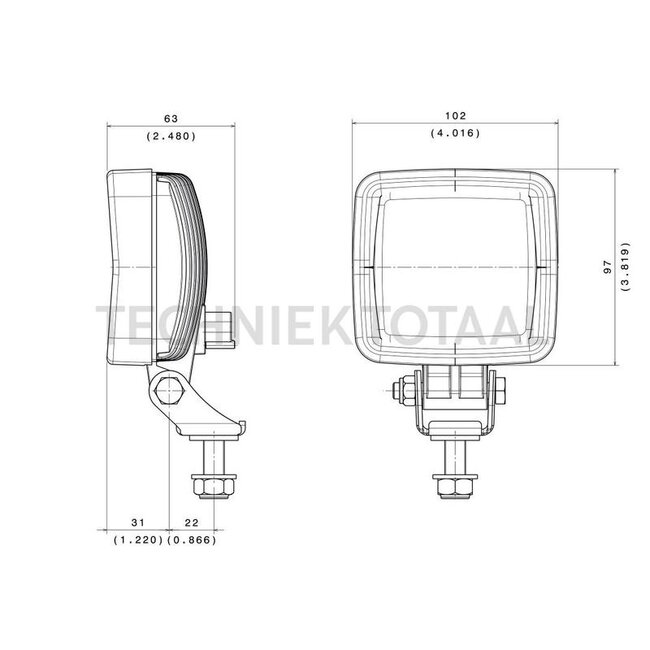

| Dimensions W x H x D | 102 x 97 x 63 mm |
| Power | 29 watts |
| Current | 1,2 AMP / 24V |
| Fixing | Socket |
| Additional information | Protected against reverse polarity 36V CONTINUOUS / ISO 7637-2 Pulse 5a Salt spray test: ISO 9227 Vibration resistance: 15 Grms, from 24Hz to 2000Hz Shock resistance: 60G Lifespan: 30.000 operating hours |
| Luminous flux | 2.000 lm |
| Mounting type | For screw mounting |
| EMC | CISPR25 Class 5 |
| Description | Full power at +35°C ambient temperature, 25 % dimmed at +50°C ambient temperature |
| Bulb | LED |
| Connection | DT 2-pin connector |
| Operating temperature | -40°C / +85°C |
