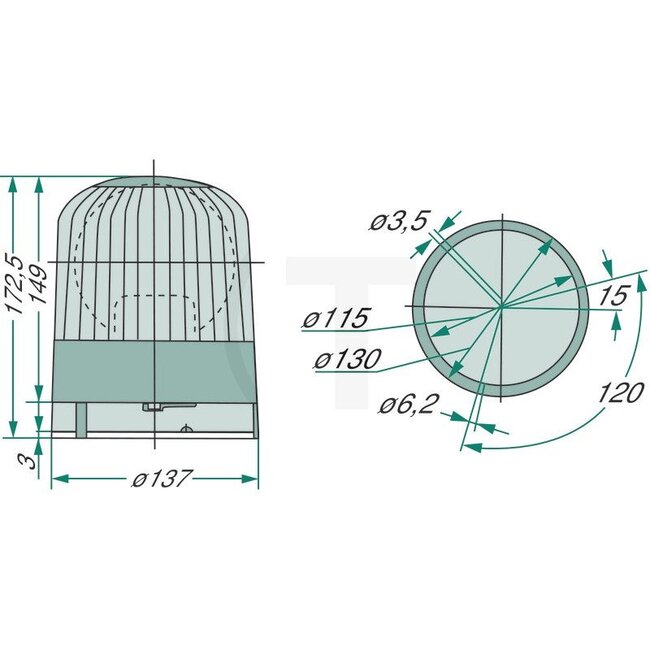

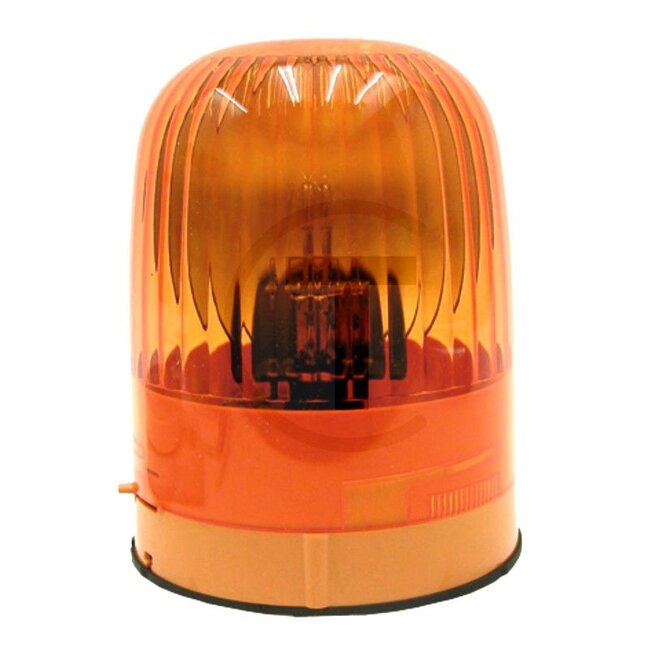

The H1 KL Junior beacon has a nominal voltage of 24 V and includes the bulb. Its light function is rotating, with a diameter of 137 mm and a total height of 173 mm. The colour is yellow and it is mounted by attachment. It features a blade terminal connection, an H1 halogen bulb and a power consumption of 70 W. The protection class is IP 5K4K, IP X9K. Suitable for Still.
Reference numbers:2RL 007 550-011, 0629031
R20 15-20 (2008-2014), R50 10-16 (5041-5044), R, R07-20H BW (0733), R20, R20-14 (2017-2024), R20-14, R20-15, R20-16, R20-18, R20-20, R20-15 (2008, 2009, 2010, 2014), R20-15 (2017-2024), R20-15i (2015i), R20-15i (2045-2049), R20-16 (2008, 2009, 2010, 2014), R20-16 (2017-2024), R20-16i (2045-2049), R20-18 (2008, 2009, 2010, 2014), R20-18 (2017-2024), R20-18i (2045-2049), R20-20 (2008, 2009, 2010, 2014), R20-20 (2017-2024), R20-20i (2045-2049), R50, R50-10 (5041-5044), R50-12 (5041-5044), R50-15 (5041-5044), R50-16 (5041-5044), R60, R60-16 (6030-6032), R60-16 (6050-6052), R60-16i (6033-6035), R60-16i (6053-6055), R60-18 (6030-6032), R60-18 (6050-6052), R60-18i (6033-6035), R60-18i (6053-6055), R60-20 (6012, 6013), R60-20 (6022-6025), R60-20 compact (6030-6032), R60-20 compact (6050-6052), R60-20i compact (6033-6035), R60-20i compact (6053-6055), R60-22 (6036-6039), R60-22 (6042-6045), R60-25 (6012, 6013), R60-25 (6022-6025), R60-25 (6036-6039), R60-25 (6042-6045), R60-30 (6022-6025), R60-30 (6042-6045), R60-35 (6015, 6016), R60-35 (6026-6029), R60-35 (6046-6049), R60-40 (6015, 6016), R60-40 (6026-6029), R60-40 (6046-6049), R60-45 (6026-6029), R60-45 (6046-6049), R60-50 (6026-6029), R60-50 (6046-6049), R70, R70-16 (7052D, 7056D), R70-16 compact (7074D-7076D), R70-16CT (7097-7099), R70-16D (7094-7096), R70-16T compact (7077-7079), R70-18 (7052D, 7056D), R70-18 compact (7074D-7076D), R70-18CT (7097-7099), R70-18D (7094-7096), R70-18T compact (7077-7079), R70-20 (7062-7064), R70-20 compact (7074D-7076D), R70-20CD (7094-7096), R70-20CT (7097-7099), R70-20i (7065i-7067i ASM), R70-20T (7068-7070), R70-20T compact (7077-7079), R70-25 (7062-7064), R70-25i (7065i-7067i ASM), R70-25T (7068-7070), R70-30 (7062-7064), R70-30i (7065i-7067i ASM), R70-30T (7068-7070), R70-35 (7041-7043), R70-35 (7048-7050 EMR), R70-35T (7084T-7086T), R70-40 (7041-7043), R70-40 (7048-7050 EMR), R70-40T (7084T-7086T), R70-45 (7041-7043), R70-45 (7048-7050 EMR), R70-45T (7084T-7086T), R70-60 (7087-7089), R70-70 (7087-7089), R70-80 (7087-7089), RX20, RX20-14 (6210-6217), RX20-15 (6210-6217), RX20-16 (6210-6217), RX20-18 (6210-6217), RX20-20 (6210-6217), RX50, RX50-10 (5051-5055), RX50-13 (5051-5055), RX50-15 (5051-5055), RX50-16 (5051-5055), RX60, RX60-16 6311, 6313, 6315), RX60-18 (6311, 6313, 6315), RX60-20 (6311, 6313, 6315), RX60-25 (6321-6325), RX60-25 (6345-6348, 6353-6356), RX60-25/600 (6321-6325), RX60-25/600 (6345-6348, 6353-6356), RX60-25L/600 (6321-6325), RX60-25L/600 (6345-6348, 6353-6356), RX60-30 (6321-6325), RX60-30 (6345-6348, 6353-6356), RX60-30/600 (6321-6325), RX60-30/600 (6345-6348, 6353-6356), RX60-30L/600 (6321-6325), RX60-30L/600 (6345-6348, 6353-6356), RX60-35 (6321-6325), RX60-35 (6345-6348, 6353-6356), RX60-40 (6327-6329), RX60-45 (6327-6329), RX60-50 (6327-6329), RX60-50/600 (6327-6329), XE, XE-35, XE-40, XE-45, XE-50
| Article number | 4552RL 007550011 |
|---|---|
| EAN | 4082300069709 |
| Weight | 600 g |
| Nominal voltage | 24 V |
| Bulbs included | Yes |
| Light function | Rotating |
| Diameter | 137 mm |
| Total height | 173 mm |
| Connection | Blade terminal |
| Protection class | IP 5K4K, IP X9K |
| Colour | Yellow |
| Outer Ø | 137 mm |
| Bulb | H1 |
| Voltage | 21.6 - 27.6 V |
| Type | KL Junior |
| Current requirement | 3,5 A |
| Test mark | E4 6514, (ECE-R65), e1 2182 |
| Power consumption | 70 W |
| Type | Halogen |
| Mounting type | Mounting |
| Housing colour | Yellow |
