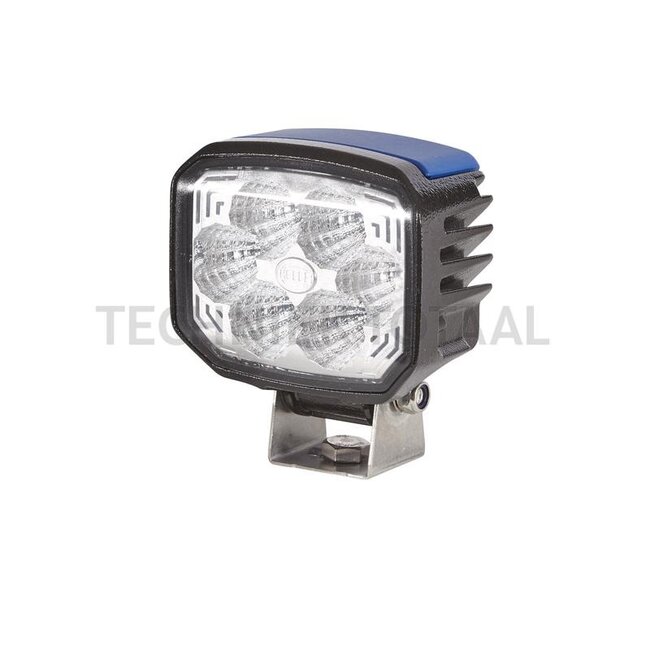

HELLA LED work light
Replaces: 1GA 996 188-031
Technical data:
- Type: Power Beam 1000
- Bulbs included: Yes
- Cable length (mm): 2000
- Test mark: ADR/GGVS tested
- Connection: AMP plug/DEUTSCH plug
- No. of LEDs: 6
- Number of pins: 2
- Eligible: Environmental protection and safety (formerly de minimis)
- Bulb: LED
- Light aperture (mm): 100 x 80
- Additional information: • Without vibration damper • Without tube • Transparent diffusing lens
- Effective luminous flux (lm): ≈ 850
- Material: Housing: aluminium, lens: plastic
- Housing colour: Black, rear housing cover blue
- Light function: Close-range illumination
- Mounting type: Vertical
- Dimensions W x H x D (mm): 112 x 129 x 62
- Nominal voltage (V): 12 / 24
- Light colour (K): 5700
- Protection class: IP6K7 / IP6K9K
- Form: Square
- Power consumption (W): 18
