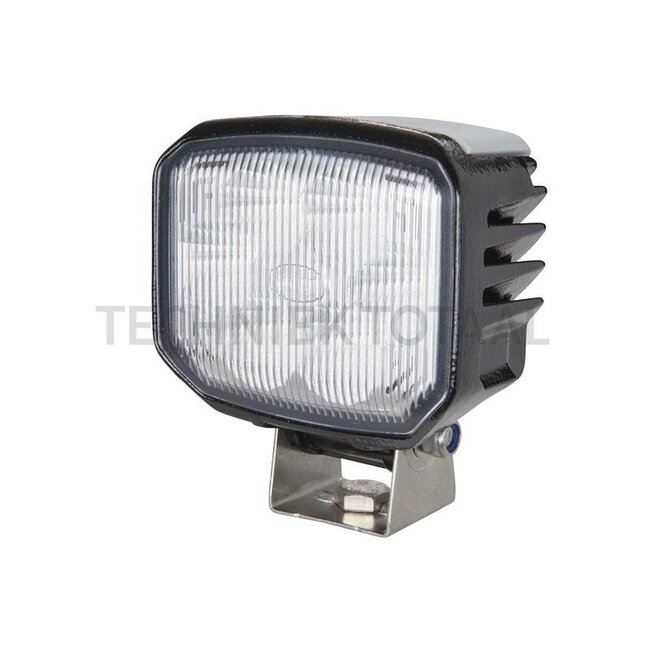

HELLA LED work light
Replaces: 1GA 996 288-012
Technical data:
- Voltage range (V): 9 - 33
- Effective luminous flux (lm): ≈ 1500
- Power consumption (W): 22
- Eligible: De minimis
- Connection: DEUTSCH plug
- No. of LEDs: 6
- Form: Square
- Additional information: • With cooling fins and thermal sensors • With bracket • Without cable set • Without vibration damper • With overheating protection • With overvoltage protection
- Housing colour: Black
- Mounting type: Vertical
- Bulbs included: Yes
- Type: Power Beam 1500
- Light function: Close-range illumination
- Light aperture (mm): 100 x 80

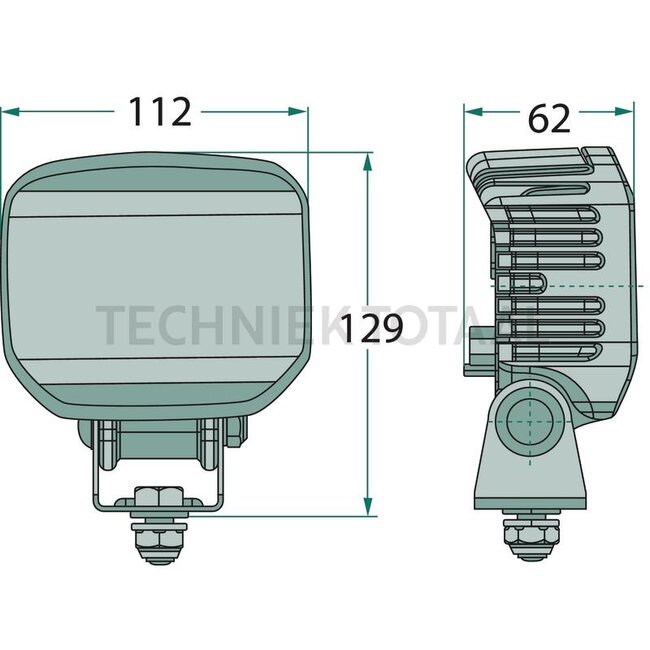

- Dimensions W x H x D (mm): 112 x 129 x 62
- Test mark: ADR/GGVS tested, ECE R10
- Protection class: IP67/IP6K9K
- Material: Housing: aluminium, lens: plastic
- Operating temperature (°C): -40 / +50
- Bulb: LED
- Nominal voltage (V): 12 / 24
- Current (A): 1,8 (12 V) / 0,9 (24 V)
