Up to 20% spring discount!

Get up to 20% discount now on all parts, consumables, tools and fasteners.

HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
€537,36 €510,81 Incl. VAT
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
HELLA
(0)
-5%
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
-5%
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
-5%
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti
HELLA
0 reviews

HELLA Luminator LED, Chromium, Ref. 25 - 4550020042, 20042 | Nominal voltage: 12 / 24 V | Bulb: LED | Light function: Full beam (LED), position light (LED) | Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm | Mounting type: Attachment | Connection: 3-pin connecti

€537,36
€510,81 Incl. VAT
In stock
€422,16 Excl. VAT

Nominal voltage: 12 / 24 V. Bulb: LED. Light function: Full beam (LED), position light (LED). Dimensions W x H x D: 224,4 x 232,5 x 129,6 mm. Mounting type: Attachment. Connection: 3-pin connection cable. Material: Housing: die-cast zinc. Colour: Lens: tr Read more.

Add to comparison
  • 50.000+ technical products
  • Worldwide shipping*
  • 30-day return policy
  • Rating 4.7/5 (420 reviews)


Product description

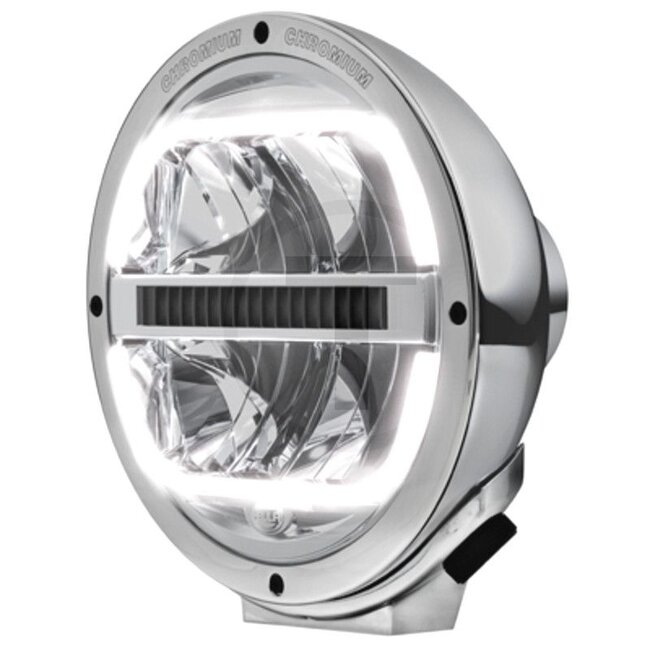

Luminator LED, Chromium, Ref. 25

  • Nominal voltage (V): 12 / 24
  • Bulb: LED
  • Light function: Full beam (LED), position light (LED)

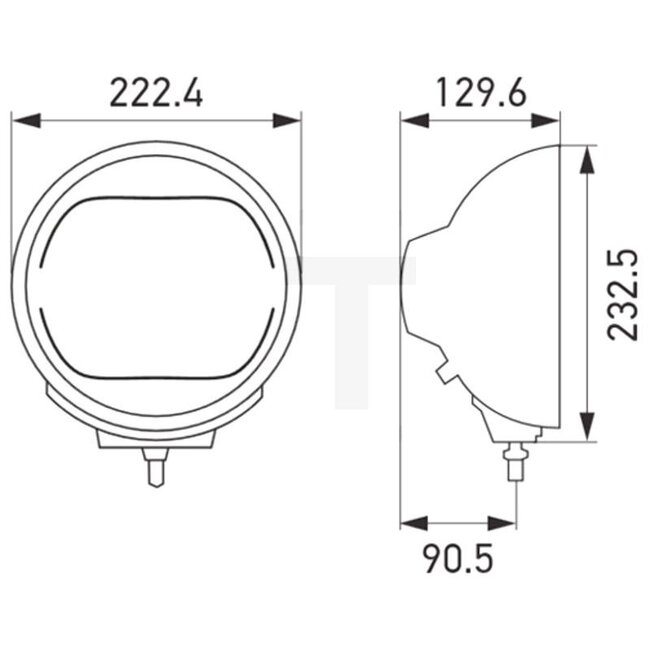

  • Dimensions W x H x D (mm): 224,4 x 232,5 x 129,6
  • Mounting type: Attachment
  • Connection: 3-pin connection cable
  • Material: Housing: die-cast zinc
  • Colour: Lens: transparent/clear
  • Width (mm): 224,4
  • Form: Round
  • Height (mm): 232,5
  • Technical data: Reference number: 25
  • Depth (mm): 129,6
  • Fixing: Vertical
  • Protection class: IP6K7, IPX9K
  • Type: Luminator
  • Cable length (mm): 800
  • Test mark: ECE-R10, ECE-R112.01, ECE-R7, EMC, EMC
  • Type: LED
  • Housing colour: Chrome
  • Diameter (mm): 224,4

    • Further information

    Article number
    4550020042
    EAN Code
    4082300768886
